Armrest, centre console for BMW 7 Series F02 LCI 740Li (2015)

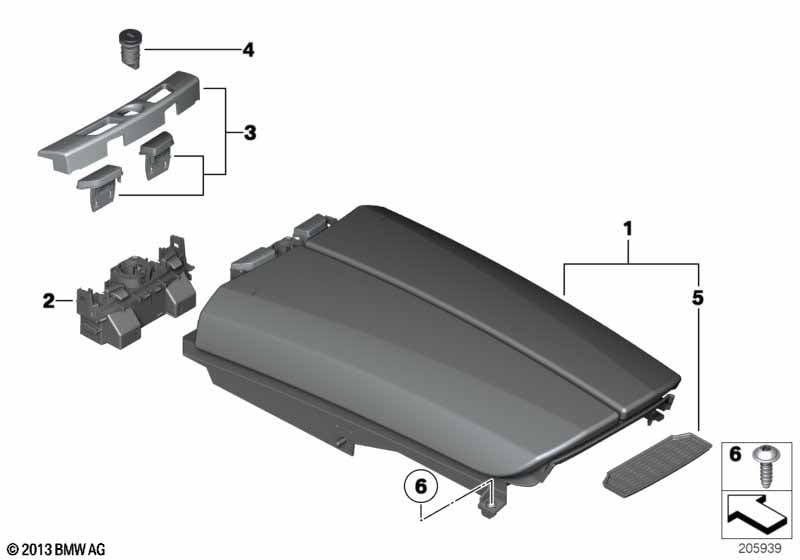

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Nappa expanded/veneto-beige |
NADF=Yes |
|||||||||
| 01 | Armrest, front center | VENETOBEIGE | 1 | 07/2012 | 51169273483 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nappa/sattel-braun" |
NAD5=Yes |
|||||||||
| 01 | Armrest in leather, front center | SATTELBRAUN | 1 | 51169173165 | $1047.92 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nappa/black" |
NASW=Yes |
|||||||||
| 01 | Armrest in leather, front center | SCHWARZ | 1 | 51169171267 | $1047.92 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nappa/elfenbein-weiss" |
NAEW=Yes |
|||||||||
| 01 | Armrest, front center | ELFENBEINWEISS | 1 | 07/2012 | 51169273490 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/barrique-rot" |
LCDK=Yes |
|||||||||
| 01 | Armrest, front center | BARRIQUEROT | 1 | 51169173164 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/veneto-beige" |
LCDF=Yes |
|||||||||
| 01 | Armrest, front center | VENETOBEIGE | 1 | 51169171264 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/elfenbein-weiss" |
LCEW=Yes |
|||||||||
| 01 | Armrest, front center | ELFENBEINWEISS | 1 | 07/2012 | 51169273480 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/sattel-braun light" |
LCD5=Yes |
|||||||||
| 01 | Armrest, front center | SATTELBRAUN | 1 | 51169173163 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Nappa/oyster" or Leather "Nappa/oyster" |
NACX=Yes NADH=Yes |
|||||||||
| 01 | Armrest in leather, front center | OYSTER | 1 | 51169171268 | $1047.92 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/oyster" or Leather "Dakota/oyster/oyster" |
LCCX=Yes LCDH=Yes |
|||||||||
| 01 | Armrest, front center | OYSTER | 1 | 51169171266 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Tudor/anthrazit" or Leather "Dakota"/schwarz |
ARAT=Yes LCSW=Yes |
|||||||||
| 01 | Armrest, front center | SCHWARZ | 1 | 51169171263 | Shop at ECS Tuning | |||||
| 02 | Locking mechanism for armrest | 1 | 51169179832 | $37.00 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rep.kit f lock cylinder | 1 | 51169202265 | $90.17 | Shop at ECS Tuning | |||||
| 03 | Locking kit | 1 | 51169210430 | $51.48 | Shop at ECS Tuning | |||||
| 04 | Rep.kit f lock cylinder | 1 | 51169202265 | $90.17 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Locking mechanism for armrest | 1 | 51169179832 | $37.00 | Shop at ECS Tuning | |||||
| 05 | Stowage compart. rubber, centre console | 1 | 51169173901 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | 4X12MM | 2 | 07147122390 | $0.25 | Shop at ECS Tuning | ||||
