Trim panel, trunk floor for BMW 7 Series F02 LCI 740Li (2015)

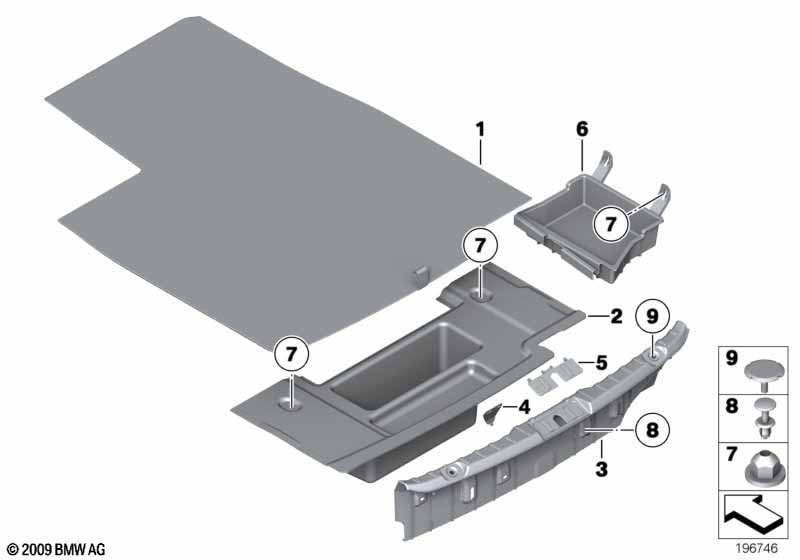

This Trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor carpet, luggage compartment | 1 | 51479113345 | $308.54 | +core | Shop at ECS Tuning | ||||
| For vehicles with Expanded rear climate control and Coolbox |
S4NFA=Yes S791A=No |
|||||||||
| 01 | Floor carpet, luggage compartment | 1 | 51479144478 | +core | Shop at ECS Tuning | |||||
| For vehicles with Expanded rear climate control and Coolbox |
S4NFA=No S791A=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | 1 | 51477903906 | Shop at ECS Tuning | ||||||
| For vehicles with Expanded rear climate control and Coolbox |
S4NFA=Yes S791A=Yes |
|||||||||
| 01 | Floor carpet, luggage compartment | 1 | 51477903907 | Shop at ECS Tuning | ||||||
| 02 | Luggage comp.indentation trim panel | 1 | 07/2012 | 51477311100 | +core | Shop at ECS Tuning | ||||
| 03 | Loading sill cover | 1 | 51479113340 | $69.78 | +core | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 51479155928 | $32.62 | +core | Shop at ECS Tuning | ||||
| 05 | Lock panel | 1 | 51479138809 | $41.51 | +core | Shop at ECS Tuning | ||||
| For vehicles with Integral active steering |
S2VHA=No |
|||||||||
| 06 | Storage compartment, right | 1 | 51479116152 | $25.46 | +core | Shop at ECS Tuning | ||||
| 07 | Plastic nut, black | M5 | 4 | 07147221224 | $0.18 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | 4 | 51498237075 | $0.52 | Shop at ECS Tuning | |||||
| 09 | Stop plate | 2 | 51247217155 | $9.68 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
