Glazing for BMW Z4 E89 20i

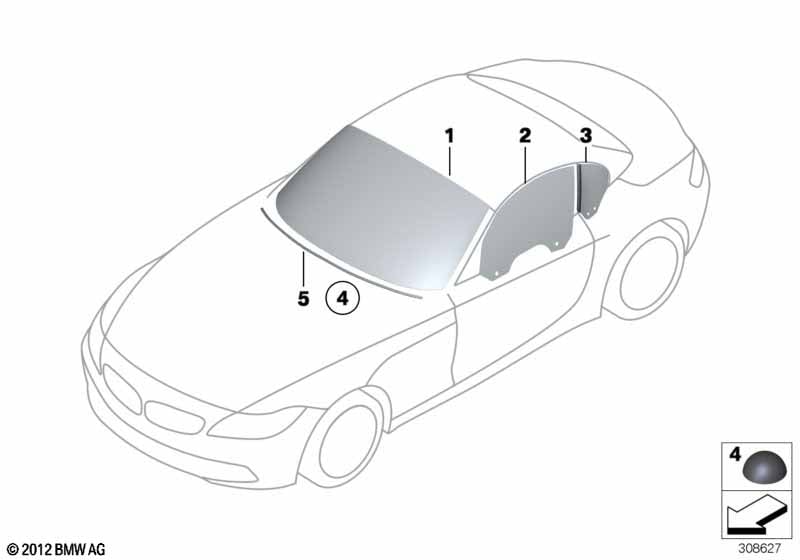

This Glazing technical drawing provides a detailed breakdown of the assembly for the Z4 E89 20i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Use seat condensation sensor on vehicles with automatic climate control. |
|||||||||
| For vehicles with Windshield with grey wedge and Rain sensor |
S3APA=No S521A=Yes |
|||||||||
| 01 | Green windshield, rain sensor | RS | 1 | 51317224171 | $430.55 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Bump stop | 7 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Windshield with grey wedge and Rain sensor |
L8AAA=No S3APA=No S521A=No |
|||||||||
| 01 | Green windshield | 1 | 51317207474 | $391.47 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Bump stop | 7 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with Windshield with grey wedge and Rain sensor and TV function and Navigation system Professional and Preparation f tel.installation universal and DAB tuner and Radio BMW Professional and Teleservices |
S3APA=Yes S521A=Yes S601A=Yes S609A=Yes S640A=Yes S654A=Yes S663A=Yes S6AEA=Yes |
|||||||||
| 01 | Green windscrn,gr.shade band+rain sensor | RS | 1 | 51317224167 | $473.76 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Bump stop | 7 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| For vehicles with Windshield with grey wedge and Rain sensor and TV function and Navigation system Professional and Preparation, mobile phone, Business and Preparation f tel.installation universal and DAB tuner and Radio BMW Professional |
S3APA=Yes S521A=No S601A=Yes S609A=Yes S633A=Yes S640A=Yes S654A=Yes S663A=Yes |
|||||||||
| 01 | Green windshield, grey schade band | 1 | 51317207478 | $430.55 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Bump stop | 7 | 51317288462 | Shop at ECS Tuning | ||||||
| -- | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | Shop at ECS Tuning | |||||
| 02 | Door window, front left | 1 | 51337198299 | $148.39 | Shop at ECS Tuning | |||||
| 02 | Door window, right | 1 | 51337198300 | $148.39 | Shop at ECS Tuning | |||||
| 03 | Side window, rear left | 1 | 51377192301 | $102.14 | Shop at ECS Tuning | |||||
| 03 | Side window, rear right | 1 | 51377192302 | $77.84 | Shop at ECS Tuning | |||||
| 04 | Bump stop | 7 | 04/2013 | 51317288462 | Shop at ECS Tuning | |||||
| Windshield installation | ||||||||||
| 04 | Rubber buffer | D = 11.1 | 5 | 04/2013 | 51311925433 | $1.10 | Shop at ECS Tuning | |||
| 05 | Sound insulation windshield | 1418X15MM | 1 | 51487941312 | NoS | Shop at ECS Tuning | ||||
