M Outside mirror for BMW 5 Series F90 M5 M5

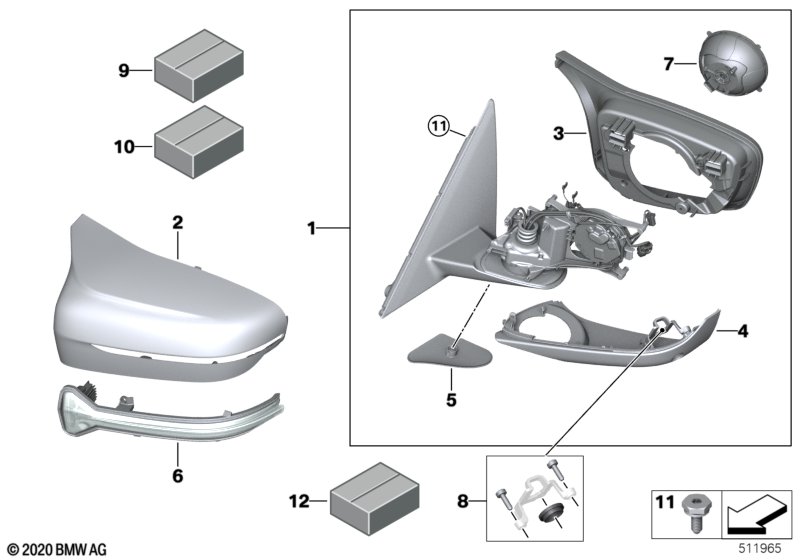

This M Outside mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series F90 M5 M5. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Driving Assistant and Driving Assistant Plus and Driving assistant professional and Parking assistance system Plus |
S5ASA=No S5ATA=No S5AUA=No S5DNA=Yes |
|||||||||
| 01 | M outside mirror w/o lens, heated, left | 1 | 51168071169 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | M outside mirror w/o lens, heated, right | 1 | 51168071170 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Driving assistant professional and Parking assistance system Plus |
S5ASA=No S5ATA=No S5AUA=No S5DNA=No |
|||||||||
| 01 | M outside mirror w/o lens, heated, left | 1 | 51168071161 | Shop at ECS Tuning | ||||||
| 01 | M outside mirror w/o lens, heated, right | 1 | 51168071162 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Driving assistant professional and Parking assistance system Plus |
S5ASA=Yes S5ATA=Yes S5AUA=Yes S5DNA=No |
|||||||||
| 01 | M outside mirror w/o lens, heated, left | 1 | 51168071165 | Shop at ECS Tuning | ||||||
| 01 | M outside mirror w/o lens, heated, right | 1 | 51168071166 | Shop at ECS Tuning | ||||||
| For vehicles with Driving Assistant and Driving Assistant Plus and Driving assistant professional and Parking assistance system Plus |
S5ASA=Yes S5ATA=Yes S5AUA=Yes S5DNA=Yes |
|||||||||
| 01 | M outside mirror w/o lens, heated, left | 1 | 51168071173 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 01 | M outside mirror w/o lens, heated, right | 1 | 51168071174 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| 02 | Cover cap, primed, left | M | 1 | 51168073273 | Shop at ECS Tuning | |||||
| 02 | Cover cap, primed, right | M | 1 | 51168073274 | Shop at ECS Tuning | |||||
| 03 | Supporting ring left | M | 1 | 51168064655 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 03 | Supporting ring right | M | 1 | 51168064656 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=No |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51167418817 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51167418818 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair kit exterior rearview mirror | 1 | 51167460316 | Shop at ECS Tuning | ||||||
| For vehicles with Parking assistance system Plus |
S5DNA=Yes |
|||||||||
| 04 | Housing lower section, left | SHADOW-LINE | 1 | 51165A1C7E3 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 04 | Housing lower section, right | SHADOW-LINE | 1 | 51165A1C7E4 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| -- | Repair kit exterior rearview mirror | 1 | 51167460316 | Shop at ECS Tuning | ||||||
| 05 | Set of mirror base caps | SHADOW-LINE | 1 | 51168496289 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 06 | Turn signal lamp ex.rearview mirror left | 1 | 51167414649 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| 06 | Turn signal lamp ex.rearview mirror ri. | 1 | 51167414650 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 07 | Drive, outside Memory mirror | 2 | 67137337847 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 08 | Set of camera mounts for exterior mirror | 1 | 51167444264 | Shop at ECS Tuning | ||||||
| 09 | Set of screws | 1 | 51167444266 | Shop at ECS Tuning | ||||||
| 10 | Repair kit exterior rearview mirror | 1 | 51167460316 | Shop at ECS Tuning | ||||||
| 11 | Torx screw, self-threading | M6X17 | 6 | 07149231823 | Shop at ECS Tuning | |||||
| 12 | Repair kit cable exterior mirror | 1 | 61359853372 | Shop at ECS Tuning | ||||||
