Covers for interior rearview mirror for BMW 7 Series F02 730Ld (2012)

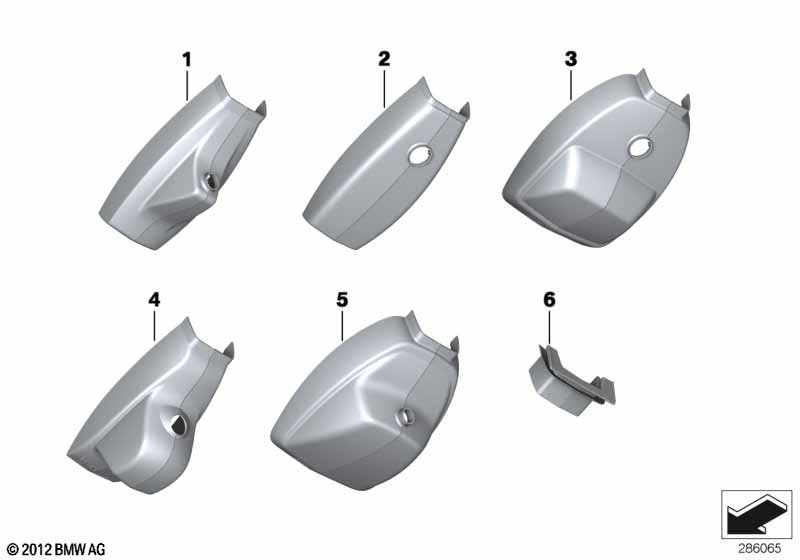

This Covers for interior rearview mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Ld. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles produced to 07/01/2012 |
|||||||||
| For vehicles with High-beam assistant and Lane departure warning and Road sign detection |
S5ACA=No S5ADA=No S8THA=No |
|||||||||
| 01 | Set of covers mirror baseplate | BLACK | 1 | 51169177321 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Lane departure warning and Road sign detection |
L807A=Yes S5ADA=No S8THA=No |
|||||||||
| 02 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169177322 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Lane departure warning and Road sign detection |
L807A=Yes S5ADA=Yes S8THA=Yes |
|||||||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169177323 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Lane departure warning and Road sign detection |
L807A=Yes S5ADA=Yes S8THA=No |
|||||||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169177323 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Lane departure warning and Road sign detection |
L807A=Yes S5ADA=No S8THA=Yes |
|||||||||
| 03 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169177323 | Shop at ECS Tuning | |||||
| For vehicles with High-beam assistant and Lane departure warning and Road sign detection |
S5ACA=Yes S5ADA=No S8THA=No |
|||||||||
| 04 | Set of covers mirror baseplate | BLACK | 1 | 51169177206 | Shop at ECS Tuning | |||||
| For vehicles with Lane departure warning or Road sign detection |
S5ADA=Yes S8THA=Yes |
|||||||||
| 05 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169177204 | $10.99 | Shop at ECS Tuning | ||||
| 06 | Cable duct | 1 | 51169161906 | Shop at ECS Tuning | ||||||
