Carrier, rear for BMW Z4 E89 20i

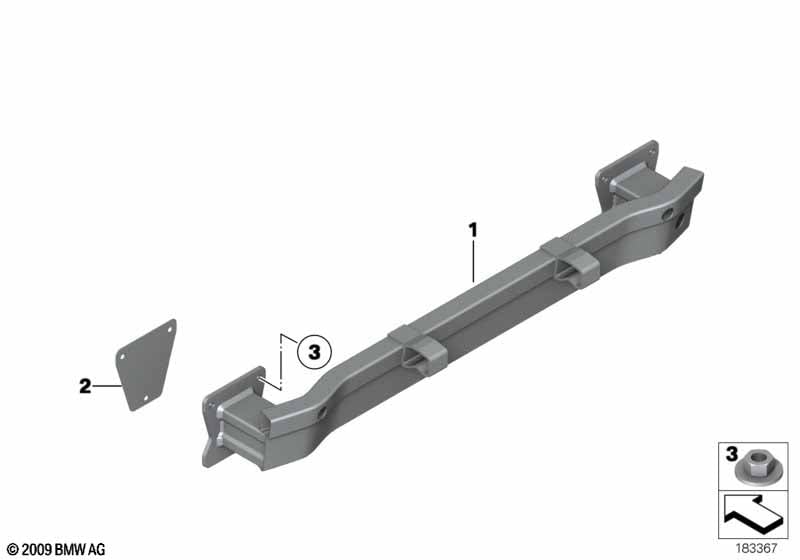

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the Z4 E89 20i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper rear | 1 | 51127210766 | Shop at ECS Tuning | ||||||
| 02 | Washer-gasket | 2 | 51127172542 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW Z4 E89 20i Carrier, rear?
- This technical diagram illustrates the Carrier, rear within the Vehicle trim group for the Z4 E89 20i. It provides a detailed exploded view of the components, identifying key parts such as the Carrier, bumper rear (Part #51127210766).
- Which models use the hardware listed in this Carrier, rear?
- The hardware and components featured in the Carrier, rear are specific to the Z4 E89 20i. These technical specifications ensure that parts like the Carrier, bumper rear (51127210766) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carrier, rear assembly?
- Each item in the Carrier, rear corresponds to the numbered list below the illustration. For the Z4 E89 20i, you can identify the Carrier, bumper rear by locating its position on the schematic, which then links to the official BMW part number 51127210766 for the Vehicle trim section.
