Trim, decor elements, rear for BMW Z4 E89 20i

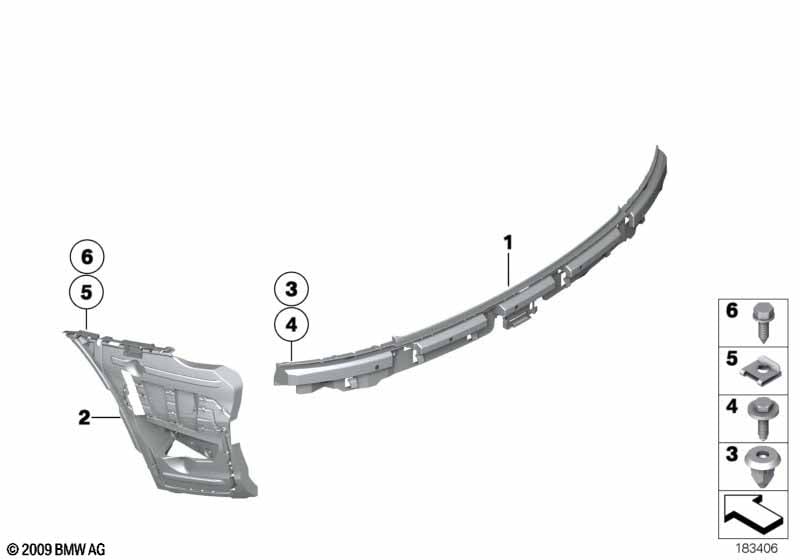

This Trim, decor elements, rear technical drawing provides a detailed breakdown of the assembly for the Z4 E89 20i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide, center rear | 1 | 51127192042 | $17.35 | Shop at ECS Tuning | |||||
| 02 | Guide left | 1 | 51127192043 | $45.57 | Shop at ECS Tuning | |||||
| 02 | Guide right | 1 | 51127192044 | $45.57 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Guide left | -M- | 1 | 51127903757 | Shop at ECS Tuning | |||||
| 02 | Guide right | -M- | 1 | 51127903758 | Shop at ECS Tuning | |||||
| 03 | Expanding nut | 6 | 51127046911 | $0.48 | Shop at ECS Tuning | |||||
| 04 | Screw | SECHSKANT | 6 | 07143428231 | $0.36 | Shop at ECS Tuning | ||||
| 05 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 05 | C-clip nut, self-locking | TS5 | X | 07147330004 | Shop at ECS Tuning | |||||
| 06 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
