Door window lifting mechanism rear for BMW Z4 E89 20i

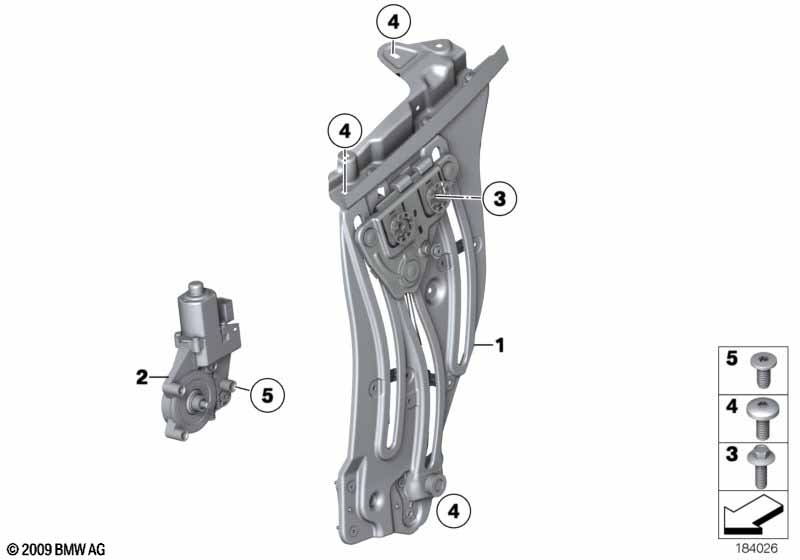

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the Z4 E89 20i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter rear left | 1 | 51377198307 | $261.57 | Shop at ECS Tuning | |||||
| 01 | Window lifter rear right | 1 | 51377198308 | $261.57 | Shop at ECS Tuning | |||||
| 02 | Drive for window lifter, left | 1 | 67627046033 | $147.05 | Shop at ECS Tuning | |||||
| 02 | Drive for window lifter, front right | 1 | 67627046034 | $147.05 | Shop at ECS Tuning | |||||
| 03 | Hexagon screw with flange | M8 | 4 | 07146958243 | $1.18 | Shop at ECS Tuning | ||||
| 04 | Torx-bolt with washer | M6X12 | X | 51219130334 | $0.39 | Shop at ECS Tuning | ||||
| 05 | Torx bolt | M6X12 | 6 | 07147154224 | $0.32 | Shop at ECS Tuning |
