Trim panel dashboard for BMW 6 Series G32 GT 620d (2020)

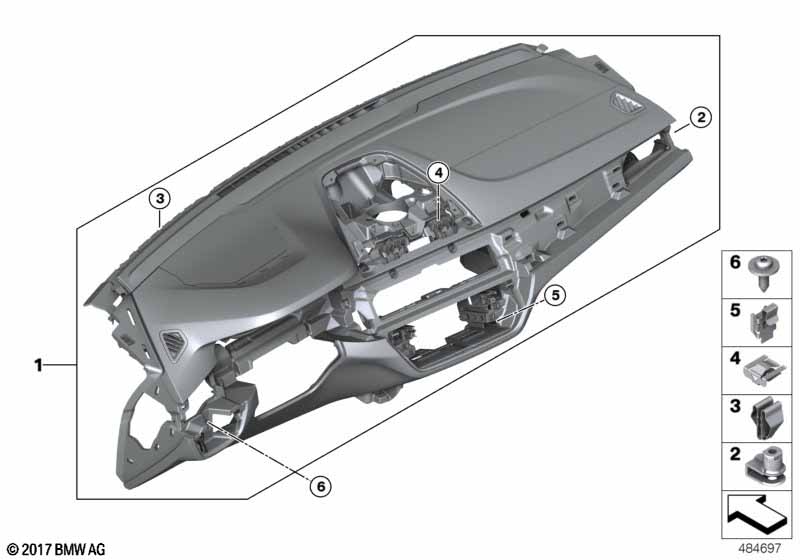

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Mocca/exclusive seam/welt in contrast |
S4AWA=No S610A=No NI=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/MOKKA | 1 | 51457944629 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Mocca/exclusive seam/welt in contrast |
S4AWA=Yes S610A=Yes NI=Yes |
|||||||||
| 01 | Dashboard Sensatec Head-Up Display | SCHWARZ/MOKKA | 1 | 51457944671 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Ivory-white exclusive n./welt contrast |
S4AWA=Yes S610A=Yes FI=Yes |
|||||||||
| 01 | Dashboard Sensatec Head-Up Display | SCHWARZ/WEISS | 1 | 51457944669 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Ivory-white exclusive seam/welt |
S4AWA=Yes S610A=No FF=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | DK COFEE/WEISS | 1 | 51457944675 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Mocca/exclusive seam/welt in contrast |
S4AWA=No S610A=Yes NI=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/MOKKA | 1 | 51457944649 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Ivory-white exclusive seam/welt |
S4AWA=Yes S610A=Yes FF=Yes |
|||||||||
| 01 | Dashboard Sensatec Head-Up Display | DK COFFEE/WEISS | 1 | 51457944668 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Ivory-white exclusive n./welt contrast |
S4AWA=Yes S610A=No FI=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/WEISS | 1 | 51457944676 | NoS | Shop at ECS Tuning | ||||
| Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Mocca/exclusive seam/welt in contrast |
S4AWA=Yes S610A=No NI=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/MOKKA | 1 | 51457944678 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and cognac or Cognac exclusive seam/welt contrast |
S4AWA=No S610A=No RI=Yes RO=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/COGNAC | 1 | 51457944631 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and cognac or Cognac exclusive seam/welt contrast |
S4AWA=No S610A=Yes RI=Yes RO=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/COGNAC | 1 | 51457944651 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and cognac or Cognac exclusive seam/welt contrast |
S4AWA=Yes S610A=Yes RI=Yes RO=Yes |
|||||||||
| 01 | Dashboard Sensatec Head-Up Display | SCHWARZ/COGNAC | 1 | 51457944672 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and canberra-beige or canberrabeige Exklusivnaht/Keder |
S4AWA=No S610A=No CY=Yes DO=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/BEIGE | 1 | 51457944624 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and canberra-beige or canberrabeige Exklusivnaht/Keder |
S4AWA=No S610A=Yes CY=Yes DO=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/BEIGE | 1 | 51457944644 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
S4AWA=No S610A=Yes FF=Yes FI=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/WEISS | 1 | 51457944646 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
S4AWA=No S610A=No FF=Yes FI=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/WEISS | 1 | 51457944626 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and canberra-beige or canberrabeige Exklusivnaht/Keder |
S4AWA=Yes S610A=No CY=Yes DO=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/BEIGE | 1 | 51457944674 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and cognac or Cognac exclusive seam/welt contrast |
S4AWA=Yes S610A=No RI=Yes RO=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/COGNAC | 1 | 51457944679 | Shop at ECS Tuning | |||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and canberra-beige or canberrabeige Exklusivnaht/Keder |
S4AWA=Yes S610A=Yes CY=Yes DO=Yes |
|||||||||
| 01 | Dashboard Sensatec Head-Up Display | SCHWARZ/BEIGE | 1 | 51457944667 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Black exclusive seam/welt contras or black / blue or Black |
S4AWA=No S610A=Yes FK=Yes NL=Yes SW=Yes |
|||||||||
| 01 | Instrument panel HeadUp Display | SCHWARZ/SCHWARZ | 1 | 51457944652 | Shop at ECS Tuning | |||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Black exclusive seam/welt contras or black / blue or Black |
S4AWA=Yes S610A=Yes FK=Yes NL=Yes SW=Yes |
|||||||||
| 01 | Dashboard Sensatec Head-Up Display | SCHWARZ/SCHWARZ | 1 | 51457944673 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Black exclusive seam/welt contras or black / blue or Black |
S4AWA=Yes S610A=No FK=Yes NL=Yes SW=Yes |
|||||||||
| 01 | Instrument panel 'Sensatec' | SCHWARZ/SCHWARZ | 1 | 51457944680 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| For vehicles with Instrument panel 'Sensatec' and Head-up display and Black exclusive seam/welt contras or black / blue or Black |
S4AWA=No S610A=No FK=Yes NL=Yes SW=Yes |
|||||||||
| 01 | Instrument panel | SCHWARZ/SCHWARZ | 1 | 51457944632 | NoS | Shop at ECS Tuning | ||||
| including cover panels for window defroster Including glove compartment without cold-air duct Without support Centerspeaker Without storage compartment driver's side |
||||||||||
| 02 | C-clip for plastic nut | 13 | 07149200938 | Shop at ECS Tuning | ||||||
| 03 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 04 | Spring clip | 2 | 07149236757 | Shop at ECS Tuning | ||||||
| 05 | Clamp | 4 | 07149213384 | $1.38 | Shop at ECS Tuning | |||||
| 06 | Combi. fillister head self-tapping screw | 16 | 07149323312 | NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
