Mounting parts, I-panel, bottom for BMW 6 Series G32 GT 630i (2020)

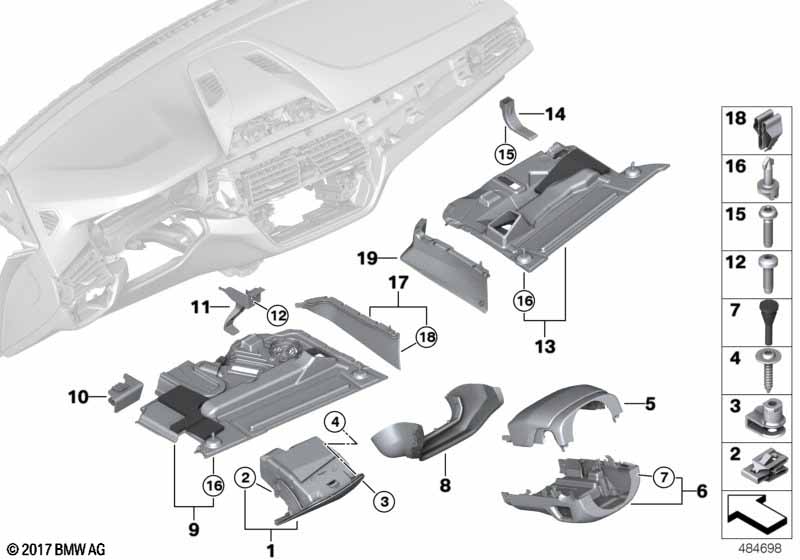

This Mounting parts, I-panel, bottom technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oddments tray, instr.panel driver's side | SCHWARZ | 1 | 51167948716 | Shop at ECS Tuning | |||||
| For vehicles with Mocca/exclusive seam/welt in contrast |
NI=Yes |
|||||||||
| 01 | Oddments tray, instr.panel driver's side | MOKKA | 1 | 51167948720 | Shop at ECS Tuning | |||||
| For vehicles with cognac or Cognac exclusive seam/welt contrast |
RI=Yes RO=Yes |
|||||||||
| 01 | Oddments tray, instr.panel driver's side | COGNAC | 1 | 51167948719 | Shop at ECS Tuning | |||||
| For vehicles with elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
EW=Yes FF=Yes FI=Yes |
|||||||||
| 01 | Oddments tray, instr.panel driver's side | ELFENBEINWEISS | 1 | 51167948718 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 01 | Oddments tray, instr.panel driver's side | CANBERRABEIGE | 1 | 51167948717 | Shop at ECS Tuning | |||||
| 02 | Mounting clip | 2 | 07149365277 | Shop at ECS Tuning | ||||||
| 03 | C-clip for plastic nut | 2 | 07149200938 | Shop at ECS Tuning | ||||||
| 04 | Oval-head screw with washer | DELTA PT4X20 | 2 | 07149185673 | Shop at ECS Tuning | |||||
| 05 | Steering column jacket, top | SCHWARZ | 1 | 51456805426 | Shop at ECS Tuning | |||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=No S4MAA=No |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459329532 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=Yes S4MAA=Yes |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459396453 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=Yes S4MAA=No |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459396453 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=No S4MAA=Yes |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459396453 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=Yes S459A=No S4MAA=No |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459396453 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=Yes S4MAA=Yes |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459396453 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=Yes S4MAA=No |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459396453 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort seat with memory and Seat adjuster, electric, with memory and M multifunction seat |
S456A=No S459A=No S4MAA=Yes |
|||||||||
| 06 | Trim panel, steering column, bottom | 1 | 51459396453 | Shop at ECS Tuning | ||||||
| 07 | Plug steering column shroud | 2 | 51459364864 | Shop at ECS Tuning | ||||||
| 08 | Joint cover, steering column | 1 | 51459354684 | Shop at ECS Tuning | ||||||
| For vehicles with Extra package, EU-specific |
S230A=No |
|||||||||
| 09 | Driver's footwell trim panel | 1 | 51459330850 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Extra package, EU-specific |
L807A=No S230A=Yes |
|||||||||
| 09 | Trim panel, footwell, airbag, driver | 1 | 51459299469 | Shop at ECS Tuning | ||||||
| 11 | Mount, trim, driver footwell, inner | 1 | 51459365037 | Shop at ECS Tuning | ||||||
| 11 | Mount, trim, driver footwell, outer | 1 | 51459370547 | Shop at ECS Tuning | ||||||
| 12 | Oval-head screw, self-tapping | M6X20 | 1 | 07149129752 | Shop at ECS Tuning | |||||
| 14 | Bracket, passenger's footwell trim panel | 1 | 51459365038 | Shop at ECS Tuning | ||||||
| 15 | Screw | 4X16 | 1 | 07129907551 | Shop at ECS Tuning | |||||
| 16 | Screw cap incl.loss prevention device | 4 | 07149393174 | ENDED | Shop at ECS Tuning | |||||
| 16 | Lock | 4 | 51165A260C9 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Securing clip | 4 | 07149321592 | Shop at ECS Tuning | ||||||
| For vehicles with Leather Dakota Canberra beige or Leather 'Dakota' canberrabeige / black |
LCEA=Yes LCFY=Yes |
|||||||||
| 17 | Cover panel tunnel driver's side | CANBERRABEIGE | 1 | 51459363699 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 17 | Cover panel tunnel driver's side | SCHWARZ | 1 | 51459363704 | NoS | Shop at ECS Tuning | ||||
| 18 | Clamp | 1 | 07149325721 | Shop at ECS Tuning | ||||||
| 19 | Cover panel tunnel passenger's side | CANBERRABEIGE | 1 | 51459363705 | NoS | Shop at ECS Tuning | ||||
| 19 | Cover panel tunnel passenger's side | SCHWARZ | 1 | 51459363710 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
