Carrier instrument panel for BMW Z4 E89 20i

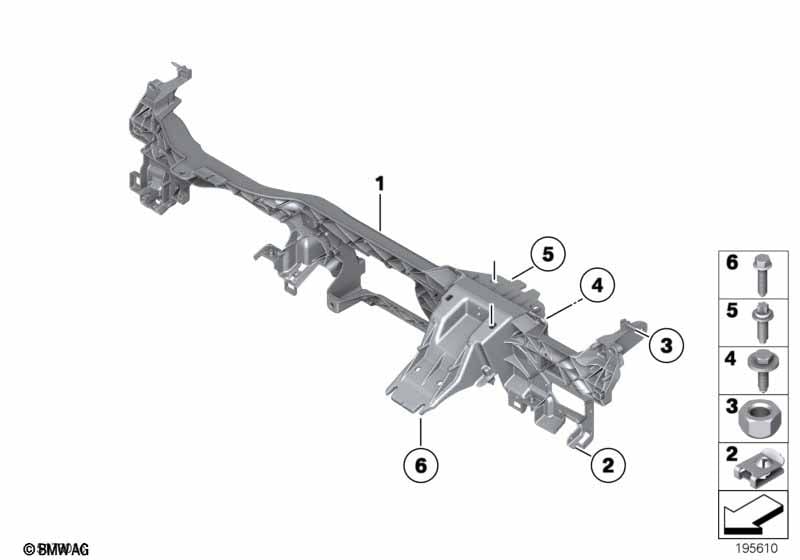

This Carrier instrument panel technical drawing provides a detailed breakdown of the assembly for the Z4 E89 20i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier instrument panel | 1 | 51719141042 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | C-clip nut | 10 | 51457067987 | $0.26 | Shop at ECS Tuning | |||||
| 03 | Hex nut | 1 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 03 | Self-locking hex nut | M8 | 2 | 07149117829 | Shop at ECS Tuning | |||||
| 04 | Allen screw with self-centering tip | M8X28-10.9 | 2 | 07146987886 | $1.09 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M8X28 | 2 | 32306762999 | $0.92 | Shop at ECS Tuning | ||||
| 05 | ASA-Bolt | M8X25 | 2 | 32306783165 | $0.98 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M8X36-8.8-ZNS3 | 2 | 32301094716 | $0.70 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
