Armrest, centre console for BMW 5 Series F07 GT 535dX (2012)

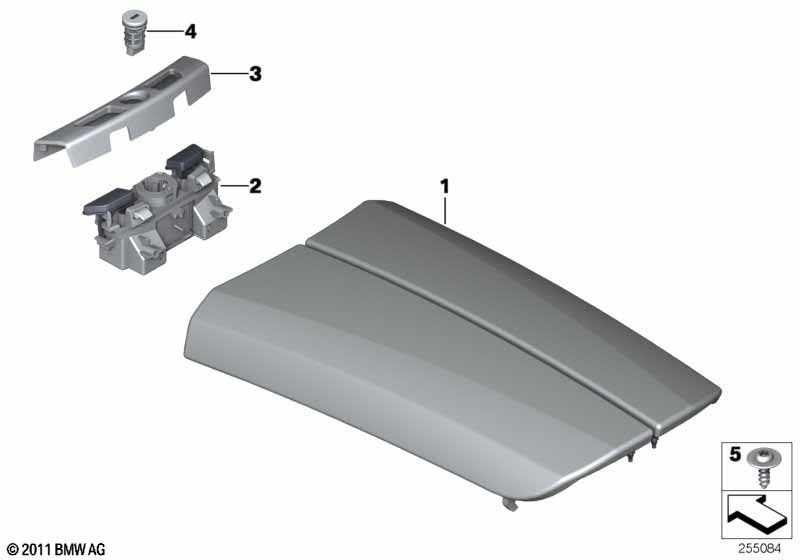

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 5 Series F07 GT 535dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota/veneto-beige" |
LCDF=Yes |
|||||||||
| 01 | Armrest in leather, front center | VENETOBEIGE | 1 | 51169198902 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 01 | Armrest in leather, front center | ZIMTBRAUN | 1 | 51169198904 | Shop at ECS Tuning | |||||
| For vehicles with Fabric 'Gray Shadow/anthracite' |
AZAT=Yes |
|||||||||
| 01 | Armrest in Alcantara, front center | ANTHRAZIT | 1 | 51168051468 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nappa/elfenbein-weiss" |
NAEW=Yes |
|||||||||
| 01 | Armrest in leather, front center | ELFENBEINWEISS | 1 | 51169187513 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Nappa/black" |
NASW=Yes |
|||||||||
| 01 | Armrest in leather, front center | SCHWARZ | 1 | 51169187512 | Shop at ECS Tuning | |||||
| For vehicles with Fabric "Diagonal" |
AW=Yes |
|||||||||
| 01 | Armrest in vinyl, front center | SCHWARZ | 1 | 51169187511 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Nappa/zimt-braun" |
NAEZ=Yes |
|||||||||
| 01 | Armrest in leather, front center | ZIMTBRAUN | 1 | 51169187514 | Shop at ECS Tuning | |||||
| For vehicles with Leather "Dakota/everest-grau" |
LCDE=Yes |
|||||||||
| 01 | Armrest in leather, front center | EVERESTGRAU | 1 | 51169198901 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather "Layer/Dakota/anthracite" or Leather "Dakota"/schwarz |
FNAT=Yes LCSW=Yes |
|||||||||
| 01 | Armrest in leather, front center | SCHWARZ | 1 | 51169198905 | Shop at ECS Tuning | |||||
| For vehicles with Fabric/leather Layer/Dakota/elfenbein-w. or Leather "Dakota/elfenbein-weiss" or Leather "Dakota/elfenbein-weiss" |
FNEW=Yes LCEW=Yes LCEX=Yes |
|||||||||
| 01 | Armrest in leather, front center | ELFENBEINWEISS | 1 | 51169198903 | Shop at ECS Tuning | |||||
| 02 | Locking mechanism for armrest | 1 | 51169142175 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Rep.kit f lock cylinder | 1 | 51169202265 | $90.17 | Shop at ECS Tuning | |||||
| 03 | Cover, lock, centre console | 1 | 51169178355 | Shop at ECS Tuning | ||||||
| 04 | Rep.kit f lock cylinder | 1 | 51169202265 | $90.17 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Locking mechanism for armrest | 1 | 51169142175 | Shop at ECS Tuning | ||||||
| 05 | Oval-head screw with washer | DELTA PT4X12 | 4 | 07149200941 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
