Surface-mounted parts, door panel, front for BMW 6 Series G32 GT 630d (2020)

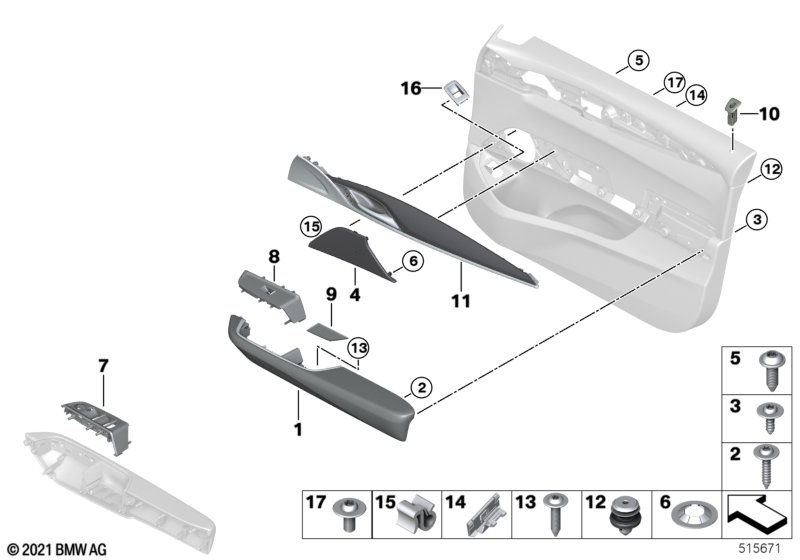

This Surface-mounted parts, door panel, front technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather Dakota/black/contrast blue |
LCNL=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ/BLAU | 1 | 51418073823 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | SCHWARZ/BLAU | 1 | 51418073824 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl.leather Nappa/black/exclusive seam |
LZFK=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 51417466279 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | SCHWARZ | 1 | 51417466280 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Excl. leather Nappa/mocca/exclusive seam |
LZNI=Yes |
|||||||||
| 01 | Armrest, front left | MOKKA | 1 | 51417466281 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | MOKKA | 1 | 51417466282 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/black/excl. seam or Leather "Dakota"/schwarz |
LCFK=Yes LCSW=Yes |
|||||||||
| 01 | Armrest, front left | SCHWARZ | 1 | 51417466265 | Shop at ECS Tuning | |||||
| 01 | Armrest, front right | SCHWARZ | 1 | 51417466266 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam |
LCRI=Yes LCRO=Yes |
|||||||||
| 01 | Armrest, front left | COGNAC | 1 | 51417466267 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | COGNAC | 1 | 51417466268 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 01 | Armrest, front left | CANBERRABEIGE | 1 | 51417466261 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | CANBERRABEIGE | 1 | 51417466262 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white |
LZFF=Yes LZFI=Yes |
|||||||||
| 01 | Armrest, front left | ELFENBEINWEISS | 1 | 51417466277 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | ELFENBEINWEISS | 1 | 51417466278 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam |
LCEW=Yes LCFF=Yes LCFI=Yes |
|||||||||
| 01 | Armrest, front left | ELFENBEINWEISS | 1 | 51417466263 | NoS | Shop at ECS Tuning | ||||
| 01 | Armrest, front right | ELFENBEINWEISS | 1 | 51417466264 | NoS | Shop at ECS Tuning | ||||
| 02 | Oval-head screw with washer | DELTA PT4X20 | 12 | 07149185673 | Shop at ECS Tuning | |||||
| 03 | Oval-head screw with washer | DELTA PT4X12 | X | 07149200941 | Shop at ECS Tuning | |||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 04 | Cover, speaker, metal, left | BOWERS&WILKENS | 1 | 65136824623 | Shop at ECS Tuning | |||||
| 04 | Cover, speaker, metal, right | BOWERS&WILKENS | 1 | 65136824624 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system |
S688A=Yes |
|||||||||
| 04 | Cover f left loudspeaker | TITAN DUNKEL | 1 | 51417416809 | Shop at ECS Tuning | |||||
| 04 | Cover f right loudspeaker | TITAN DUNKEL | 1 | 51417416810 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=No S6F1A=No |
|||||||||
| 04 | Cover f left loudspeaker | SCHWARZ | 1 | 51417438565 | Shop at ECS Tuning | |||||
| 04 | Cover f right loudspeaker | SCHWARZ | 1 | 51417438566 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
S688A=No S6F1A=No EW=Yes FF=Yes FI=Yes |
|||||||||
| 04 | Cover f left loudspeaker | ELFENBEINWEISS | 1 | 51417438559 | Shop at ECS Tuning | |||||
| 04 | Cover f right loudspeaker | ELFENBEINWEISS | 1 | 51417438560 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S688A=No S6F1A=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 04 | Cover f left loudspeaker | CANBERRABEIGE | 1 | 51417438557 | Shop at ECS Tuning | |||||
| 04 | Cover f right loudspeaker | CANBERRABEIGE | 1 | 51417438558 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | ISA 4X14MM | X | 51167072159 | $0.33 | Shop at ECS Tuning | ||||
| 06 | Circlip | M6 | X | 54318246804 | $5.46 | Shop at ECS Tuning | ||||
| For vehicles with Outside mirror with auto dip |
S4T8A=Yes |
|||||||||
| 07 | Trim cover, switch module, left | SCHWARZ | 1 | 51417466309 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Outside mirror with auto dip |
S4T8A=No |
|||||||||
| 07 | Trim cover, switch module, left | SCHWARZ | 1 | 51417466299 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Outside mirror with auto dip and elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
S4T8A=No EW=Yes FF=Yes FI=Yes |
|||||||||
| 07 | Trim cover, switch module, left | ELFENBEINWEISS | 1 | 51417466297 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Outside mirror with auto dip and elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
S4T8A=Yes EW=Yes FF=Yes FI=Yes |
|||||||||
| 07 | Trim cover, switch module, left | ELFENBEINWEISS | 1 | 51417466307 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Outside mirror with auto dip and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S4T8A=Yes CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 07 | Trim cover, switch module, left | CANBERRABEIGE | 1 | 51417466305 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Outside mirror with auto dip and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S4T8A=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 07 | Trim cover, switch module, left | CANBERRABEIGE | 1 | 51417466295 | NoS | Shop at ECS Tuning | ||||
| 08 | Trim cover, power window switch, right | SCHWARZ | 1 | 51417466318 | NoS | Shop at ECS Tuning | ||||
| For vehicles with elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
EW=Yes FF=Yes FI=Yes |
|||||||||
| 08 | Trim cover, power window switch, right | ELFENBEINWEISS | 1 | 51417466316 | NoS | Shop at ECS Tuning | ||||
| For vehicles with canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 08 | Trim cover, power window switch, right | CANBERRABEIGE | 1 | 51417466314 | NoS | Shop at ECS Tuning | ||||
| 09 | Covering left | SCHWARZ | 1 | 51427466785 | NoS | Shop at ECS Tuning | ||||
| 09 | Covering right | SCHWARZ | 1 | 51427466786 | NoS | Shop at ECS Tuning | ||||
| For vehicles with elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast |
EW=Yes FF=Yes FI=Yes |
|||||||||
| 09 | Covering left | ELFENBEINWEISS | 1 | 51427466783 | NoS | Shop at ECS Tuning | ||||
| 09 | Covering right | ELFENBEINWEISS | 1 | 51427466784 | NoS | Shop at ECS Tuning | ||||
| For vehicles with canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 09 | Covering left | CANBERRABEIGE | 1 | 51427466781 | NoS | Shop at ECS Tuning | ||||
| 09 | Covering right | CANBERRABEIGE | 1 | 51427466782 | NoS | Shop at ECS Tuning | ||||
| 10 | Trim cover, lock assembly, left | SCHWARZ | 1 | 51419478919 | NoS | Shop at ECS Tuning | ||||
| 10 | Trim cover, lock assembly, right | SCHWARZ | 1 | 51419478920 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim "Fineline Cove" and Ambient interior lighting |
S4LHA=Yes S4URA=No |
|||||||||
| 11 | Trim cover, door, left | OFFENPORIG | 1 | 51419460221 | NoS | Shop at ECS Tuning | ||||
| 11 | Trim cover, door, right | OFFENPORIG | 1 | 51419460222 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Black, highgloss Perlglanz chrome accent and Ambient interior lighting |
S4LUA=Yes S4URA=No |
|||||||||
| 11 | Decor trim, left | SCHWARZ | 1 | 51419460243 | Shop at ECS Tuning | |||||
| 11 | Decor trim, right | SCHWARZ | 1 | 51419460244 | Shop at ECS Tuning | |||||
| For vehicles with Inter.trim finishers aluminum fine cut and Ambient interior lighting |
S4K9A=Yes S4URA=No |
|||||||||
| 11 | Decor trim aluminium, left | FEINSCHLIFF | 1 | 51419460231 | NoS | Shop at ECS Tuning | ||||
| 11 | Decor trim aluminium, right | FEINSCHLIFF | 1 | 51419460232 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim "Fineline Ridge" and Ambient interior lighting |
S4LFA=Yes S4URA=Yes |
|||||||||
| 11 | Trim, door, Fineline, front left | 1 | 51419460213 | Shop at ECS Tuning | ||||||
| 11 | Trim, door, Fineline, front right | 1 | 51419460214 | Shop at ECS Tuning | ||||||
| For vehicles with Inter.trim finishers oxide silver dark and Ambient interior lighting |
S4K8A=Yes S4URA=No |
|||||||||
| 11 | Decor trim, left | OXIDSILBER | 1 | 51419460241 | Shop at ECS Tuning | |||||
| 11 | Decor trim, right | OXIDSILBER | 1 | 51419460242 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim alu.rhomb.w.accent strip and Ambient interior lighting |
S4K7A=Yes S4URA=Yes |
|||||||||
| 11 | Trim cover, door, alu, front left | RHOMBICLE | 1 | 51419460237 | Shop at ECS Tuning | |||||
| 11 | Trim cover, door, alu, front right | RHOMBICLE | 1 | 51419460238 | Shop at ECS Tuning | |||||
| For vehicles with Poplar grain gray acc.pearl lust.chrome and Ambient interior lighting |
S4LQA=Yes S4URA=Yes |
|||||||||
| 11 | Trim piece door, poplar grain,front left | GRAU | 1 | 51419460219 | NoS | Shop at ECS Tuning | ||||
| 11 | Trim piece door,poplar grain,front right | GRAU | 1 | 51419460220 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, piano lacquer, black and Ambient interior lighting |
S4MLA=Yes S4URA=Yes |
|||||||||
| 11 | Trim, door, piano varnish, front left | 1 | 51419460229 | NoS | Shop at ECS Tuning | |||||
| 11 | Trim, door, piano varnish, front right | 1 | 51419460230 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim "Fineline Ridge" and Ambient interior lighting |
S4LFA=Yes S4URA=No |
|||||||||
| 11 | Trim cover, door, wood fineline, left | 1 | 51419460209 | NoS | Shop at ECS Tuning | |||||
| 11 | Trim cover, door, wood fineline, right | 1 | 51419460210 | NoS | Shop at ECS Tuning | |||||
| For vehicles with Poplar grain gray acc.pearl lust.chrome and Ambient interior lighting |
S4LQA=Yes S4URA=No |
|||||||||
| 11 | Trim piece door, poplar grain,front left | GRAU | 1 | 51419460217 | NoS | Shop at ECS Tuning | ||||
| 11 | Trim piece door,poplar grain,front right | GRAU | 1 | 51419460218 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Inter.trim finishers oxide silver dark and Ambient interior lighting |
S4K8A=Yes S4URA=Yes |
|||||||||
| 11 | Trim cover, door, front left | OXIDSILBER | 1 | 51419460239 | NoS | Shop at ECS Tuning | ||||
| 11 | Trim cover, door, front right | OXIDSILBER | 1 | 51419460240 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Black, highgloss Perlglanz chrome accent and Ambient interior lighting |
S4LUA=Yes S4URA=Yes |
|||||||||
| 11 | Trim cover, door, front left | SCHWARZ | 1 | 51419460245 | NoS | Shop at ECS Tuning | ||||
| 11 | Trim cover, door, front right | SCHWARZ | 1 | 51419460246 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim dark burled walnut and Ambient interior lighting |
S4LGA=Yes S4URA=No |
|||||||||
| 11 | Trim, door, wood, walnut root, left | 1 | 51419460225 | Shop at ECS Tuning | ||||||
| 11 | Trim, door, wood, walnut root, right | 1 | 51419460226 | Shop at ECS Tuning | ||||||
| For vehicles with Fine-wood trim "Fineline Cove" and Ambient interior lighting |
S4LHA=Yes S4URA=Yes |
|||||||||
| 11 | Trim cover, door, front left | OFFENPORIG | 1 | 51419460223 | Shop at ECS Tuning | |||||
| 11 | Trim cover, door, front right | OFFENPORIG | 1 | 51419460224 | Shop at ECS Tuning | |||||
| For vehicles with Fine-wood trim dark burled walnut and Ambient interior lighting |
S4LGA=Yes S4URA=Yes |
|||||||||
| 11 | Trim, door, wood, walnut root, left | DUNKEL | 1 | 51419460227 | NoS | Shop at ECS Tuning | ||||
| 11 | Trim, door, wood, walnut root, right | DUNKEL | 1 | 51419460228 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Inter.trim finishers aluminum fine cut and Ambient interior lighting |
S4K9A=Yes S4URA=Yes |
|||||||||
| 11 | Decor trim aluminium, left | FEINSCHLIFF | 1 | 51419460233 | NoS | Shop at ECS Tuning | ||||
| 11 | Decor trim aluminium, right | FEINSCHLIFF | 1 | 51419460234 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Interior trim alu.rhomb.w.accent strip and Ambient interior lighting |
S4K7A=Yes S4URA=No |
|||||||||
| 11 | Trim cover, door, alu, front left | RHOMBICLE | 1 | 51419460235 | NoS | Shop at ECS Tuning | ||||
| 11 | Trim cover, door, alu, front right | RHOMBICLE | 1 | 51419460236 | NoS | Shop at ECS Tuning | ||||
| 12 | Clip | X | 51417325082 | Shop at ECS Tuning | ||||||
| 13 | Torx-bolt for plastic material | ISA L=25MM | 4 | 07147549513 | $0.29 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1,8MM | 12 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
| For vehicles with Bowers & Wilkins High End Sound System |
S6F1A=Yes |
|||||||||
| 15 | Clamp | 1 | 61131382377 | $0.62 | Shop at ECS Tuning | |||||
| 16 | Trim cover, switch, trunk lid | SCHWARZ | 1 | 51417438587 | Shop at ECS Tuning | |||||
| For vehicles with Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
LCCY=Yes LCDO=Yes |
|||||||||
| 16 | Trim cover, switch, trunk lid | CANBERRABEIGE | 1 | 51417438585 | Shop at ECS Tuning | |||||
| 17 | Fillister head screw | TS4X10 ISA | X | 07147270744 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
