Trim panel A- / B- / C- / D-Column for BMW 5 Series G31 Touring 525d (2019)

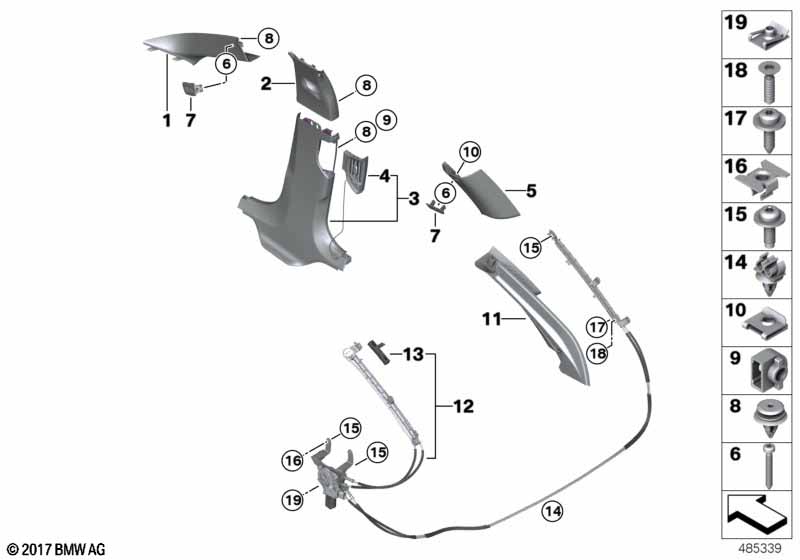

This Trim panel A- / B- / C- / D-Column technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S775A=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 01 | Left column A cover | CANBERRABEIGE | 1 | 51437431207 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | CANBERRABEIGE | 1 | 51437431208 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 01 | Left column A cover | ELFENBEINWEISS | 1 | 51437419697 | Shop at ECS Tuning | |||||
| 01 | Right column A cover | ELFENBEINWEISS | 1 | 51437419698 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S775A=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 02 | Cover, B-column upper left | CANBERRABEIGE | 1 | 51437431211 | Shop at ECS Tuning | |||||
| 02 | Cover, B-column upper right | CANBERRABEIGE | 1 | 51437431212 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 02 | Cover, B-column upper left | ELFENBEINWEISS | 1 | 51437419699 | Shop at ECS Tuning | |||||
| 02 | Cover, B-column upper right | ELFENBEINWEISS | 1 | 51437419700 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S4NBA=Yes CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 03 | Cover, B-column bottom left | CANBERRABEIGE | 1 | 51437431223 | Shop at ECS Tuning | |||||
| 03 | Cover, B-column bottom right | CANBERRABEIGE | 1 | 51437431224 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S4NBA=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 03 | Cover, B-column bottom left | CANBERRABEIGE | 1 | 51437438353 | Shop at ECS Tuning | |||||
| 03 | Cover, B-column bottom right | CANBERRABEIGE | 1 | 51437438354 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S4NBA=No AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 03 | Cover, B-column bottom left | SCHWARZ | 1 | 51437419853 | Shop at ECS Tuning | |||||
| 03 | Cover, B-column bottom right | SCHWARZ | 1 | 51437419854 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
S4NBA=Yes AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 03 | Cover, B-column bottom left | SCHWARZ | 1 | 51437419855 | Shop at ECS Tuning | |||||
| 03 | Cover, B-column bottom right | SCHWARZ | 1 | 51437419856 | Shop at ECS Tuning | |||||
| For vehicles with Autom. climate control with 4-zone ctrl and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S4NBA=Yes CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 04 | Ventilat.outlet f.fresh air grille left | CANBERRABEIGE | 1 | 51437484369 | NoS | Shop at ECS Tuning | ||||
| 04 | Ventil.outlet for fresh air grille right | CANBERRABEIGE | 1 | 51437484370 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Autom. climate control with 4-zone ctrl and Leather "Dakota" or anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or hotspur-red or Black Exclusive seam or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S4NBA=Yes LC=Yes AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes HR=Yes LZ=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 04 | Ventilat.outlet f.fresh air grille left | SCHWARZ | 1 | 51437214857 | Shop at ECS Tuning | |||||
| 04 | Ventil.outlet for fresh air grille right | SCHWARZ | 1 | 51437214858 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S775A=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 05 | Trim cover, C-pillar, upper left | CANBERRABEIGE | 1 | 51437438459 | NoS | Shop at ECS Tuning | ||||
| 05 | Trim cover, C-pillar, upper right | CANBERRABEIGE | 1 | 51437438460 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 05 | Trim cover, C-pillar, upper left | ELFENBEINWEISS | 1 | 51437438461 | NoS | Shop at ECS Tuning | ||||
| 05 | Trim cover, C-pillar, upper right | ELFENBEINWEISS | 1 | 51437438462 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
S775A=Yes AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 05 | Trim cover, C-pillar, upper left | ANTHRAZIT | 1 | 51438070629 | NoS | Shop at ECS Tuning | ||||
| 05 | Trim cover, C-pillar, upper right | ANTHRAZIT | 1 | 51438070630 | Shop at ECS Tuning | |||||
| 06 | Sheet metal screw | ST4,8X38-R-ZNFE | 4 | 07119905199 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S775A=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 07 | Cover cap "Airbag" | CANBERRABEIGE | 4 | 51439347682 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 07 | Cover cap "Airbag" | ELFENBEINWEISS | 4 | 51439343372 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
S775A=Yes AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 07 | Cover cap airbag | SCHWARZ | 4 | 51437903774 | Shop at ECS Tuning | |||||
| 08 | Clip Natur | 24 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 09 | Adapter | 2 | 51437225342 | Shop at ECS Tuning | ||||||
| 10 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and canberra-beige or canberrabeige Exklusivnaht/Keder or canberrabeige Exklusivnaht/Keder or canberra-beige |
S775A=No CY=Yes DO=Yes EA=Yes FY=Yes |
|||||||||
| 11 | Cover, column D, left | CANBERRABEIGE | 1 | 51437438455 | NoS | Shop at ECS Tuning | ||||
| 11 | Cover, column D, right | CANBERRABEIGE | 1 | 51437438456 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. |
S775A=No AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes |
|||||||||
| 11 | Cover, column D, left | ELFENBEINWEISS | 1 | 51437438457 | Shop at ECS Tuning | |||||
| 11 | Cover, column D, right | ELFENBEINWEISS | 1 | 51437438458 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and anthracite or elfenbein-weiss or Ivory-white exclusive seam/welt or Ivory-white exclusive n./welt contrast or Black exclusive seam/welt contras or Mocca/exclusive seam/welt in contrast or cognac or Cognac exclusive seam/welt contrast or Black or Night blue/exclusive seam/welt in contr. or Cloth Rhombicle Alcantara anthracite or Leather "Dakota/elfenbein-weiss" or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/elfenbein-weiss/Excl.seam or Leather Dakota/black/excl. seam or Leather Dakota/black/contrast blue or Leather, Dakota/cognac or Leather Dakota/Cognac/exclusive seam or Leather "Dakota"/schwarz or Leather Dakota/night blue/exclusive seam or Exclusive leather Nappa/ivory white or Exclusive leather Nappa/ivory white or Excl.leather Nappa/black/exclusive seam or Excl. leather Nappa/mocca/exclusive seam |
S775A=Yes AT=Yes EW=Yes FF=Yes FI=Yes FK=Yes NI=Yes RI=Yes RO=Yes SW=Yes TJ=Yes HRAT=Yes LCEW=Yes LCFF=Yes LCFI=Yes LCFK=Yes LCNL=Yes LCRI=Yes LCRO=Yes LCSW=Yes LCTJ=Yes LZFF=Yes LZFI=Yes LZFK=Yes LZNI=Yes |
|||||||||
| 11 | Cover, column D, left | SCHWARZ | 1 | 51438070631 | Shop at ECS Tuning | |||||
| 11 | Cover, column D, right | SCHWARZ | 1 | 51438070632 | Shop at ECS Tuning | |||||
| 12 | D-pillar lift | 1 | 51437385491 | Shop at ECS Tuning | ||||||
| 13 | Coupling, left | 1 | 51437462795 | Shop at ECS Tuning | ||||||
| 13 | Transfer coupling, right | 1 | 51437462796 | Shop at ECS Tuning | ||||||
| 14 | Bracket, hose line | 7 | 54348242194 | $0.39 | Shop at ECS Tuning | |||||
| 15 | Isa screw with washer | M6X20-U2-10.9 | 8 | 07129908461 | Shop at ECS Tuning | |||||
| 16 | Prestol-cage | M6 ZNS3 | 2 | 32411095443 | $1.48 | Shop at ECS Tuning | ||||
| 17 | Sheet metal screw | ST4,8X19 | 2 | 07119904714 | $0.25 | Shop at ECS Tuning | ||||
| 18 | Screw | 4 | 07147233972 | Shop at ECS Tuning | ||||||
| 19 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
