Ornamental strips for BMW 3 Series E30 325i (1989)

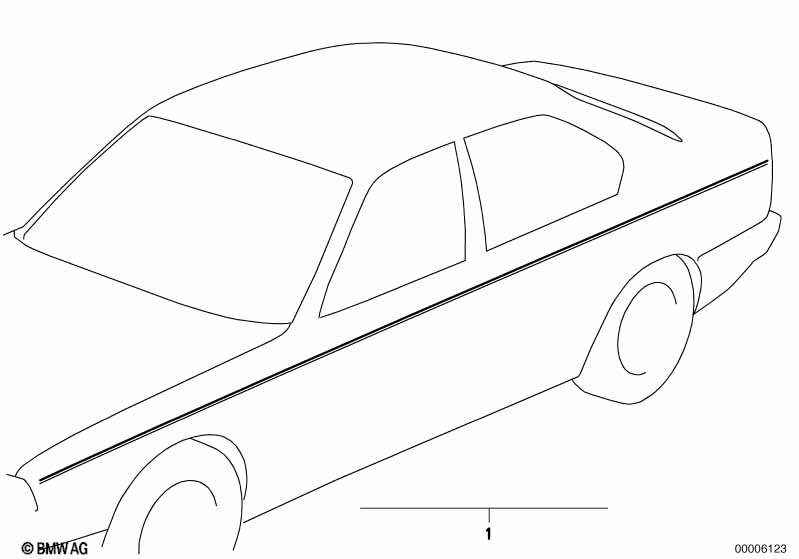

This Ornamental strips technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ornamental strips | SCHWARZ/SCHWARZ | 1 | 51141933217 | $43.75 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | SILBER/SILBER | 1 | 51141933218 | $43.75 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | ANTHRAZIT/SW | 1 | 51141933373 | $127.14 | ENDED | Shop at ECS Tuning | |||
| 01 | Ornamental strips | ANTHRAZIT/SILBE | 1 | 51141933374 | $73.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Ornamental strips | BLAUMETALLIC/SW | 1 | 51141933375 | $73.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Ornamental strips | BRAUN/DUNKELBRA | 1 | 51141933376 | $47.15 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | HELLGRÜNMET./SW | 1 | 51141933377 | $47.15 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | SCHWARZMET./SIL | 1 | 51141933378 | $47.15 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | GRAU/SCHWARZ | 1 | 51141933379 | $33.76 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | WEINROT/ROT | 1 | 51141933380 | $47.15 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | SCHWARZ/SILBER | 1 | 51141933381 | $47.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Ornamental strips | DUNKELBLAU/SILB | 1 | 51141933382 | $47.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Ornamental strips | DUNKELGRÜN/SW | 1 | 51141933383 | $47.15 | ENDED | Shop at ECS Tuning | |||
| 01 | Ornamental strips | GRÜN/SCHWARZ | 1 | 51141933384 | $47.15 | Shop at ECS Tuning | ||||
| 01 | Ornamental strips | BRAUN/SILBER | 1 | 51141967979 | $47.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
