Interior strips, aluminum, glaciersilber for BMW 3 Series E92 LCI 320i (2013)

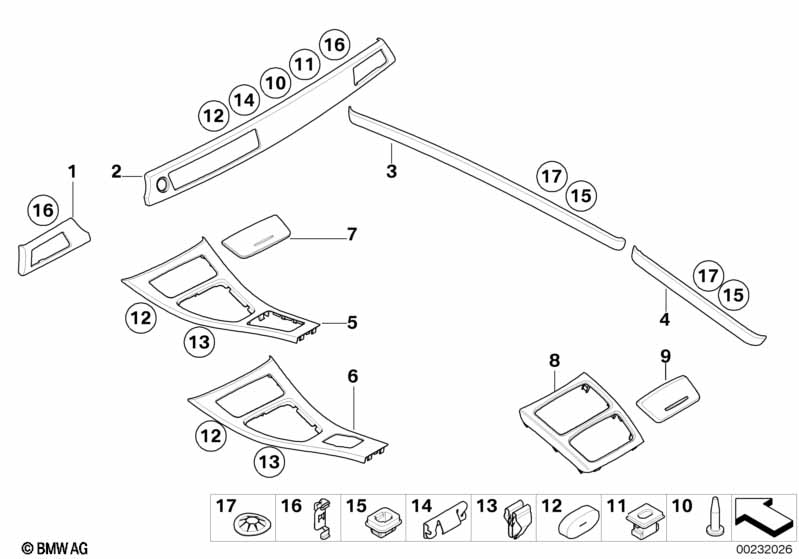

This Interior strips, aluminum, glaciersilber technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior strips alu glacier-silber dark |
S4WAA=Yes |
|||||||||
| 01 | Cover, dashboard, aluminium, left | GLACIERSILBER | 1 | 51458049048 | +core | Shop at ECS Tuning | ||||
| 02 | Cover, dashboard, aluminium, right | GLACIERSILBER | 1 | 51458049049 | +core | Shop at ECS Tuning | ||||
| 03 | Decor strip, left doors | GLACIERSILBER | 1 | 51418049043 | +core | Shop at ECS Tuning | ||||
| 03 | Decor strip, right doors | GLACIERSILBER | 1 | 51418049044 | +core | Shop at ECS Tuning | ||||
| 04 | Decorative strip trim panel, rear left | GLACIERSILBER | 1 | 51438049045 | +core | Shop at ECS Tuning | ||||
| 04 | Decorative strip trim panel, rear right | GLACIERSILBER | 1 | 51438049046 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=No S606A=No S609A=No |
|||||||||
| 05 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049054 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=Yes S606A=Yes S609A=Yes |
|||||||||
| 06 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049059 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=Yes S606A=Yes S609A=No |
|||||||||
| 06 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049059 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=Yes S606A=No S609A=Yes |
|||||||||
| 06 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049059 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 06 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049059 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=No S606A=Yes S609A=Yes |
|||||||||
| 06 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049059 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 06 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049059 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips alu glacier-silber dark and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4WAA=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 06 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049059 | +core | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and Interior strips alu glacier-silber dark |
S441A=Yes S4WAA=Yes |
|||||||||
| 07 | Cover | 1 | 51168049055 | +core | Shop at ECS Tuning | |||||
| For vehicles with Interior strips alu glacier-silber dark |
S4WAA=Yes |
|||||||||
| 08 | Trim, storage compartment | GLACIERSILBER | 1 | 51168049071 | +core | Shop at ECS Tuning | ||||
| 09 | Cover, oddments box, rear | GLACIERSILBER | 1 | 51168049072 | Shop at ECS Tuning | |||||
| 10 | Pin | D=6X22 | 19 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 10 | Pin | 19 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 10 | Pin | D=6X25 | 19 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 20 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 14 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 15 | Plug-in retainer | 4 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 16 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 17 | Axial securing clip | 15X5,7MM | 34 | 07149158226 | Shop at ECS Tuning | |||||
| 17 | Circlip | D=4MM | 34 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Axial securing clip | 5,75MM | 34 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
