Wheelarch trim for BMW 7 Series F03 760LiS

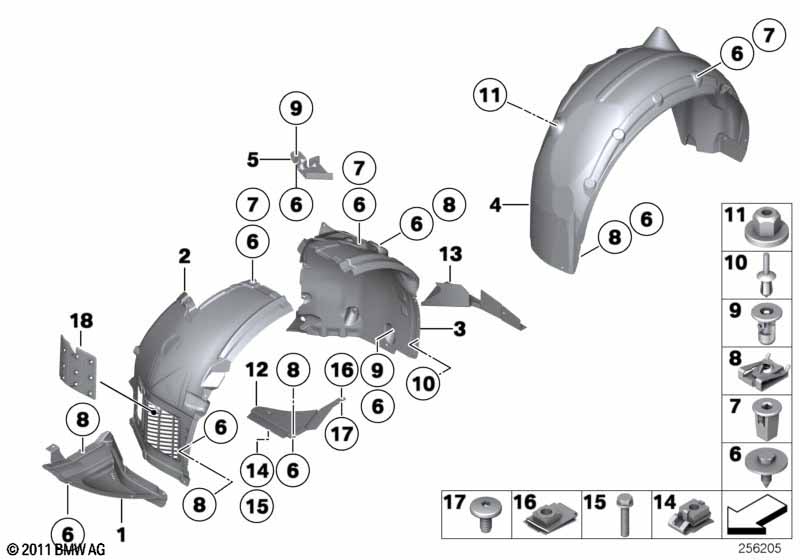

This Wheelarch trim technical drawing provides a detailed breakdown of the assembly for the 7 Series F03 760LiS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, bottom left | 1 | 07/2012 | 51757185005 | $17.41 | Shop at ECS Tuning | ||||
| 01 | Cover, bottom right | 1 | 07/2012 | 51757185006 | $17.41 | Shop at ECS Tuning | ||||
| 02 | Wheel arch cover, front section, lft frt | 1 | 07/2012 | 51717185163 | $47.67 | Shop at ECS Tuning | ||||
| 02 | Wheel arch cover, front section, rgt frt | 1 | 07/2012 | 51717185164 | $47.67 | Shop at ECS Tuning | ||||
| 03 | Cover, wheelhousing, rear, front left | 1 | 51717208565 | Shop at ECS Tuning | ||||||
| 03 | Cover, wheelhousing, rear, front right | 1 | 51717208566 | Shop at ECS Tuning | ||||||
| 04 | Cover, wheel housing, rear left | 1 | 51717185269 | $70.13 | Shop at ECS Tuning | |||||
| 04 | Cover, wheel housing, rear right | 1 | 51717185270 | $70.13 | Shop at ECS Tuning | |||||
| 05 | Support, wheelhouse left | 1 | 51717203489 | $11.97 | Shop at ECS Tuning | |||||
| 05 | Support, wheelhouse right | 1 | 51717203490 | $11.97 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | TS5X17 SW8 D=22 | X | 07149126886 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | L=15MM, DMAX=12 | 16 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | X | 12/2011 | 51717065773 | Shop at ECS Tuning | |||||
| 08 | C-clip for plastic nut | TS5 | X | 12/2011 | 07147311312 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | L=18.4, DMAX=18 | X | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Expanding rivet | 8 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 11 | Plastic capnut with washer | D=18MM | X | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 11 | Plastic nut for coarse threaded pin | M6 | X | 07147336362 | Shop at ECS Tuning | |||||
| 11 | C-clip for plastic nut | TS5 | X | 07147311312 | Shop at ECS Tuning | |||||
| 13 | Reinforcement wheelhousing left | 1 | 51757274479 | ENDED | Shop at ECS Tuning | |||||
| 13 | Reinforcement wheelhousing right | 1 | 51757274480 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
