Underhood shield for BMW 7 Series F03 760LiS

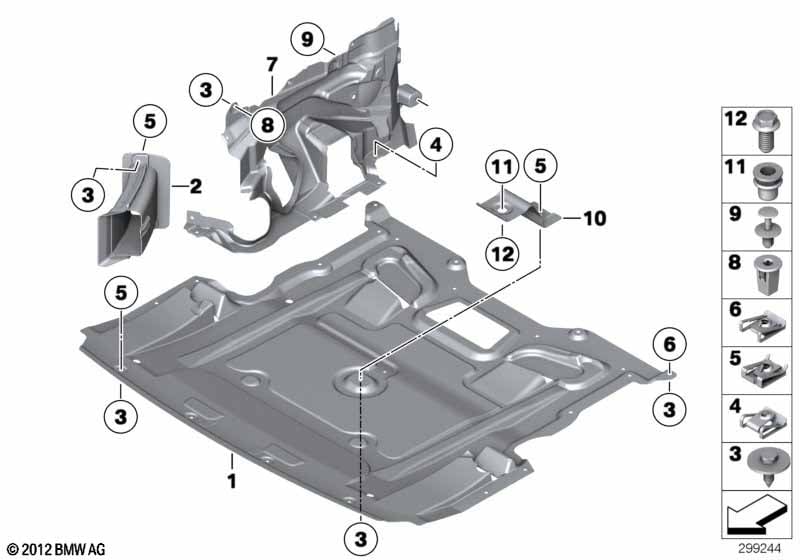

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 7 Series F03 760LiS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Engine comp. shield., underride prot. | 1 | 51757185113 | $191.03 | Shop at ECS Tuning | |||||
| 02 | Air channel left | 1 | 51757185167 | $46.18 | Shop at ECS Tuning | |||||
| 02 | Air channel right | 1 | 51757185168 | $46.18 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | TS5X17 SW8 D=22 | X | 07149126886 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | TS5X20 SW8 D=22 | X | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | TS5X20SW10 D=22 | X | 01/2021 | 07149481168 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | TS5X20SW10 D=22 | X | 01/2021 | 07142644722 | ENDED | Shop at ECS Tuning | |||
| 04 | C-clip nut | 12 | 07146981767 | $1.33 | Shop at ECS Tuning | |||||
| 05 | C-clip nut | 11 | 12/2011 | 51717065773 | Shop at ECS Tuning | |||||
| 05 | C-clip for plastic nut | TS5 | 11 | 12/2011 | 07147311312 | Shop at ECS Tuning | ||||
| 06 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Left steering gear cover | 1 | 51757208653 | Shop at ECS Tuning | ||||||
| 07 | Right steering gear cover | 1 | 51757208654 | Shop at ECS Tuning | ||||||
| 08 | Expanding nut | L=15MM, DMAX=12 | 6 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Expanding rivet | D = 8MM | 9 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Blind rivet nut, flat headed | M8 | 1 | 41327000571 | $1.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
