Left trunk trim for BMW iX3 G08 BEV iX3 (2021)

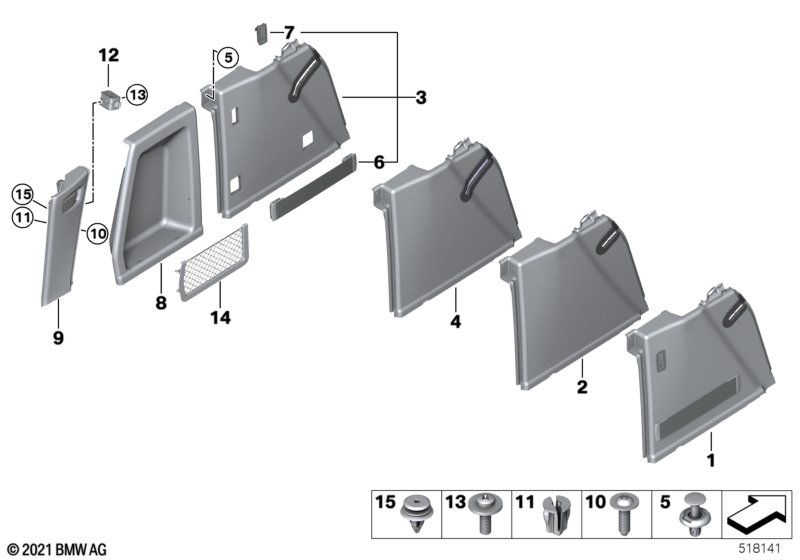

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the iX3 G08 BEV iX3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Left trunk trim | SA LNV / SW | 1 | 51487452461 | NoS | Shop at ECS Tuning | ||||
| 05 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
| 08 | Left trunk flap | SCHWARZ | 1 | 51477445817 | Shop at ECS Tuning | |||||
| 09 | Cover, D-column bottom left | SCHWARZ | 1 | 51477446107 | Shop at ECS Tuning | |||||
| 10 | Fillister head screw | ST5X17-ZNS3 | 6 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | 6 | 07147340742 | Shop at ECS Tuning | ||||||
| 12 | Bracket for hazard warn. triangle | 1 | 51497167548 | $0.81 | Shop at ECS Tuning | |||||
| 13 | Screw | TS5X16-ZNS3 | 1 | 07129905220 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Storage net storage comp.luggage comp. | ANTHRAZIT | 1 | 51479471111 | ENDED, NoS | Shop at ECS Tuning | ||||
| 14 | Storage net storage comp.luggage comp. | SCHWARZ | 1 | 51479471112 | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW iX3 G08 BEV iX3 Left trunk trim?
- This technical diagram illustrates the Left trunk trim within the Vehicle trim group for the iX3 G08 BEV iX3 produced during 2021. It provides a detailed exploded view of the components, identifying key parts such as the Left trunk trim (Part #51487452461).
- Which models use the hardware listed in this Left trunk trim?
- The hardware and components featured in the Left trunk trim are specific to the iX3 G08 BEV iX3 produced during 2021. These technical specifications ensure that parts like the Left trunk trim (51487452461) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Left trunk trim assembly?
- Each item in the Left trunk trim corresponds to the numbered list below the illustration. For the iX3 G08 BEV iX3, you can identify the Left trunk trim by locating its position on the schematic, which then links to the official BMW part number 51487452461 for the Vehicle trim section.
