Heat insulation for BMW 7 Series F03 760LiS

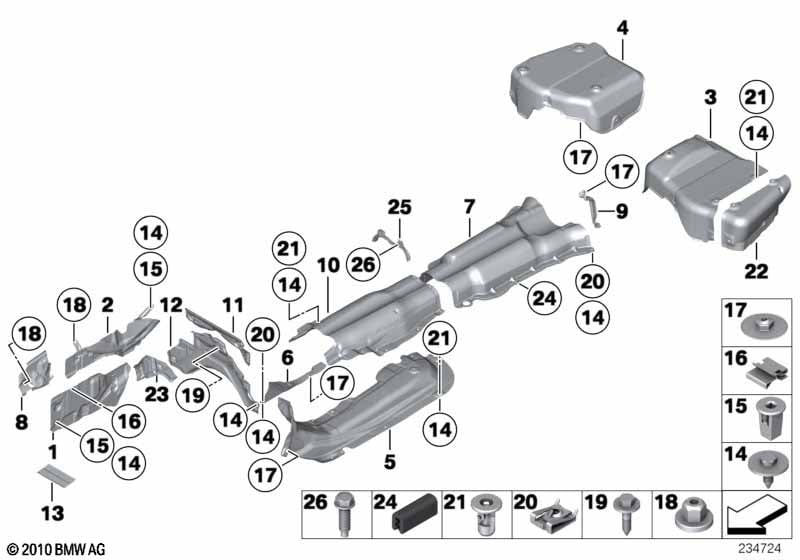

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the 7 Series F03 760LiS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat shield, engine mount, right | 1 | 12/2009 | 03/2012 | 51487225422 | ENDED | Shop at ECS Tuning | |||
| 01 | Left engine support heat insulation | 1 | 03/2012 | 51487185215 | ENDED | Shop at ECS Tuning | ||||
| 01 | Heat shield, engine mount, right | 1 | 03/2012 | 51487185216 | Shop at ECS Tuning | |||||
| 02 | Heat insulation, engine mount, top | 1 | 03/2012 | 51487193523 | Shop at ECS Tuning | |||||
| 03 | Heat insulation, rear silencer, left | 1 | 51487185211 | $80.70 | Shop at ECS Tuning | |||||
| 04 | Heat insulation, rear silencer, right | 1 | 51487185212 | $80.70 | Shop at ECS Tuning | |||||
| 05 | Heat insulation front left | 1 | 51487208563 | Shop at ECS Tuning | ||||||
| 05 | Right front heat insulation | 1 | 51487208564 | Shop at ECS Tuning | ||||||
| 06 | Heat insulation, left | 1 | 51487185203 | Shop at ECS Tuning | ||||||
| 06 | Heat insulation right | 1 | 51487202854 | Shop at ECS Tuning | ||||||
| 07 | Fuel tank heat insulation | 1 | 51487284976 | Shop at ECS Tuning | ||||||
| 08 | Heat insulation | 1 | 51487224341 | Shop at ECS Tuning | ||||||
| 09 | Bracket, fuel tank heat insulation left | 1 | 51487185209 | Shop at ECS Tuning | ||||||
| 09 | Bracket, fuel tank heat insulation right | 1 | 51487185210 | Shop at ECS Tuning | ||||||
| 10 | Tunnel heat insulator | 1 | 51487208554 | Shop at ECS Tuning | ||||||
| 11 | Heat insulation, firewall, upper | 1 | 51487185200 | Shop at ECS Tuning | ||||||
| 13 | Heat protection | 165X75MM | 1 | 51237221223 | $14.24 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex bolt | TS5X17 SW8 D=22 | 6 | 07149126886 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | TS5X20 SW8 D=22 | 14 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | TS5X20SW10 D=22 | 14 | 01/2021 | 07149481168 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | TS5X20SW10 D=22 | 14 | 01/2021 | 07142644722 | ENDED | Shop at ECS Tuning | |||
| 15 | Expanding nut | L=15MM, DMAX=12 | 4 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Clamp | 3 | 07147654321 | $0.17 | Shop at ECS Tuning | |||||
| 17 | Clip nut | 5X9 D=30 SW10 | 20 | 07147261260 | Shop at ECS Tuning | |||||
| 18 | Plastic capnut with washer | D=18MM | 1 | 08/2013 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 18 | Plastic nut for coarse threaded pin | M6 | 1 | 07147336362 | Shop at ECS Tuning | |||||
| 19 | Sheet metal screw | 4,8X22 | 2 | 07119905184 | $0.29 | Shop at ECS Tuning | ||||
| 20 | C-clip nut | 4 | 12/2011 | 51717065773 | Shop at ECS Tuning | |||||
| 20 | C-clip for plastic nut | TS5 | 4 | 12/2011 | 07147311312 | Shop at ECS Tuning | ||||
| 21 | Expanding nut | L=18.4, DMAX=18 | 6 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Heat insulation, left | 1 | 51487185213 | $31.85 | Shop at ECS Tuning | |||||
| 22 | Heat insulation right | 1 | 51487185214 | $31.85 | Shop at ECS Tuning | |||||
| 23 | Heat insulation, front wall | 1 | 51487233901 | Shop at ECS Tuning | ||||||
| 23 | Heat insulation, front wall | 1 | 51487233902 | Shop at ECS Tuning | ||||||
| 24 | Edge protection | 2 | 51728216475 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
