Rear window shelf for BMW 6 Series G32 GT 620d (2020)

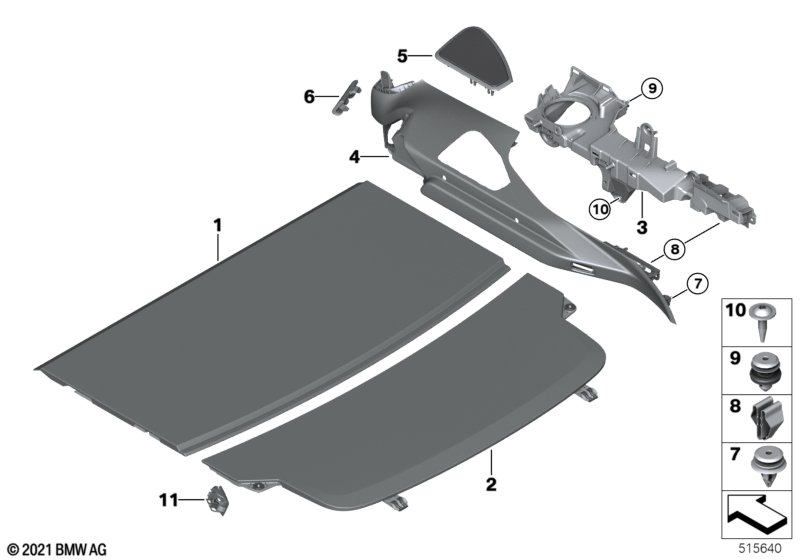

This Rear window shelf technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 620d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric seat backrest adjustment, rear and Headlining anthracite |
S461A=No S775A=Yes |
|||||||||
| 01 | Parcel shelf, front | ANTHRAZIT | 1 | 51478073819 | Shop at ECS Tuning | |||||
| For vehicles with Electric seat backrest adjustment, rear and Headlining anthracite |
S461A=Yes S775A=Yes |
|||||||||
| 01 | Parcel shelf, front | ANTHRAZIT | 1 | 51478075059 | Shop at ECS Tuning | |||||
| For vehicles with Electric seat backrest adjustment, rear and Headlining anthracite and Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
S461A=No S775A=No LCCY=Yes LCDO=Yes |
|||||||||
| 01 | Parcel shelf, front | CANBERRABEIGE | 1 | 51477474548 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric seat backrest adjustment, rear and Headlining anthracite and Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
S461A=Yes S775A=No LCCY=Yes LCDO=Yes |
|||||||||
| 01 | Parcel shelf, front | CANBERRABEIGE | 1 | 51477474550 | Shop at ECS Tuning | |||||
| For vehicles with Electric seat backrest adjustment, rear and Headlining anthracite and |
S461A=Yes S775A=No |
|||||||||
| 01 | Parcel shelf, front | SCHWARZ | 1 | 51477444566 | Shop at ECS Tuning | |||||
| For vehicles with Electric seat backrest adjustment, rear and Headlining anthracite and |
S461A=No S775A=No |
|||||||||
| 01 | Parcel shelf, front | SCHWARZ | 1 | 51477444565 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 02 | Parcel shelf, rear | ANTHRAZIT | 1 | 51498075053 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite and Leather Dakota/canberra-beige or Leather Dakota/Canberra beige/excl.seam |
S775A=No LCCY=Yes LCDO=Yes |
|||||||||
| 02 | Parcel shelf, rear | CANBERRABEIGE | 1 | 51497474544 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite and |
S775A=No |
|||||||||
| 02 | Parcel shelf, rear | SCHWARZ | 1 | 51497474545 | Shop at ECS Tuning | |||||
| 03 | Mount, waist rail, left | 1 | 51477377753 | Shop at ECS Tuning | ||||||
| 03 | Mount, waist rail, right | 1 | 51477377754 | Shop at ECS Tuning | ||||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=No S6F1A=No |
|||||||||
| 04 | Trim, waistrail, luggage bay, left | SCHWARZ | 1 | 51477445473 | Shop at ECS Tuning | |||||
| 04 | Trim, waistrail, luggage bay, right | SCHWARZ | 1 | 51477445474 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=Yes S6F1A=Yes |
|||||||||
| 04 | Trim, waistrail, luggage bay, left | SCHWARZ | 1 | 51477445475 | Shop at ECS Tuning | |||||
| 04 | Trim, waistrail, luggage bay, right | SCHWARZ | 1 | 51477445476 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=Yes S6F1A=No |
|||||||||
| 04 | Trim, waistrail, luggage bay, left | SCHWARZ | 1 | 51477445475 | Shop at ECS Tuning | |||||
| 04 | Trim, waistrail, luggage bay, right | SCHWARZ | 1 | 51477445476 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=No S6F1A=Yes |
|||||||||
| 04 | Trim, waistrail, luggage bay, left | SCHWARZ | 1 | 51477445475 | NoS | Shop at ECS Tuning | ||||
| 04 | Trim, waistrail, luggage bay, right | SCHWARZ | 1 | 51477445476 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=Yes S6F1A=Yes |
|||||||||
| 05 | Cover for speaker, rear left | SCHWARZ | 1 | 51477445477 | Shop at ECS Tuning | |||||
| 05 | Cover for speaker, rear right | SCHWARZ | 1 | 51477445478 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=Yes S6F1A=No |
|||||||||
| 05 | Cover for speaker, rear left | SCHWARZ | 1 | 51477445477 | Shop at ECS Tuning | |||||
| 05 | Cover for speaker, rear right | SCHWARZ | 1 | 51477445478 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system and Bowers & Wilkins High End Sound System |
S688A=No S6F1A=Yes |
|||||||||
| 05 | Cover for speaker, rear left | SCHWARZ | 1 | 51477445477 | Shop at ECS Tuning | |||||
| 05 | Cover for speaker, rear right | SCHWARZ | 1 | 51477445478 | Shop at ECS Tuning | |||||
| 06 | Cover, seatbelt slot, left | SCHWARZ | 1 | 51477445479 | NoS | Shop at ECS Tuning | ||||
| 06 | Cover, seatbelt slot, right | SCHWARZ | 1 | 51477445480 | NoS | Shop at ECS Tuning | ||||
| 07 | Clip Natur | 1 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 08 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 09 | Clip | 1 | 51417325082 | Shop at ECS Tuning | ||||||
| 10 | Fillister head screw with collar | ISA M5X19MM | 16 | 07146964282 | Shop at ECS Tuning | |||||
| 11 | Trim, remote backrest unlocking | SCHWARZ | 1 | 52209891203 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
