Locking system, door, front for BMW 5 Series F07 GT 535d

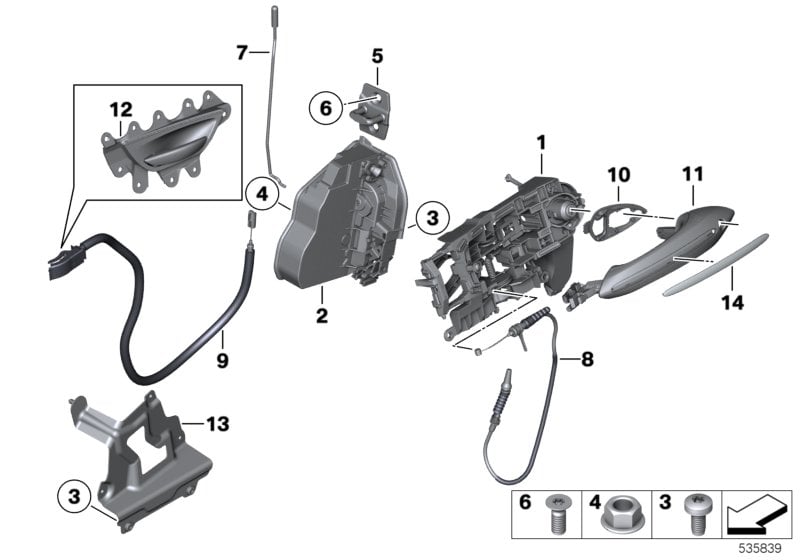

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 5 Series F07 GT 535d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, outside door handle, left | 1 | 51217175731 | $134.97 | Shop at ECS Tuning | |||||
| 01 | Carrier with catch, coded right | 1 | 51217248708 | Shop at ECS Tuning | ||||||
| 01 | Carrier with catch, with key right | 1 | 51217248710 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 01 | Carrier, outside door handle, left | 1 | 51217187227 | $160.62 | Shop at ECS Tuning | |||||
| 01 | Carrier with catch, coded right | 1 | 51217248704 | Shop at ECS Tuning | ||||||
| 01 | Carrier with catch, with key right | 1 | 51217248706 | Shop at ECS Tuning | ||||||
| 02 | System latch, left | 1 | 51217229457 | Shop at ECS Tuning | ||||||
| 02 | System latch, right | 1 | 51217229462 | Shop at ECS Tuning | ||||||
| For vehicles with Soft-Close-Automatic doors ONLY APPLIES TO CO-DRIVERS SIDE |
S323A=Yes |
|||||||||
| 02 | Lock, complete, front left | 1 | 51215A36F01 | Shop at ECS Tuning | ||||||
| For vehicles with Soft-Close-Automatic doors ONLY APPLIES TO DRIVER'S SIDE |
S323A=Yes |
|||||||||
| 02 | Lock, complete, front right | 1 | 51215A36E14 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system or Thiefproofing device |
S302A=Yes S8TGA=Yes |
|||||||||
| 02 | System latch, right | 1 | 51217202144 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device |
S302A=Yes S323A=No S8TGA=Yes |
|||||||||
| 02 | System latch, left | 1 | 03/2016 | 51217202145 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Comfort access and Soft-Close-Automatic doors and Thiefproofing device |
S302A=No S322A=Yes S323A=No S8TGA=No |
|||||||||
| 02 | System latch, right | 1 | 51217229456 | Shop at ECS Tuning | ||||||
| 03 | Torx-bolt with washer | ISA M6X12 ZNS3 | 6 | 07149258986 | Shop at ECS Tuning | |||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
|||||||||
| 04 | Hex nut with plate | M5 | 6 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Catch bracket | 2 | 51217312545 | Shop at ECS Tuning | ||||||
| 06 | Torx-countersunk head screw | ISA M8X28 | 6 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 07 | Left operating rod | 1 | 51217197797 | $2.40 | Shop at ECS Tuning | |||||
| 07 | Right operating rod | 1 | 51217197798 | $2.40 | Shop at ECS Tuning | |||||
| 08 | Bowden cable, outside door handle | 2 | 02/2010 | 51214874388 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bowden cable, outside door handle | 2 | 02/2010 | 51217297439 | Shop at ECS Tuning | |||||
| 09 | Bowden cable, door opener, front | 2 | 51217197802 | $19.60 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 10 | Cover for grip, lower left | 1 | 51217292575 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 10 | Attachment cap, right | 1 | 51217292572 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=Yes S4URA=Yes |
|||||||||
| 11 | grab handle, paint finish, right | 1 | 51217231932 | ENDED | Shop at ECS Tuning | |||||
| 11 | Handle primed right | CA | 1 | 51217249982 | Shop at ECS Tuning | |||||
| 11 | Handle primed left | CA | 1 | 51217249981 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line and Ambient interior lighting |
P7S2A=Yes S4URA=Yes |
|||||||||
| 11 | grab handle, paint finish, right | 1 | 51217231928 | ENDED | Shop at ECS Tuning | |||||
| 11 | Handle primed right | 1 | 51217249978 | Shop at ECS Tuning | ||||||
| 11 | grab handle, paint finish, left | 1 | 51217231929 | ENDED | Shop at ECS Tuning | |||||
| 11 | Handle primed left | 1 | 51217249977 | Shop at ECS Tuning | ||||||
| For vehicles with Luxury Line and Comfort access and Ambient interior lighting |
P7S2A=No S322A=No S4URA=No |
|||||||||
| 11 | grab handle, paint finish, right | CODE - UNI/MET. | 1 | 51217276244 | +core | Shop at ECS Tuning | ||||
| 11 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 51227276241 | +core | Shop at ECS Tuning | ||||
| For vehicles with Comfort access and Ambient interior lighting and black-sapphire metallic |
S322A=Yes S4URA=Yes M475=Yes |
|||||||||
| 11 | grab handle, paint finish, left | 1 | 51217231933 | $301.10 | ENDED | Shop at ECS Tuning | ||||
| 12 | Door opener, front left | SCHWARZ | 1 | 51217216661 | Shop at ECS Tuning | |||||
| 12 | Door handle, front right | SCHWARZ | 1 | 51217216662 | Shop at ECS Tuning | |||||
| 12 | Door opener, front left | EVERESTGRAU | 1 | 51217216663 | Shop at ECS Tuning | |||||
| 12 | Door handle, front right | EVERESTGRAU | 1 | 51217216664 | Shop at ECS Tuning | |||||
| 12 | Door opener, front left | VENETOBEIGE | 1 | 51217216665 | Shop at ECS Tuning | |||||
| 12 | Door handle, front right | VENETOBEIGE | 1 | 51217216666 | Shop at ECS Tuning | |||||
| 12 | Door opener, front left | ELFENBEINWEISS | 1 | 51217216667 | Shop at ECS Tuning | |||||
| 12 | Door handle, front right | ELFENBEINWEISS | 1 | 51217216668 | Shop at ECS Tuning | |||||
| 12 | Door opener, front left | ZIMTBRAUN | 1 | 51217223671 | Shop at ECS Tuning | |||||
| 12 | Door handle, front right | ZIMTBRAUN | 1 | 51217223672 | Shop at ECS Tuning | |||||
| 13 | Adapter plate, front left | 1 | 51217210061 | Shop at ECS Tuning | ||||||
| 13 | Adapter plate, front right | 1 | 51217210062 | Shop at ECS Tuning | ||||||
| 14 | Clip, door handle, outside right | CHROM | 1 | 51217316386 | Shop at ECS Tuning | |||||
| 14 | Clip, door handle, outside left | CHROM | 1 | 51217316387 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
