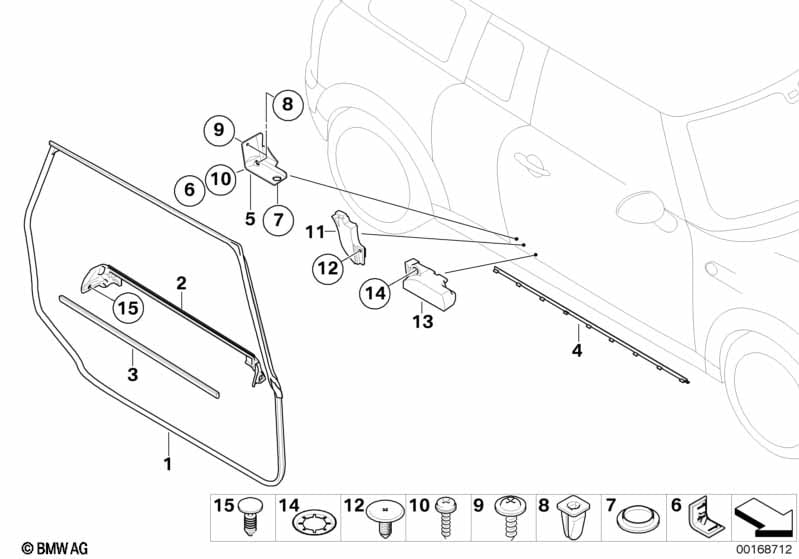

Trim and seals for door, front for BMW MINI Clubman R55 LCI Cooper S
This Trim and seals for door, front technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sealing door, left | 1 | 51767167217 | $87.46 | Shop at ECS Tuning | |||||
| 01 | Sealing door, right | 1 | 51767167218 | $111.30 | Shop at ECS Tuning | |||||
| 02 | Inner left window channel cover | 1 | 51337146089 | $31.38 | Shop at ECS Tuning | |||||
| 02 | Inner right window channel cover | 1 | 51337146090 | $31.38 | Shop at ECS Tuning | |||||
| 03 | Outer weatherstrip, left | 1 | 51337146091 | $35.08 | Shop at ECS Tuning | |||||
| 03 | Outer weatherstrip, right | 1 | 51337146092 | $35.08 | Shop at ECS Tuning | |||||
| 04 | Gasket between door and entrance front | 2 | 51767146093 | $15.91 | Shop at ECS Tuning | |||||
| 05 | Cover, door trim panel | 1 | 51767167216 | $6.97 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 51762757067 | $1.69 | Shop at ECS Tuning | |||||
| 07 | Cover, round | 1 | 51762757066 | $1.69 | Shop at ECS Tuning | |||||
| 08 | Expanding nut | 7X7 MM | 2 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,2X12MM | 1 | 07149128048 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Sheet metal screw | ST4,2X25 SW | 1 | 07119904902 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Insert for door, left | 1 | 04/2009 | 51712755651 | $11.97 | Shop at ECS Tuning | ||||
| 11 | Insert for door, right | 1 | 04/2009 | 51712755652 | $11.97 | Shop at ECS Tuning | ||||
| 12 | Clip | D=30MM | 1 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 13 | Left insert | 1 | 51412755653 | $17.44 | +core | Shop at ECS Tuning | ||||
| 13 | Right insert | 1 | 51412755654 | $17.44 | +core | Shop at ECS Tuning | ||||
| 14 | Axial securing clip | 2 | 51412756212 | $0.21 | Shop at ECS Tuning | |||||
| 15 | Clip | 4 | 07130561277 | $0.21 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
