Closing system, door, rear for BMW MINI Clubman R55 LCI Cooper S

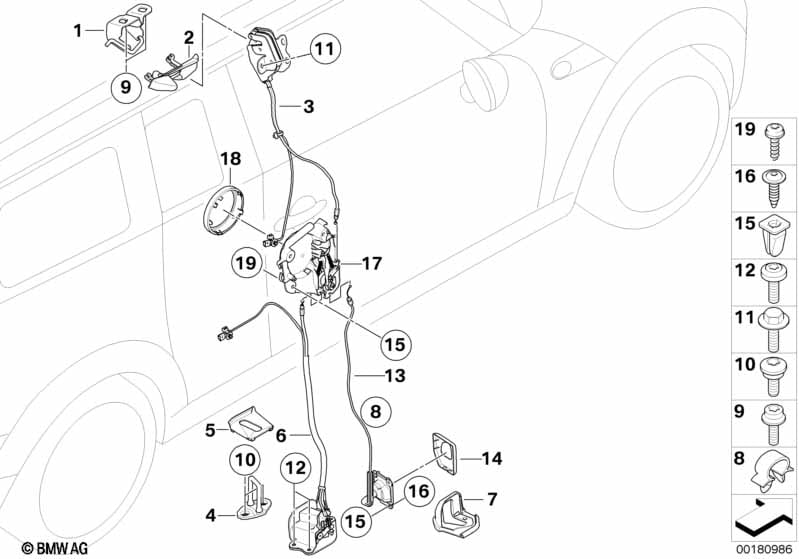

This Closing system, door, rear technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 LCI Cooper S. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Striker, upper | 1 | 51227167490 | $17.46 | Shop at ECS Tuning | |||||
| 02 | Cover, striker, upper | 1 | 51442757520 | $5.10 | Shop at ECS Tuning | |||||
| 03 | Lock, upper | 1 | 51227167491 | $68.10 | Shop at ECS Tuning | |||||
| 04 | Striker, lower | 1 | 51227167489 | $14.51 | Shop at ECS Tuning | |||||
| 05 | Cover, striker, lower | 1 | 51222755506 | $17.33 | Shop at ECS Tuning | |||||
| 06 | Lock, lower | 1 | 51227167488 | $68.10 | Shop at ECS Tuning | |||||
| 07 | Gasket | 1 | 51222757961 | Shop at ECS Tuning | ||||||
| 08 | Cable holder | D=12,8MM | 2 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | 2 | 51222755871 | $0.81 | Shop at ECS Tuning | |||||
| 10 | Torx-countersunk head screw | ISA M8X28 | 2 | 07147184164 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X20 | 3 | 07147151867 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Torx-bolt with washer | ISA M6X16 | 3 | 07147114625 | $0.80 | Shop at ECS Tuning | ||||
| 13 | Lever, door opener | 1 | 51212754307 | $25.93 | Shop at ECS Tuning | |||||
| 14 | Covering Lower | 1 | 51212755568 | $6.84 | Shop at ECS Tuning | |||||
| 15 | Expanding nut | ST 4.8 WEISS | 4 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 16 | Fillister head self-tapp.screw w collar | 4 | 07146957954 | $0.36 | Shop at ECS Tuning | |||||
| 17 | Door opener, Clubdoor | 1 | 01/2012 | 51226963784 | $32.34 | +core | Shop at ECS Tuning | |||
| 17 | Door opener, Clubdoor | 1 | 01/2012 | 51227318300 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line Interieur |
S345A=Yes |
|||||||||
| 18 | Cover, door opener, Clubdoor chrome | 1 | 51422756023 | $8.51 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line Interieur |
S345A=No |
|||||||||
| 18 | Cover, door opener, Clubdoor silver | 1 | 51422756021 | $7.71 | Shop at ECS Tuning | |||||
| 19 | Sheet metal screw | ST4,2X22-R-ZNFE | 4 | 07119905200 | $0.16 | Shop at ECS Tuning | ||||
| 20 | Latch Striker | 1 | 07/2009 | 51217010402 | $16.32 | Shop at ECS Tuning | ||||
| 20 | Latch Striker | 1 | 07/2009 | 51217202485 | Shop at ECS Tuning | |||||
| 21 | Striker plate gasket | 1 | 51217042375 | $0.92 | Shop at ECS Tuning | |||||
| 22 | Countersunk head screw | 2 | 51219463885 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
