Front door control/door lock for BMW 7 Series F02 LCI 740Li (2015)

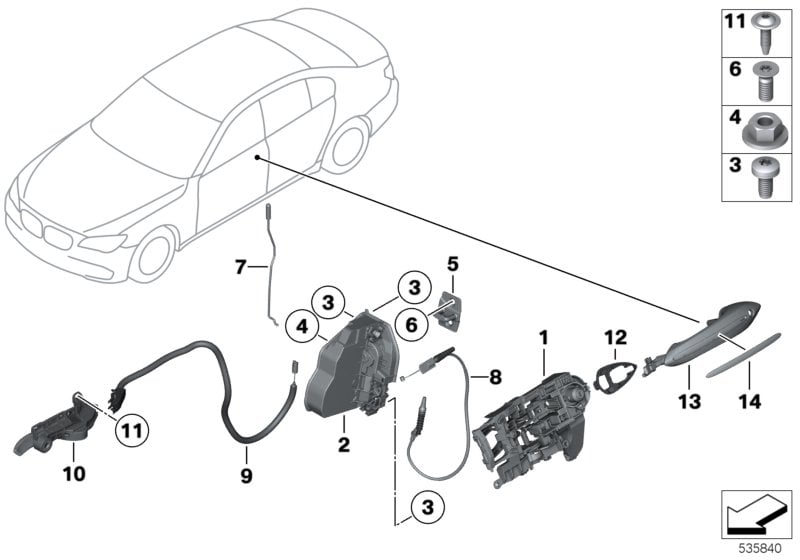

This Front door control/door lock technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 01 | Carrier with catch, coded left | 1 | 51217227121 | Shop at ECS Tuning | ||||||
| 01 | Carrier with catch, with key left | 1 | 51217227499 | $217.43 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 01 | Carrier, outside door handle, right | 1 | 51217175732 | $134.97 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access ONLY APPLIES TO DRIVER'S SIDE |
S322A=Yes |
|||||||||
| 01 | Carrier with catch, coded left | 1 | 51217227501 | $476.67 | Shop at ECS Tuning | |||||
| 01 | Carrier with catch, with key left | 1 | 51217227503 | $492.17 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access ONLY APPLIES TO CO-DRIVERS SIDE |
S322A=Yes |
|||||||||
| 01 | Carrier, outside door handle, right | 1 | 51217187228 | $160.62 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO DRIVER'S SIDE |
S302A=Yes S323A=No S8TGA=Yes |
|||||||||
| 02 | System latch, left | 1 | 51217202143 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO DRIVER'S SIDE |
S302A=Yes S323A=No S8TGA=No |
|||||||||
| 02 | System latch, left | 1 | 51217202143 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO DRIVER'S SIDE |
S302A=No S323A=No S8TGA=Yes |
|||||||||
| 02 | System latch, left | 1 | 51217202143 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO CO-DRIVERS SIDE |
S302A=Yes S323A=No S8TGA=Yes |
|||||||||
| 02 | System latch, right | 1 | 51217202146 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO CO-DRIVERS SIDE |
S302A=Yes S323A=No S8TGA=No |
|||||||||
| 02 | System latch, right | 1 | 51217202146 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO CO-DRIVERS SIDE |
S302A=No S323A=No S8TGA=Yes |
|||||||||
| 02 | System latch, right | 1 | 51217202146 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO DRIVER'S SIDE |
S302A=Yes S323A=Yes S8TGA=Yes |
|||||||||
| 02 | Lock, complete, front left | 1 | 51215A36E17 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO DRIVER'S SIDE |
S302A=Yes S323A=Yes S8TGA=No |
|||||||||
| 02 | Lock, complete, front left | 1 | 51215A36E17 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO DRIVER'S SIDE |
S302A=No S323A=Yes S8TGA=Yes |
|||||||||
| 02 | Lock, complete, front left | 1 | 51215A36E17 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO DRIVER'S SIDE |
S302A=No S323A=Yes S8TGA=No |
|||||||||
| 02 | Lock, complete, front left | 1 | 51215A36E17 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO CO-DRIVERS SIDE |
S302A=Yes S323A=Yes S8TGA=Yes |
|||||||||
| 02 | Lock, complete, front right | 1 | 51215A36E22 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO CO-DRIVERS SIDE |
S302A=Yes S323A=Yes S8TGA=No |
|||||||||
| 02 | Lock, complete, front right | 1 | 51215A36E22 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO CO-DRIVERS SIDE |
S302A=No S323A=Yes S8TGA=Yes |
|||||||||
| 02 | Lock, complete, front right | 1 | 51215A36E22 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device ONLY APPLIES TO CO-DRIVERS SIDE |
S302A=No S323A=Yes S8TGA=No |
|||||||||
| 02 | Lock, complete, front right | 1 | 51215A36E22 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Soft-Close-Automatic doors and Thiefproofing device |
S302A=No S323A=No S8TGA=No |
|||||||||
| 02 | System latch, right | 1 | 51217229458 | $176.25 | Shop at ECS Tuning | |||||
| 02 | System latch, left | 1 | 51217229461 | Shop at ECS Tuning | ||||||
| 03 | Torx bolt | M6X13 ZNNID SW | 6 | 07147186859 | $0.53 | Shop at ECS Tuning | ||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
|||||||||
| 04 | Hex nut with plate | M5 | 2 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Catch bracket | 2 | 51217312545 | Shop at ECS Tuning | ||||||
| 06 | Torx-countersunk head screw | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 07 | Operating rod, door front left | 1 | 51217175729 | $4.82 | Shop at ECS Tuning | |||||
| 07 | Operating rod, door front right | 1 | 51217175730 | $4.82 | Shop at ECS Tuning | |||||
| 08 | Bowden cable, outside door handle | 2 | 02/2010 | 51217297439 | Shop at ECS Tuning | |||||
| 09 | Bowden cable, door opener, front | 1 | 51217175734 | $19.02 | Shop at ECS Tuning | |||||
| 10 | Door handle, inside left | VORNE | 1 | 51219116341 | $40.37 | Shop at ECS Tuning | ||||
| 10 | Door handle inner right | VORNE | 1 | 51219116342 | $40.37 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | ST6X23-ZNS3 | 2 | 07149158760 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 12 | Attachment cap, left | 1 | 51217292571 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 12 | Cover for grip, lower right | 1 | 51217292576 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 13 | grab handle, paint finish, left | 1 | 51217231927 | ENDED | Shop at ECS Tuning | |||||
| 13 | Handle primed left | 1 | 51217249975 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 13 | grab handle, paint finish, right | 1 | 51217231930 | ENDED | Shop at ECS Tuning | |||||
| 13 | Handle primed right | 1 | 51217249976 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access ONLY APPLIES TO DRIVER'S SIDE |
S322A=Yes |
|||||||||
| 13 | Handle primed left | CA | 1 | 51217249979 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access ONLY APPLIES TO CO-DRIVERS SIDE |
S322A=Yes |
|||||||||
| 13 | Handle primed right | CA | 1 | 51217249980 | Shop at ECS Tuning | |||||
| 14 | Clip, door handle, outside left | CHROM | 1 | 51217316385 | Shop at ECS Tuning | |||||
| 14 | Clip, door handle, outside right | CHROM | 1 | 51217316388 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
