Emblems / letterings for BMW 5 Series F10 LCI 530d (2013)
This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 12 | Label | - 530D - | 1 | 51147219547 | Shop at ECS Tuning | |||||
| only applies to trunk lid | ||||||||||
| 19 | Badge | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| only applies to hood | ||||||||||

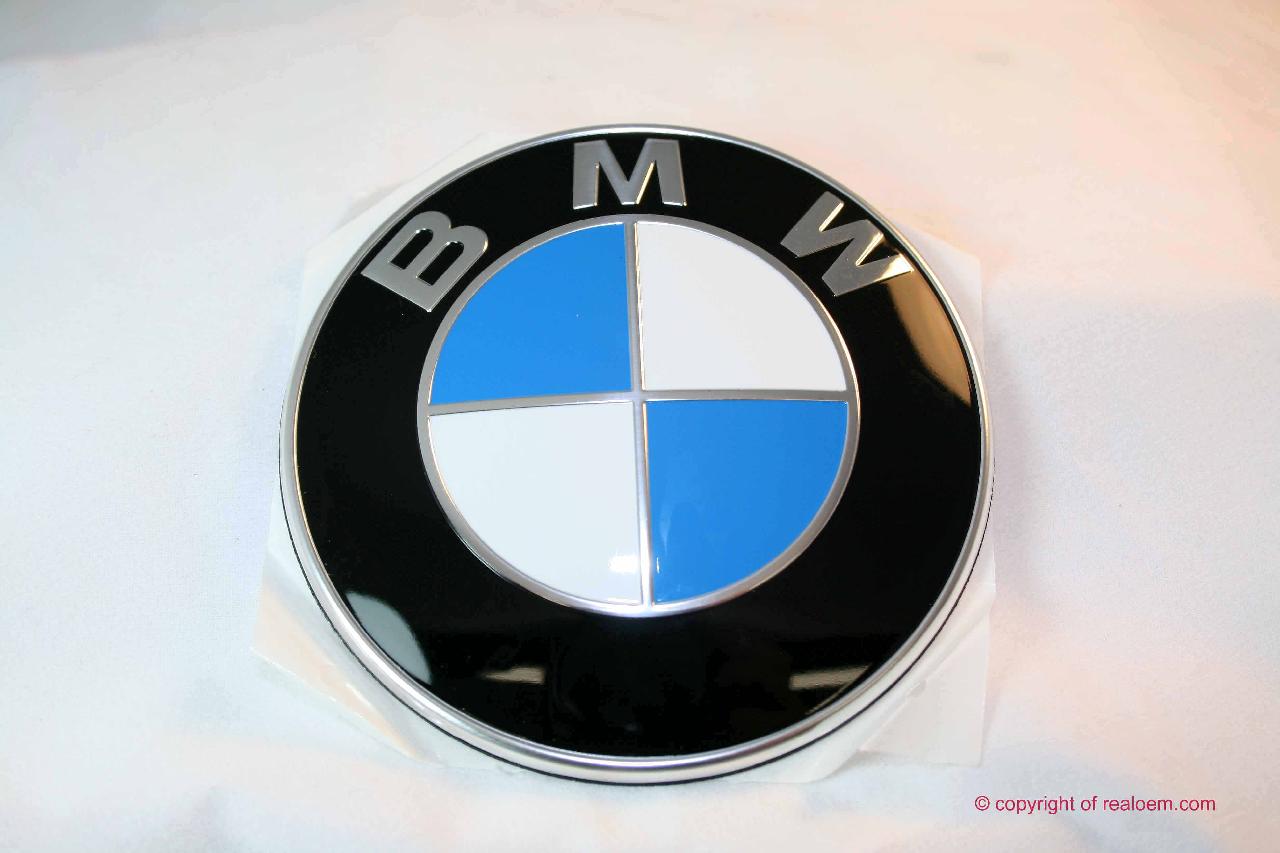

| 19 | Badge | D=82 MM | 1 | 51147057794 | $32.02 | Shop at ECS Tuning | ||||
| 20 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 21 | Inscription, side | MODERN LINE | 2 | 51147294499 | Shop at ECS Tuning | |||||
| 22 | Inscription, side | LUXURY LINE | 2 | 51147294500 | Shop at ECS Tuning | |||||
| 23 | Emblem | - M - | 2 | 51148058881 | Shop at ECS Tuning | |||||
