Int. strips, bamboo, grained, anthracite for BMW 3 Series E93 LCI 330d (2013)

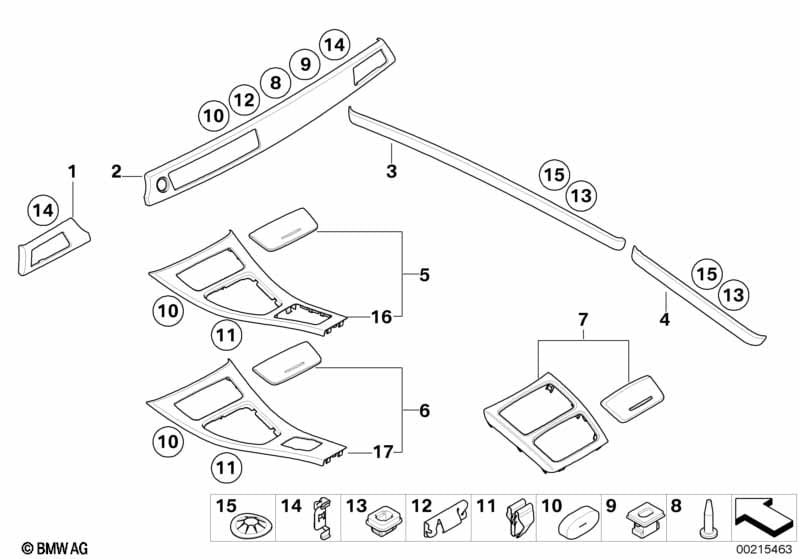

This Int. strips, bamboo, grained, anthracite technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 01 | Trim, I-panel, bamboo, grained, right | ANTHRAZIT | 1 | 51459214796 | Shop at ECS Tuning | |||||
| 02 | Trim, I-panel, bamboo, grained, left | ANTHRAZIT | 1 | 51459214798 | Shop at ECS Tuning | |||||
| 03 | Decorative strip, door front left | BAMBUS ANTHR. | 1 | 51417251231 | Shop at ECS Tuning | |||||
| 03 | Decorative strip, door front right | BAMBUS ANTHR. | 1 | 51417251232 | Shop at ECS Tuning | |||||
| 04 | Decor strip, left | BAMBUS ANTHR. | 1 | 51437251001 | Shop at ECS Tuning | |||||
| 04 | Decor strip, right | BAMBUS ANTHR. | 1 | 51437251002 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite |
S441A=Yes S4BYA=Yes |
|||||||||
| 05 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214783 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S4BYA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 06 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214787 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S4BYA=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 06 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214787 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S4BYA=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 06 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214787 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 07 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169223996 | Shop at ECS Tuning | |||||
| 08 | Threaded bolt | 6 | 51417122657 | $1.11 | Shop at ECS Tuning | |||||
| 08 | Pin | 16 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 08 | Threaded bolt | M5X19 | 6 | 51439127763 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Plug-in retainer | 8 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 10 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 11 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 12 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 13 | Plug-in retainer | 4 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 14 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 15 | Axial securing clip | 15X5,7MM | 34 | 07149158226 | Shop at ECS Tuning | |||||
| 15 | Circlip | D=4MM | 34 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Axial securing clip | 5,75MM | 34 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 16 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214784 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4BYA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 17 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214788 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4BYA=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 17 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214788 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4BYA=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 17 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214788 | Shop at ECS Tuning | |||||
