Trunk lid trim panel for BMW 5 Series F10 530d (2013)

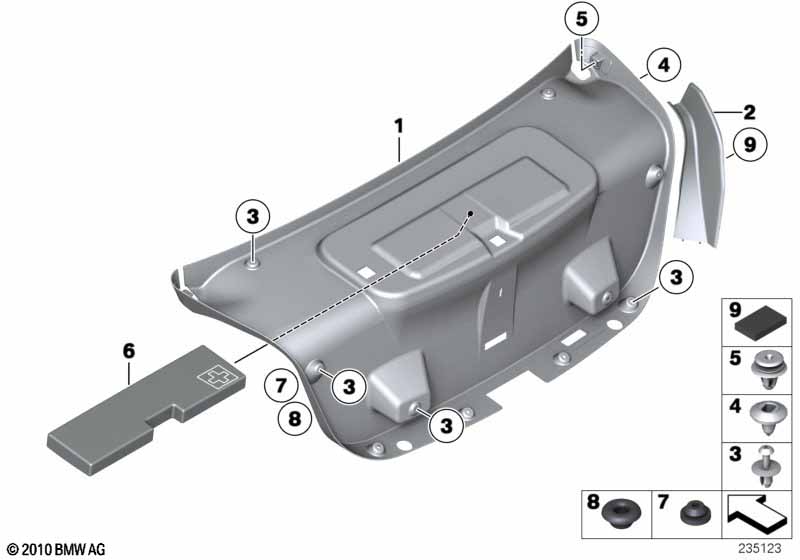

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid trim panel | 1 | 51497204372 | Shop at ECS Tuning | ||||||
| For vehicles with automatic trunk lid mechanism or Comfort access |
S316A=Yes S322A=Yes |
|||||||||
| 01 | Trunk lid trim panel | 1 | 51497204373 | Shop at ECS Tuning | ||||||
| 02 | Trim, drip rail, left | 1 | 51497453355 | Shop at ECS Tuning | ||||||
| 02 | Trim, drip rail, right | 1 | 51497453356 | Shop at ECS Tuning | ||||||
| 03 | Expanding rivet | 10 | 07149193301 | Shop at ECS Tuning | ||||||
| 04 | Clip, bottom part | 2 | 51717154239 | $0.79 | Shop at ECS Tuning | |||||
| For vehicles with Warning triangle and first aid kit |
S428A=Yes |
|||||||||
| 06 | First aid kit | 1 | 51497276541 | Shop at ECS Tuning | ||||||
| 07 | Blind plug | D=6MM | 2 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 08 | Blind plug | D=10MM | 2 | 51718226004 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Support | 2 | 51497278071 | Shop at ECS Tuning | ||||||
