Int. strips, bamboo, grained, anthracite for BMW 3 Series E90 LCI 335xi (2010)

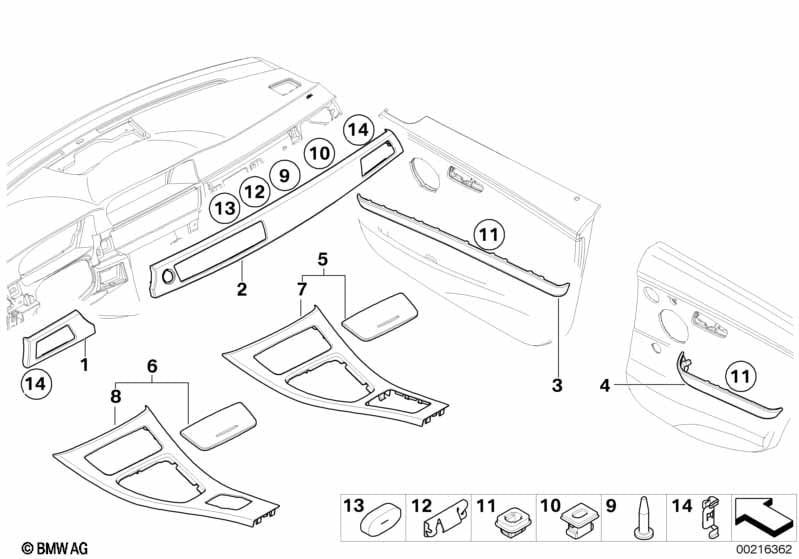

This Int. strips, bamboo, grained, anthracite technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 01 | Trim, I-panel, bamboo, grained, left | ANTHRAZIT | 1 | 51459214795 | Shop at ECS Tuning | |||||
| 02 | Trim, I-panel, bamboo, grained, right | ANTHRAZIT | 1 | 51459214797 | Shop at ECS Tuning | |||||
| 03 | Decorative strip, door front left | BAMBUS MASER | 1 | 51417258139 | Shop at ECS Tuning | |||||
| 03 | Decorative strip, door front right | BAMBUS MASER | 1 | 51417258140 | Shop at ECS Tuning | |||||
| 04 | Decorative strip, door rear left | BAMBUS MASER | 1 | 51427258141 | Shop at ECS Tuning | |||||
| 04 | Decorative strip, door rear right | BAMBUS MASER | 1 | 51427258142 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite |
S441A=Yes S4BYA=Yes |
|||||||||
| 05 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214770 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S4BYA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 06 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214774 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S4BYA=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 06 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214774 | Shop at ECS Tuning | |||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S4BYA=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 06 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 51169214774 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 07 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214771 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4BYA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 08 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214775 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4BYA=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 08 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214775 | Shop at ECS Tuning | |||||
| For vehicles with Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4BYA=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 08 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 51169214775 | Shop at ECS Tuning | |||||
| 09 | Pin | D=6X22 | 7 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 09 | Pin | D=6X25 | 7 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 7 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 11 | Plug-in retainer | 7 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 13 | Gasket, decor panel | 7 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 14 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
