Sound insulating front for BMW 5 Series F10 LCI 520d (2014)

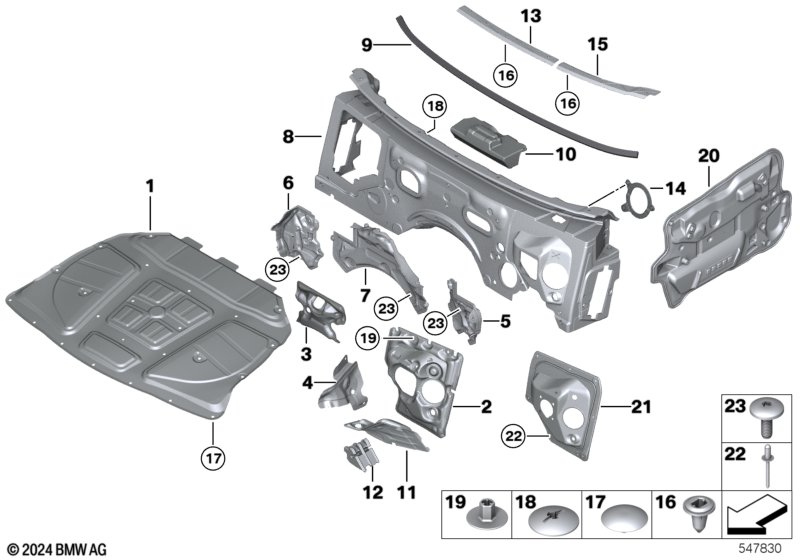

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2014.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51486989301 | Shop at ECS Tuning | ||||||
| 02 | Sound insulat.dash panel engine room R. | 1 | 51489139216 | Shop at ECS Tuning | ||||||
| 03 | Sound insulat.dash panel engine room ce. | 1 | 51489139205 | Shop at ECS Tuning | ||||||
| 04 | Sound insul.,eng.-comp. part. wall,left | 1 | 51489110177 | Shop at ECS Tuning | ||||||
| 04 | Sound insul.,eng.-comp. part.wall,right | 1 | 51489110178 | Shop at ECS Tuning | ||||||
| 05 | Noise insulation, firewall, lower left | 1 | 51717211899 | Shop at ECS Tuning | ||||||
| 06 | Noise insulation, firewall, lower right | 1 | 51717211900 | Shop at ECS Tuning | ||||||
| 07 | Sound insulat., bottom sect. of bulkhead | 1 | 51717188421 | Shop at ECS Tuning | ||||||
| 08 | Sound insulat., splash wall, upper part | 1 | 51489113810 | Shop at ECS Tuning | ||||||
| 09 | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| 10 | Sound insulation for heater | 1 | 51489113239 | Shop at ECS Tuning | ||||||
| 11 | Noise insulation, wheelhousing, left | 1 | 51487234327 | Shop at ECS Tuning | ||||||
| 11 | Noise insulation, wheelhousing, right | 1 | 51487234328 | Shop at ECS Tuning | ||||||
| 12 | Seal, wheelhousing, left | 1 | 51487232607 | Shop at ECS Tuning | ||||||
| 12 | Seal, wheelhousing, right | 1 | 51487232608 | Shop at ECS Tuning | ||||||
| 13 | Hold.-down elem.,sound insul.,fr.bulkh. | 1 | 51489121687 | Shop at ECS Tuning | ||||||
| 14 | Retainer for acoustic insulation | 1 | 51489121688 | Shop at ECS Tuning | ||||||
| 14 | Retainer for acoustic insulation | RHD | 1 | 51489125752 | Shop at ECS Tuning | |||||
| 15 | Hold.-dwn el.,sound ins.,fr.bulkh.,left | 1 | 51489121685 | Shop at ECS Tuning | ||||||
| 15 | Hold.-dwn el.,sound ins., fr.bulkh.,rgh | 1 | 51489121686 | Shop at ECS Tuning | ||||||
| 16 | Clip | 7 | 51488252749 | $0.69 | Shop at ECS Tuning | |||||
| 17 | Clip | 23 | 51489119216 | $0.37 | Shop at ECS Tuning | |||||
| 18 | Push-button, gray | 8 | 51488126849 | $0.42 | Shop at ECS Tuning | |||||
| 19 | Clip nut | 5X15 D=30 SW10 | 8 | 07147139081 | $0.20 | Shop at ECS Tuning | ||||
| 20 | Sound insulating door front left | 1 | 51487366705 | Shop at ECS Tuning | ||||||
| 20 | Sound insulating door front right | 1 | 51487366706 | Shop at ECS Tuning | ||||||
| 21 | Cover plate, firewall | 1 | 51717184113 | Shop at ECS Tuning | ||||||
| 22 | Blind rivet | 7 | 07149191219 | Shop at ECS Tuning | ||||||
| 23 | Oval-head machine screw, self-locking | M6X18MM ISA | 12 | 07149188001 | Shop at ECS Tuning |
