Emblems / letterings for BMW 6 Series G32 GT 630i (2018)

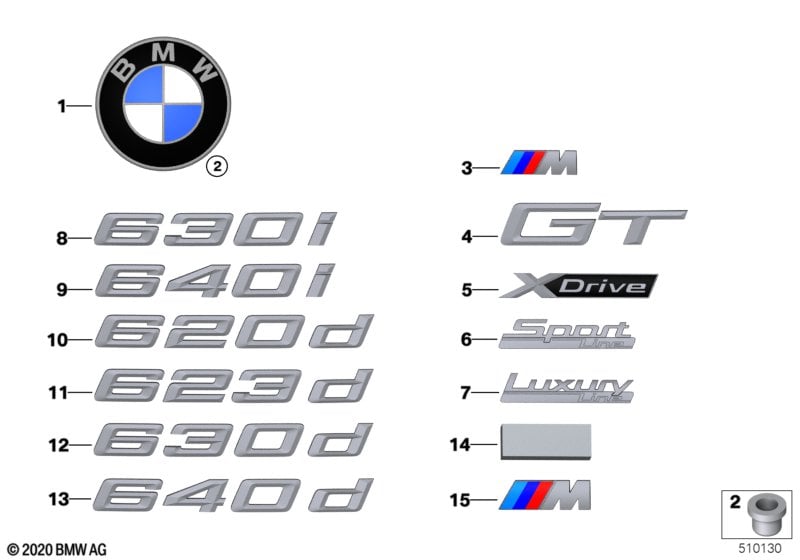

This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Suitable for trunk lid | ||||||||||
| 01 | Badge | Ø 74MM | 1 | 51147463715 | Shop at ECS Tuning | |||||
| suitable for hood | ||||||||||
| 01 | Badge | Ø 82MM | 1 | 51147463684 | Shop at ECS Tuning | |||||
| Suitable for trunk lid | ||||||||||
| 02 | Grommet | 2 | 51148209932 | $0.22 | Shop at ECS Tuning | |||||
| suitable for hood | ||||||||||
| 02 | Grommet | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 03 | Emblem | - M - | 2 | 51148070804 | Shop at ECS Tuning | |||||
| 04 | Label | GT | 1 | 51147415345 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line |
P7ACA=Yes |
|||||||||
| 06 | Label | SPORT LINE | 2 | 51147430760 | Shop at ECS Tuning | |||||
| For vehicles with Luxury Line |
P7S2A=Yes |
|||||||||
| 07 | Label | LUXURY LINE | 2 | 51147430761 | Shop at ECS Tuning | |||||
| 08 | Label | 630I | 1 | 51147415339 | Shop at ECS Tuning | |||||
| 14 | Padding | 30X8X2 | 1 | 51357163179 | Shop at ECS Tuning | |||||
