Interior mirror for BMW 5 Series F10 520i (2012)

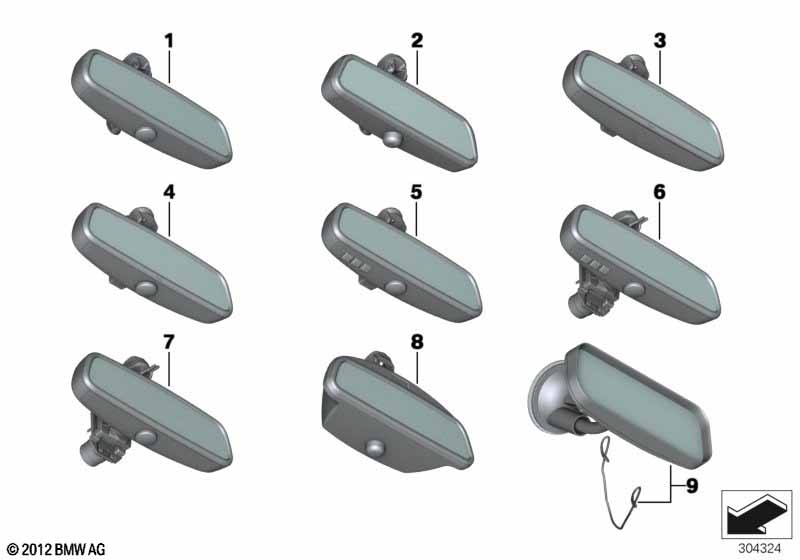

This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=Yes S319A=No S430A=No S431A=No S5ACA=No |
|||||||||
| 02 | Rearview mirror, manual / LED | 1 | 07/2012 | 51169218231 | Shop at ECS Tuning | |||||
| For vehicles with Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
S302A=No S319A=No S430A=No S431A=No S5ACA=No |
|||||||||
| 02 | Rearview mirror, manual / LED | 1 | 07/2012 | 51169218231 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
L807A=No S302A=No S319A=No S430A=Yes S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 07/2012 | 51169224340 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
L807A=No S302A=No S319A=No S430A=Yes S431A=No S5ACA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 07/2012 | 51169224340 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
L807A=No S302A=No S319A=No S430A=No S431A=Yes S5ACA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 07/2012 | 51169224340 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S302A=No S319A=No S5ACA=Yes S5ADA=Yes S8THA=Yes |
|||||||||
| 03 | Rearview mirror EC | 1 | 07/2012 | 51169224340 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S302A=No S319A=No S5ACA=Yes S5ADA=Yes S8THA=No |
|||||||||
| 03 | Rearview mirror EC | 1 | 07/2012 | 51169224340 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S302A=No S319A=No S5ACA=Yes S5ADA=No S8THA=Yes |
|||||||||
| 03 | Rearview mirror EC | 1 | 07/2012 | 51169224340 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
L807A=No S302A=Yes S319A=No S430A=Yes S431A=Yes S5ACA=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 07/2012 | 51169224341 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
L807A=No S302A=Yes S319A=No S430A=Yes S431A=No S5ACA=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 07/2012 | 51169224341 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and High-beam assistant |
L807A=No S302A=Yes S319A=No S430A=No S431A=Yes S5ACA=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 07/2012 | 51169224341 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S302A=Yes S319A=No S5ACA=Yes S5ADA=Yes S8THA=Yes |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 07/2012 | 51169224341 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S302A=Yes S319A=No S5ACA=Yes S5ADA=Yes S8THA=No |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 07/2012 | 51169224341 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Alarm system and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S302A=Yes S319A=No S5ACA=Yes S5ADA=No S8THA=Yes |
|||||||||
| 04 | Rearview mirror EC / LED | 1 | 07/2012 | 51169224341 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Integrated universal remote control and High-beam assistant |
L807A=No S319A=Yes S5ACA=No |
|||||||||
| 05 | Rearview mirror EC / LED / GTO | 1 | 07/2012 | 51169224342 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S319A=Yes S5ACA=Yes S5ADA=Yes S8THA=Yes |
|||||||||
| 05 | Rearview mirror EC / LED / GTO | 1 | 07/2012 | 51169224342 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S319A=Yes S5ACA=Yes S5ADA=Yes S8THA=No |
|||||||||
| 05 | Rearview mirror EC / LED / GTO | 1 | 07/2012 | 51169224342 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S319A=Yes S5ACA=Yes S5ADA=No S8THA=Yes |
|||||||||
| 05 | Rearview mirror EC / LED / GTO | 1 | 07/2012 | 51169224342 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S319A=Yes S5ACA=Yes S5ADA=No S8THA=No |
|||||||||
| 06 | Rearview mirror EC / LED / GTO / FLA | 1 | 07/2012 | 51169228259 | Shop at ECS Tuning | |||||
| For vehicles with High-beam assistant and Lane departure warning and Road sign detection |
S5ACA=Yes S5ADA=No S8THA=No |
|||||||||
| 07 | Rearview mirror EC / LED / FLA | 1 | 09/2012 | 51169228257 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Integrated universal remote control and High-beam assistant and Lane departure warning and Road sign detection |
L807A=No S319A=No S5ACA=Yes S5ADA=No S8THA=No |
|||||||||
| 07 | Rearview mirror EC / LED / FLA | 1 | 07/2012 | 51169228257 | Shop at ECS Tuning | |||||
| For vehicles with National version japan Attention! Alternative interior mirror does not have ETC function; it is only used as a replacement for a damaged mirror, not for faulty ETC function! |
L807A=Yes |
|||||||||
| 08 | Rearview mirror EC / LED | 1 | 01/2011 | 07/2012 | 51169224341 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of covers mirror baseplate | BLACK | 1 | 01/2011 | 07/2012 | 51169177321 | Shop at ECS Tuning | |||
| For vehicles with National version japan Note: Deleted due to discontinuation of parts at short notice by the supplier. |
L807A=Yes |
|||||||||
| 08 | Rearview mirror EC / LED / ETC | 1 | 01/2011 | 07/2012 | 51169262041 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version japan and Lane departure warning and Road sign detection Attention! Alternative interior mirror does not have ETC function; it is only used as a replacement for a damaged mirror, not for faulty ETC function! |
L807A=Yes S5ADA=Yes S8THA=Yes |
|||||||||
| 08 | Rearview mirror EC / LED | 1 | 01/2011 | 07/2012 | 51169224341 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of covers mirror baseplate | SCHWARZ | 1 | 01/2011 | 07/2012 | 51169177204 | $10.99 | Shop at ECS Tuning | ||
| For vehicles with National version japan and Lane departure warning and Road sign detection Attention! Alternative interior mirror does not have ETC function; it is only used as a replacement for a damaged mirror, not for faulty ETC function! |
L807A=Yes S5ADA=Yes S8THA=No |
|||||||||
| 08 | Rearview mirror EC / LED | 1 | 01/2011 | 07/2012 | 51169224341 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of covers mirror baseplate | SCHWARZ | 1 | 01/2011 | 07/2012 | 51169177204 | $10.99 | Shop at ECS Tuning | ||
| For vehicles with National version japan and Lane departure warning and Road sign detection Attention! Alternative interior mirror does not have ETC function; it is only used as a replacement for a damaged mirror, not for faulty ETC function! |
L807A=Yes S5ADA=No S8THA=Yes |
|||||||||
| 08 | Rearview mirror EC / LED | 1 | 01/2011 | 07/2012 | 51169224341 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of covers mirror baseplate | SCHWARZ | 1 | 01/2011 | 07/2012 | 51169177204 | $10.99 | Shop at ECS Tuning | ||
| For vehicles with Auxiliary inside mirror |
S123A=Yes |
|||||||||
| 09 | Additional interior rearview mirror | 1 | 51167267198 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
