Interior moldings, platin-bronze for BMW 3 Series E90 LCI 325i (2009)

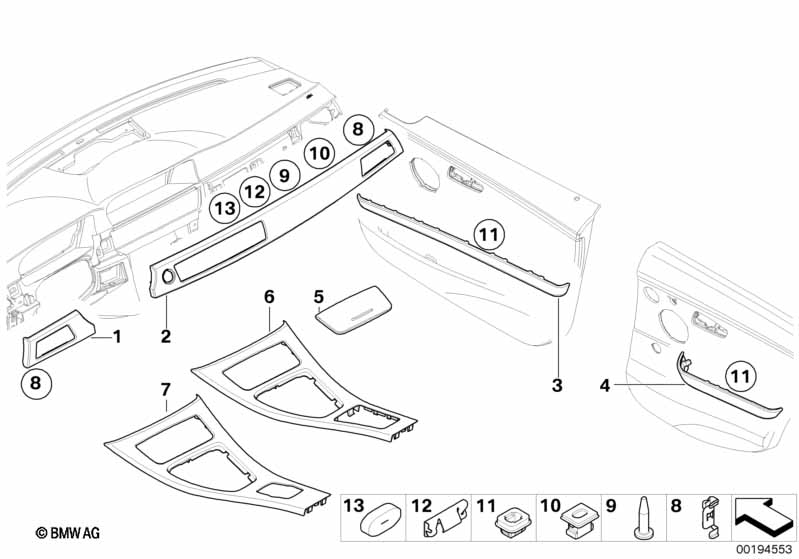

This Interior moldings, platin-bronze technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 08 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 09 | Pin | D=6X22 | 7 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 09 | Pin | D=6X25 | 7 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 7 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 11 | Plug-in retainer | 7 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 12 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 13 | Gasket, decor panel | 7 | 51166952674 | $0.73 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 325i Interior moldings, platin-bronze?
- This technical diagram illustrates the Interior moldings, platin-bronze within the Vehicle trim group for the 3 Series E90 LCI 325i produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Clip, outer decor strip (Part #51457146752).
- Which models use the hardware listed in this Interior moldings, platin-bronze?
- The hardware and components featured in the Interior moldings, platin-bronze are specific to the 3 Series E90 LCI 325i produced during 2009. These technical specifications ensure that parts like the Clip, outer decor strip (51457146752) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Interior moldings, platin-bronze assembly?
- Each item in the Interior moldings, platin-bronze corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 325i, you can identify the Clip, outer decor strip by locating its position on the schematic, which then links to the official BMW part number 51457146752 for the Vehicle trim section.
