Trim cover, front for BMW MINI R56 LCI Cooper (2010)

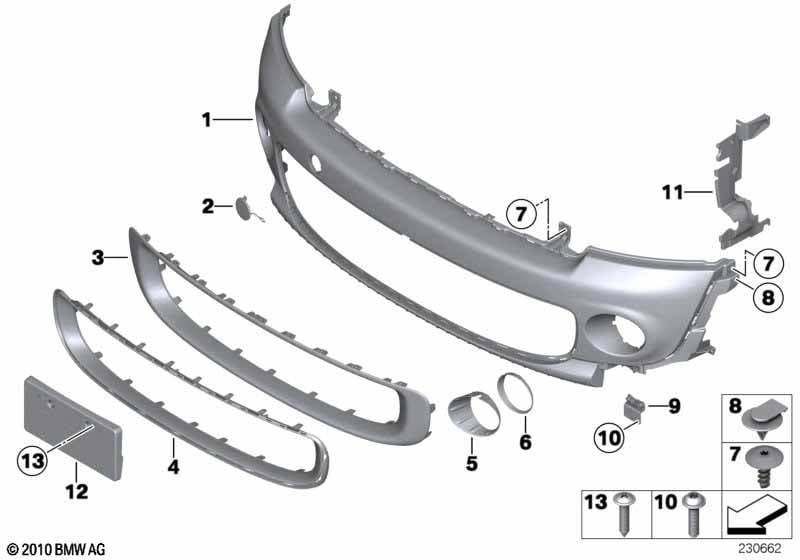

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the MINI R56 LCI Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Aerodynamics package |
S7ARA=No |
||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51117268746 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112411406 | Shop at ECS Tuning | |||||
| 02 | Flap, towing eye, primed | 1 | 51117268745 | Shop at ECS Tuning | ||||||
| 03 | Trim cover, air intake, primed | 1 | 51117268751 | Shop at ECS Tuning | ||||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 03 | Trim cover, air intake, primed | CHROM | 1 | 51117268752 | Shop at ECS Tuning | |||||
| 04 | Frame | CHROM | 1 | 51117250787 | Shop at ECS Tuning | |||||
| 05 | Cover, fog lamp, left | CHROM | 1 | 51117248791 | Shop at ECS Tuning | |||||
| 05 | Cover, fog lamp, right | CHROM | 1 | 51117248792 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=No |
|||||||||
| 06 | Cover, fog lamp, primed left | 1 | 51117268747 | Shop at ECS Tuning | ||||||
| 06 | Cover, fog lamp, primed right | 1 | 51117268748 | Shop at ECS Tuning | ||||||
| 07 | PT screw | M5X16 | X | 51642752568 | $0.86 | Shop at ECS Tuning | ||||
| 08 | Clip | 2 | 07132757821 | $0.75 | Shop at ECS Tuning | |||||
| 09 | Bracket for front fog lamp | 2 | 51117248797 | Shop at ECS Tuning | ||||||
| 10 | PT screw | M5X16 | 10 | 51642753389 | $0.69 | Shop at ECS Tuning | ||||
| 11 | Air duct, left | 1 | 51747250781 | Shop at ECS Tuning | ||||||
| 11 | Air duct, right | 1 | 51747250782 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 12 | License plate holder | CHINA | 1 | 51132756949 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 12 | License plate holder | 1 | 51137286793 | Shop at ECS Tuning | ||||||
| 13 | Fillister head self-tapping screw | ST4,8X16MM | 4 | 07142756133 | $0.29 | Shop at ECS Tuning | ||||
