Sound insulating rear for BMW 5 Series F11 523i (2011)

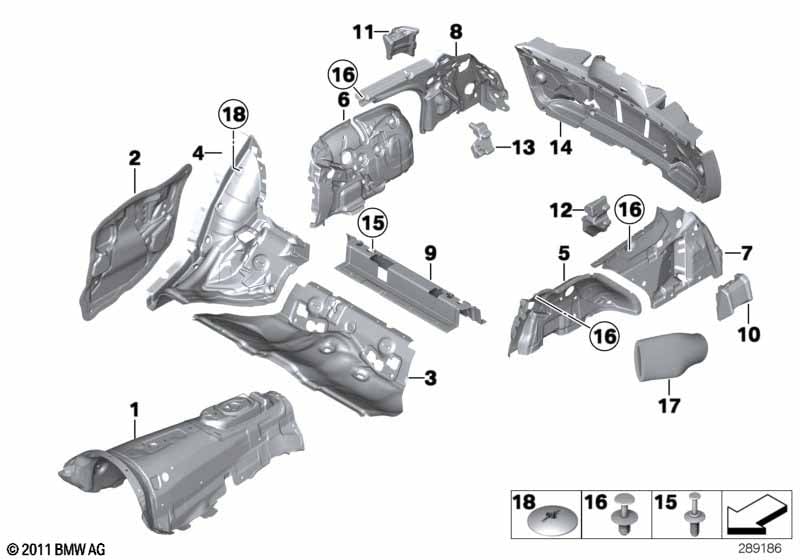

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation, tunnel | 1 | 51486989303 | Shop at ECS Tuning | ||||||
| 02 | Sound insulating door rear left | 1 | 51487366707 | Shop at ECS Tuning | ||||||
| 02 | Sound insulating door rear right | 1 | 51487366708 | Shop at ECS Tuning | ||||||
| 03 | Sound insulation floor rear | 1 | 51489162743 | Shop at ECS Tuning | ||||||
| 04 | Sound insulating wheel housing rear left | 1 | 51489162747 | +core | Shop at ECS Tuning | |||||
| 04 | Sound insulating wheel housing rear rig. | 1 | 51489162748 | +core | Shop at ECS Tuning | |||||
| 05 | Sound insulation trunk left | 1 | 51489168513 | Shop at ECS Tuning | ||||||
| 06 | Sound insulation trunk right | 1 | 51489168514 | Shop at ECS Tuning | ||||||
| 07 | Sound insulation, side panel, rear left | 1 | 51489168517 | Shop at ECS Tuning | ||||||
| 08 | Sound insulation, side panel, rear right | 1 | 51489168518 | Shop at ECS Tuning | ||||||
| 09 | Trunk cross member sound insulation | 1 | 51489168515 | Shop at ECS Tuning | ||||||
| 10 | Grid lower part left | 1 | 51477279363 | Shop at ECS Tuning | ||||||
| 11 | Noise insulation, waistrail, right | 1 | 51487267442 | Shop at ECS Tuning | ||||||
| 12 | Noise insulation, waistrail, left | 1 | 51487267441 | +core | Shop at ECS Tuning | |||||
| 13 | Grid lower part right | 1 | 51477279364 | Shop at ECS Tuning | ||||||
| 14 | Sound insulating for trunk lid | 1 | 51487209186 | Shop at ECS Tuning | ||||||
| 15 | Expanding rivet | D = 6MM | X | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Expanding rivet | D = 8MM | X | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Noise insulation absorber hose | 2 | 51477288149 | Shop at ECS Tuning | ||||||
| 18 | Push-button, gray | 8 | 51488126849 | $0.42 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F11 523i Sound insulating rear?
- This technical diagram illustrates the Sound insulating rear within the Vehicle trim group for the 5 Series F11 523i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Sound insulation, tunnel (Part #51486989303).
- Which models use the hardware listed in this Sound insulating rear?
- The hardware and components featured in the Sound insulating rear are specific to the 5 Series F11 523i produced during 2011. These technical specifications ensure that parts like the Sound insulation, tunnel (51486989303) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Sound insulating rear assembly?
- Each item in the Sound insulating rear corresponds to the numbered list below the illustration. For the 5 Series F11 523i, you can identify the Sound insulation, tunnel by locating its position on the schematic, which then links to the official BMW part number 51486989303 for the Vehicle trim section.
