Headlining for BMW 5 Series F11 550i (2013)

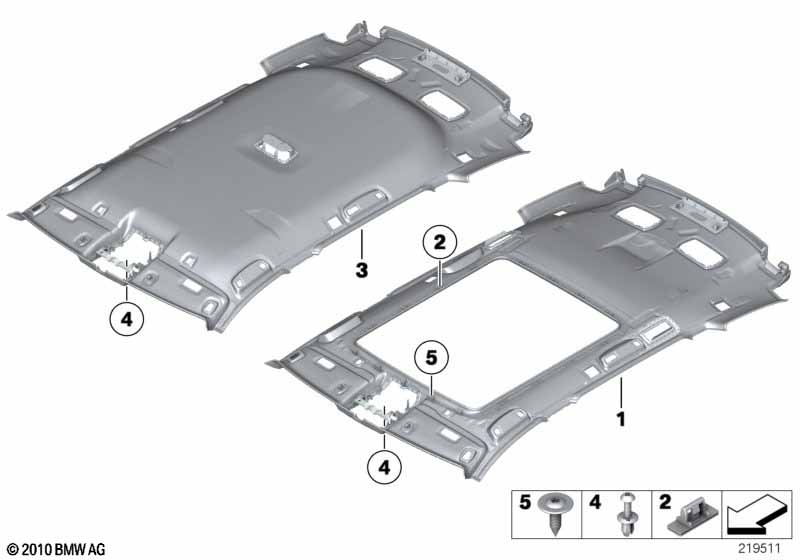

This Headlining technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=Yes S775A=Yes |
|||||||||
| 01 | Headlining panoramic roof | ANTHRAZIT | 1 | 51448038181 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof or Headliner in Alcantara anthracite |
S402A=Yes S776A=Yes |
|||||||||
| 01 | Headlining panoramic roof | ALCANTARA | 1 | 51448038140 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and oyster or Veneto-beige or oyster/oyster |
S402A=Yes CX=Yes DF=Yes DH=Yes |
|||||||||
| 01 | Headlining panoramic roof | OYSTER | 1 | 51449202130 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and anthracite or everest-grau or zimt-braun or Black |
S402A=Yes AT=Yes DE=Yes EZ=Yes SW=Yes |
|||||||||
| 01 | Headlining panoramic roof | EVERESTGRAU | 1 | 51449202129 | Shop at ECS Tuning | |||||
| 02 | Clip, panoramic glass sunroof | 12 | 07147212593 | $0.36 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof or Headliner in Alcantara anthracite |
S402A=Yes S776A=Yes |
|||||||||
| 03 | Headlining | ALCANTARA | 1 | 51448038138 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite or Headliner in Alcantara anthracite |
S775A=Yes S776A=Yes |
|||||||||
| 03 | Headlining | ANTHRAZIT | 1 | 51448038180 | Shop at ECS Tuning | |||||
| For vehicles with oyster or Veneto-beige or oyster/oyster |
CX=Yes DF=Yes DH=Yes |
|||||||||
| 03 | Headlining | OYSTER | 1 | 51449203544 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or everest-grau or zimt-braun or Black |
AT=Yes DE=Yes EZ=Yes SW=Yes |
|||||||||
| 03 | Headlining | EVERESTGRAU | 1 | 51449203543 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | 2 | 51488353567 | $0.63 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapp.screw w collar | ST 3,5X12 | 5 | 07147139407 | $0.11 | Shop at ECS Tuning | ||||
