Heat insulat./engine compartm.screening for BMW 7 Series E32 740i (1994)

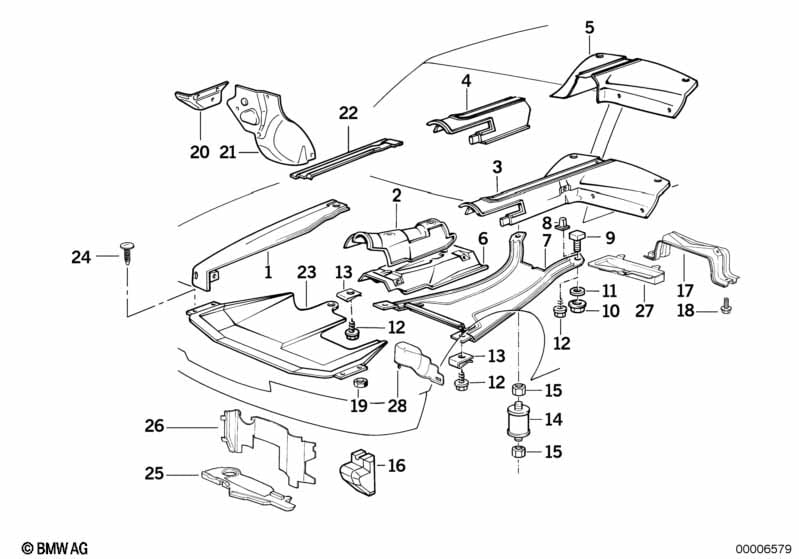

This Heat insulat./engine compartm.screening technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat insulation right | 1 | 07/1992 | 51488137982 | $34.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Heat insulation tunnel bottom | 1 | 51488115921 | $164.14 | ENDED | Shop at ECS Tuning | ||||
| 02 | thermal insulation tunnel center top | 1 | 51488126636 | $113.42 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | thermal insulation tunnel rear | 1 | 51488126633 | $63.07 | ENDED | Shop at ECS Tuning | ||||
| 02 | Heat insulation tunnel bottom | 1 | 03/1993 | 51488169738 | $154.01 | ENDED | Shop at ECS Tuning | |||
| 04 | Heat insulation | 1 | 11/1991 | 51488115925 | Shop at ECS Tuning | |||||
| 05 | thermal insulation tunnel rear | 1 | 11/1991 | 51488126633 | $63.07 | ENDED | Shop at ECS Tuning | |||
| 06 | Heat insulation tunnel bottom | 1 | 51488115921 | $164.14 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Manual Transmission |
=Yes |
|||||||||
| 07 | Underfloor coating | 1 | 11/1987 | 51711969484 | $52.02 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission Eh |
=Yes |
|||||||||
| 07 | Air guide | 1 | 11/1991 | 51718157317 | $70.21 | ENDED | Shop at ECS Tuning | |||
| 09 | Square headed bolt | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M8 | 2 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Washer | 8 | 3 | 51711963048 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex head screw | ST6,3X19-C-Z2 | 2 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST 4,8-6-ZNS3 | 2 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST6,3-4 ZNS3 | 2 | 07147144276 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Rubber Mounting | 1 | 13621359216 | $10.80 | ENDED | Shop at ECS Tuning | ||||
| 15 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 17 | Carrier | 1 | 51718102269 | $120.06 | Shop at ECS Tuning | |||||
| 19 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 20 | Heat insulation, left | 1 | 51488114547 | $25.58 | ENDED | Shop at ECS Tuning | ||||
| 21 | Heat resistant plate | 1 | 51488116327 | $28.35 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Independent ventilation control |
=Yes |
|||||||||
| 21 | Heat resistant plate | 1 | 51488116330 | ENDED | Shop at ECS Tuning | |||||
| 22 | Heat insulation, left | 1 | 11/1991 | 51488115919 | $43.40 | ENDED | Shop at ECS Tuning | |||
| 22 | Heat insulation right | 1 | 04/1992 | 51488126638 | $44.49 | ENDED | Shop at ECS Tuning | |||
| In some cases this part must be modified to fit vehicle. |
||||||||||
| 23 | Engine compartment screening | 1 | 51718147355 | $116.97 | Shop at ECS Tuning | |||||
