Strap system for BMW 5 Series F11 520i (2013)

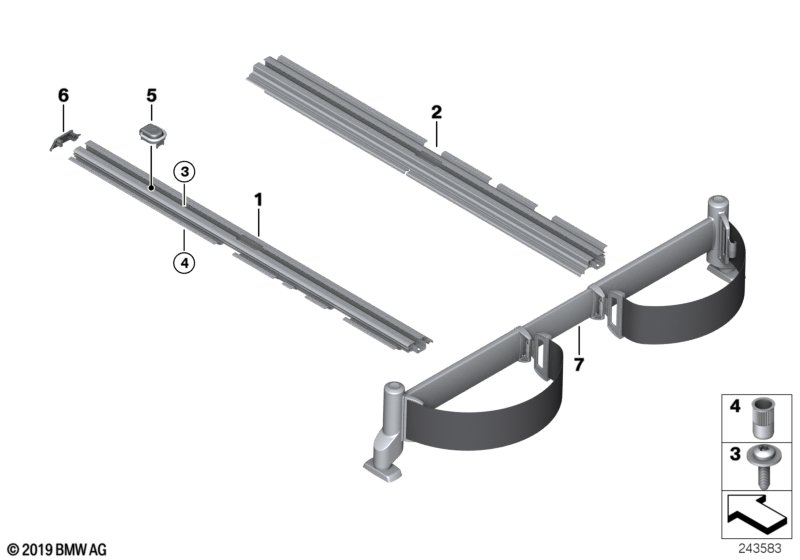

This Strap system technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Luggage compartment package |
S418A=Yes |
||||||||
| 01 | Lashing rail, left | 1 | 51477228709 | Shop at ECS Tuning | ||||||
| 02 | Lashing rail, right | 1 | 51477228710 | Shop at ECS Tuning | ||||||
| 03 | Screw | M8X18MM | 6 | 07147260059 | Shop at ECS Tuning | |||||
| 04 | Blind rivet | 2 | 07147239740 | Shop at ECS Tuning | ||||||
| 05 | Tie-down ring | 2 | 51477146024 | $23.62 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster |
DH=Yes |
|||||||||
| 06 | End cap, left | OYSTER | 1 | 51477261811 | Shop at ECS Tuning | |||||
| 06 | End cap, right | OYSTER | 1 | 51477261812 | Shop at ECS Tuning | |||||
| For vehicles with everest-grau |
DE=Yes |
|||||||||
| 06 | End cap, left | EVERESTGRAU | 1 | 51477261807 | NoS | Shop at ECS Tuning | ||||
| 06 | End cap, right | EVERESTGRAU | 1 | 51477261808 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Veneto-beige |
DF=Yes |
|||||||||
| 06 | End cap, left | VENETOBEIGE | 1 | 51477261809 | Shop at ECS Tuning | |||||
| 06 | End cap, right | VENETOBEIGE | 1 | 51477261810 | Shop at ECS Tuning | |||||
| For vehicles with anthracite or oyster or zimt-braun or Black |
AT=Yes CX=Yes EZ=Yes SW=Yes |
|||||||||
| 06 | End cap, left | SCHWARZ | 1 | 51477261813 | Shop at ECS Tuning | |||||
| 06 | End cap, right | SCHWARZ | 1 | 51477261814 | Shop at ECS Tuning | |||||
| 07 | Adaptive Attachment System | 1 | 51477294566 | ENDED, NoS | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
