Trim, luggage compartment, side, right for BMW 6 Series E64 LCI 630i (2010)

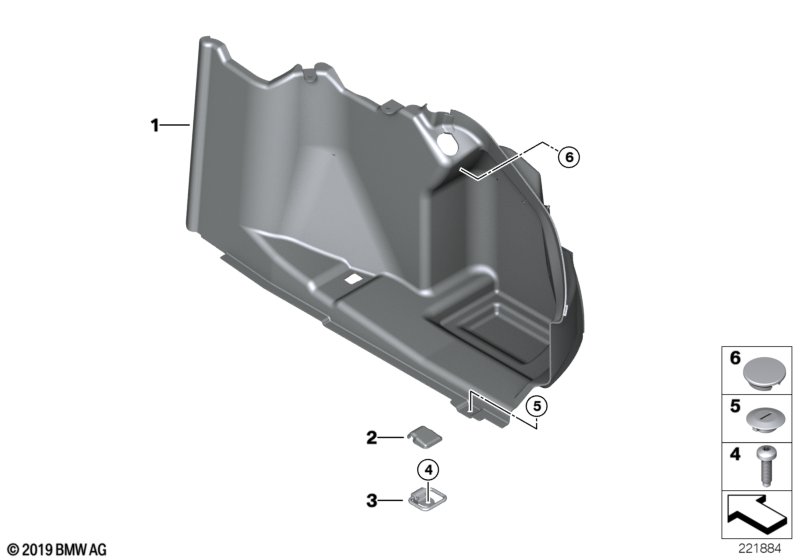

This Trim, luggage compartment, side, right technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 LCI 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Right TRUNK TRIM | ANTHR.-MELANGE | 1 | 51477157102 | $57.20 | +core | Shop at ECS Tuning | |||
| 02 | Cover, fastening loop | 2 | 51477068931 | $1.25 | Shop at ECS Tuning | |||||
| 03 | Tie-down ring | 2 | 51477068930 | $7.87 | Shop at ECS Tuning | |||||
| 04 | Torx bolt | ISA M8X19 | 2 | 52108161962 | $0.46 | Shop at ECS Tuning | ||||
| 05 | Push-button | 2 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 06 | Plug | SCHWARZ | 2 | 51418223097 | $0.56 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 LCI 630i Trim, luggage compartment, side, right?
- This technical diagram illustrates the Trim, luggage compartment, side, right within the Vehicle trim group for the 6 Series E64 LCI 630i produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Right TRUNK TRIM (Part #51477157102).
- Which models use the hardware listed in this Trim, luggage compartment, side, right?
- The hardware and components featured in the Trim, luggage compartment, side, right are specific to the 6 Series E64 LCI 630i produced during 2010. These technical specifications ensure that parts like the Right TRUNK TRIM (51477157102) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trim, luggage compartment, side, right assembly?
- Each item in the Trim, luggage compartment, side, right corresponds to the numbered list below the illustration. For the 6 Series E64 LCI 630i, you can identify the Right TRUNK TRIM by locating its position on the schematic, which then links to the official BMW part number 51477157102 for the Vehicle trim section.
