Set of suitcase locks for BMW R45-R65LS..78-85 R65T (1985)

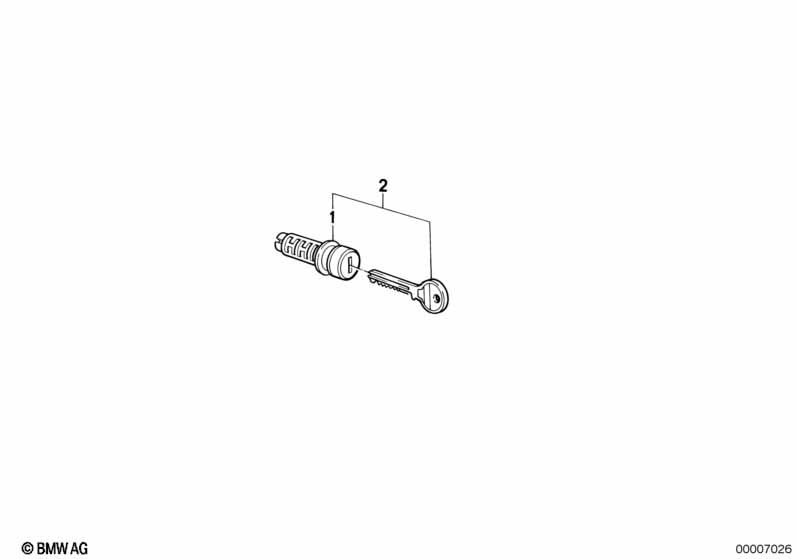

This Set of suitcase locks technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65T. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to vehicle uniform locking system |
|||||||||
| 02 | Lock cylinder with key | X | 51252303680 | $30.00 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| 02 | Set of locks | 1 | 51252303683 | $80.62 | +core | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 02 | Set of locks, code | 1 | 71602303684 | $181.14 | +core | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Set Touring case | X | 46542315185 | ENDED, +core | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
