Locking system, door, front for BMW 6 Series G32 GT LCI 630d (2022)

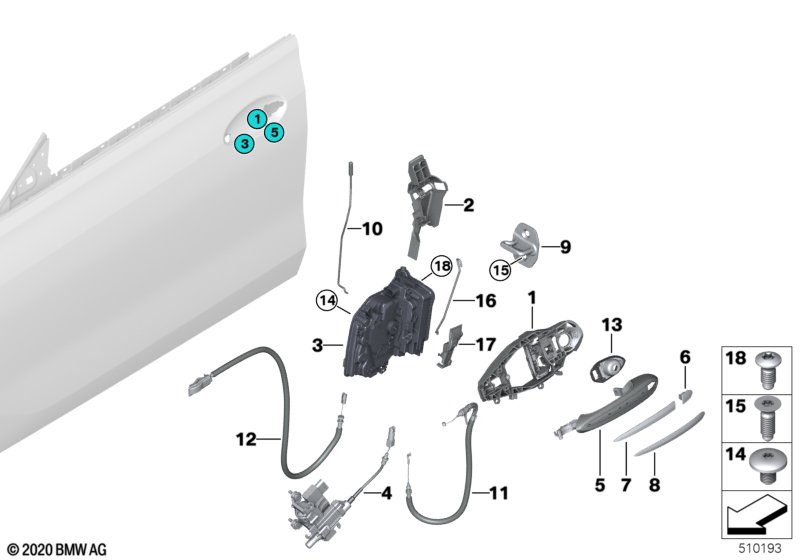

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT LCI 630d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 01 | Carrier, outside door handle, left | CA | 1 | 51219881775 | Shop at ECS Tuning | |||||
| 01 | Carrier, outside door handle, right | CA | 1 | 51219881776 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 01 | Carrier, outside door handle, left | 1 | 51219881773 | Shop at ECS Tuning | ||||||
| 01 | Carrier, outside door handle, right | 1 | 51219881774 | Shop at ECS Tuning | ||||||
| 02 | Adapter for support, front | 1 | 51217215681 | Shop at ECS Tuning | ||||||
| For vehicles with Soft-Close-Automatic doors and Thiefproofing device |
S323A=No S8TGA=No |
|||||||||
| 03 | System latch, right | 1 | 51217477686 | Shop at ECS Tuning | ||||||
| 03 | System latch, left | 1 | 51217477687 | Shop at ECS Tuning | ||||||
| For vehicles with Soft-Close-Automatic doors and Thiefproofing device |
S323A=No S8TGA=Yes |
|||||||||
| 03 | System latch, right | ZS | 1 | 51217477694 | Shop at ECS Tuning | |||||
| 03 | System latch, left | ZS | 1 | 51217477695 | Shop at ECS Tuning | |||||
| For vehicles with Soft-Close-Automatic doors and Thiefproofing device |
S323A=Yes S8TGA=Yes |
|||||||||
| 03 | System latch, right | SCA / ZS | 1 | 51217477708 | Shop at ECS Tuning | |||||
| 03 | System latch, left | SCA / ZS | 1 | 51217477709 | Shop at ECS Tuning | |||||
| For vehicles with Soft-Close-Automatic doors and Thiefproofing device |
S323A=Yes S8TGA=No |
|||||||||
| 03 | System latch, right | SCA | 1 | 51217477700 | Shop at ECS Tuning | |||||
| 03 | System latch, left | SCA | 1 | 51217477701 | Shop at ECS Tuning | |||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
|||||||||
| 04 | Drive soft close automatic left front | 1 | 51215A36E43 | Shop at ECS Tuning | ||||||
| 04 | Drive soft close automatic right front | 1 | 51215A36E44 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=Yes S4URA=Yes |
|||||||||
| 05 | Door handle, primed, outer right | CA / OVT / NFC | 1 | 07/2018 | 51215A65DC8 | Shop at ECS Tuning | ||||
| 05 | Door handle, primed, outer left | CA / OVT | 1 | 07/2018 | 51219491461 | Shop at ECS Tuning | ||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=Yes |
|||||||||
| 05 | Door handle, primed, outer left | OVT | 1 | 07/2018 | 51219491457 | Shop at ECS Tuning | ||||
| 05 | Door handle, primed, outer right | OVT | 1 | 07/2018 | 51219491460 | Shop at ECS Tuning | ||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=No |
|||||||||
| 05 | Outside door handle, primed, left | BASIS | 1 | 51217489321 | Shop at ECS Tuning | |||||
| 05 | Outside door handle, primed, right | BASIS | 1 | 51217489324 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Ambient interior lighting Included in door handle |
S322A=Yes S4URA=Yes |
|||||||||
| 06 | Prime coated covering | BASIS | 2 | 51217489341 | Shop at ECS Tuning | |||||
| 09 | Catch bracket | 2 | 51217394435 | Shop at ECS Tuning | ||||||
| 10 | Operating rod, door front left | 1 | 51217382571 | Shop at ECS Tuning | ||||||
| 10 | Operating rod, door front right | 1 | 51217382572 | Shop at ECS Tuning | ||||||
| 11 | Bowden cable outside door handle front | 2 | 51215A57953 | Shop at ECS Tuning | ||||||
| 12 | Bowden cable front door | 2 | 51217382566 | Shop at ECS Tuning | ||||||
| 13 | Cover for grip, lower left | RHD | 1 | 51217497721 | Shop at ECS Tuning | |||||
| 14 | Torx-bolt with washer | ISA M8X12 | 2 | 07149149652 | $0.45 | Shop at ECS Tuning | ||||
| 15 | Countersunk head screw | 4 | 51219463885 | Shop at ECS Tuning | ||||||
| 16 | Lockrod, right | RL | 1 | 51217382796 | Shop at ECS Tuning | |||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
|||||||||
| 17 | Left bowden cable cover | SCA | 1 | 51217325297 | Shop at ECS Tuning | |||||
| 17 | Right bowden cable cover | SCA | 1 | 51217325298 | Shop at ECS Tuning | |||||
| 18 | Countersunk head screw | 4 | 07149476994 | Shop at ECS Tuning | ||||||
