Locking system, door, front for BMW 6 Series F13 LCI 640d (2017)

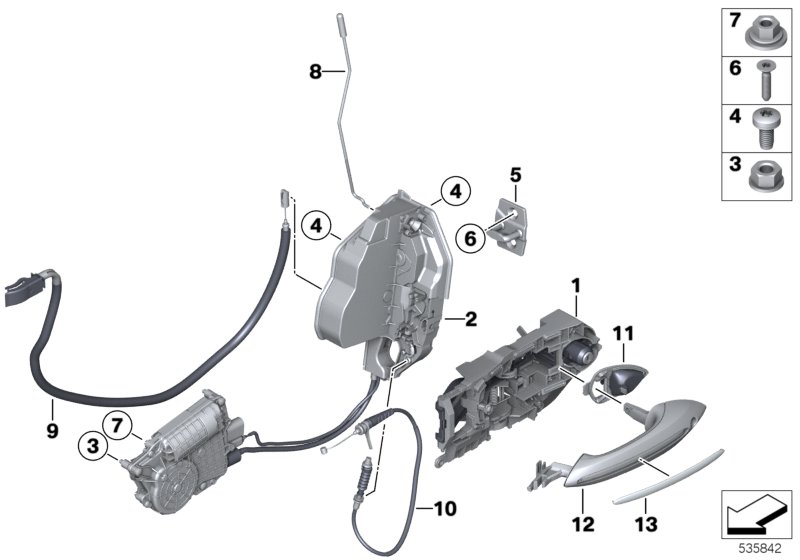

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 LCI 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, outside door handle, left | 1 | 51217175649 | Shop at ECS Tuning | ||||||
| 01 | Carrier with catch, coded right | 1 | 51217286096 | Shop at ECS Tuning | ||||||
| 01 | Carrier with catch, with key right | 1 | 51217286100 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 01 | Carrier, outside door handle, left | 1 | 51217187227 | $160.62 | Shop at ECS Tuning | |||||
| 01 | Carrier with catch, coded right | 1 | 51217286098 | Shop at ECS Tuning | ||||||
| 01 | Carrier with catch, with key right | 1 | 51217286102 | Shop at ECS Tuning | ||||||
| For vehicles with Soft-Close-Automatic doors |
S323A=Yes |
|||||||||
| 02 | Lock, complete, left | 1 | 51215A36E41 | Shop at ECS Tuning | ||||||
| 02 | Lock, complete, right | 1 | 51215A36F14 | Shop at ECS Tuning | ||||||
| For vehicles with Soft-Close-Automatic doors |
S323A=No |
|||||||||
| 02 | System latch, right | 1 | 51217202144 | $171.13 | Shop at ECS Tuning | |||||
| 02 | System latch, left | 1 | 51217202145 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M5 | 6 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 04 | Torx bolt | M6X13 ZNNID SW | 6 | 07147186859 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Catch bracket | 2 | 51217312545 | Shop at ECS Tuning | ||||||
| 06 | Countersunk head screw | 4 | 51219463885 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | M6 | 2 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 08 | Left operating rod | 1 | 51217227735 | Shop at ECS Tuning | ||||||
| 08 | Right operating rod | 1 | 51217227736 | Shop at ECS Tuning | ||||||
| 09 | Bowden cable, door opener | 2 | 51217225004 | Shop at ECS Tuning | ||||||
| 10 | Bowden cable, outside door handle | 2 | 51217297439 | Shop at ECS Tuning | ||||||
| 11 | Attachment cap, right | 1 | 51217292570 | ENDED | Shop at ECS Tuning | |||||
| 11 | Cover for grip, lower left | 1 | 51217292573 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 11 | Attachment cap, right | 1 | 51217292572 | Shop at ECS Tuning | ||||||
| 11 | Cover for grip, lower left | 1 | 51217292575 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=No |
|||||||||
| 12 | grab handle, paint finish, right | CODE - UNI/MET. | 1 | 51217276244 | +core | Shop at ECS Tuning | ||||
| 12 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 51227276241 | +core | Shop at ECS Tuning | ||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=Yes S4URA=Yes |
|||||||||
| 12 | grab handle, paint finish, right | 1 | 51217231932 | ENDED | Shop at ECS Tuning | |||||
| 12 | Handle primed right | CA | 1 | 51217249982 | Shop at ECS Tuning | |||||
| 12 | Handle primed left | CA | 1 | 51217249981 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Ambient interior lighting |
S322A=No S4URA=Yes |
|||||||||
| 12 | grab handle, paint finish, right | 1 | 51217231928 | ENDED | Shop at ECS Tuning | |||||
| 12 | Handle primed right | 1 | 51217249978 | Shop at ECS Tuning | ||||||
| 12 | grab handle, paint finish, left | 1 | 51217231929 | ENDED | Shop at ECS Tuning | |||||
| 12 | Handle primed left | 1 | 51217249977 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access and Ambient interior lighting and black-sapphire metallic |
S322A=Yes S4URA=Yes M475=Yes |
|||||||||
| 12 | grab handle, paint finish, left | 1 | 51217231933 | $301.10 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clip, door handle, outside right | CHROM | 1 | 51217316386 | Shop at ECS Tuning | |||||
| 13 | Clip, door handle, outside left | CHROM | 1 | 51217316387 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
