Mounting parts, I-panel, top for BMW 3 Series F34 GT 320d (2015)

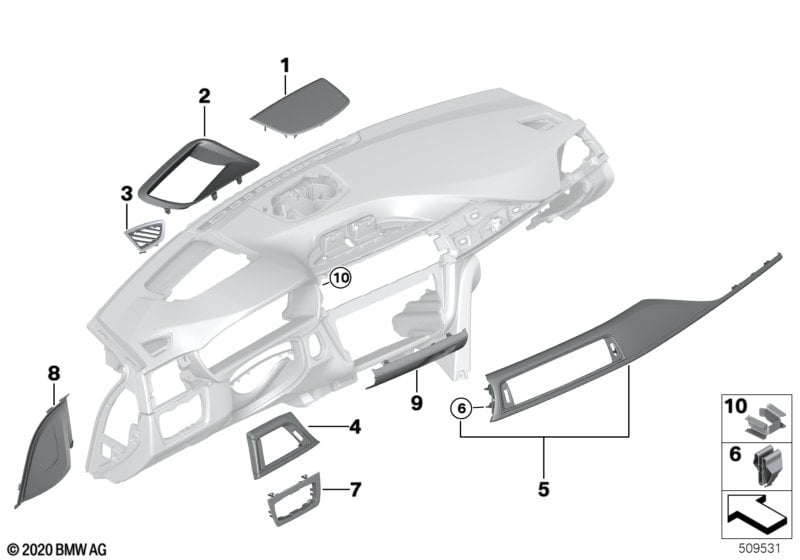

This Mounting parts, I-panel, top technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, center speaker | SCHWARZ | 1 | 51459381043 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster or oyster/Akzent oyster dark |
DH=Yes L9=Yes |
|||||||||
| 01 | Cover, center speaker | OYSTER DUNKEL | 1 | 51459381044 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=Yes S688A=No |
|||||||||
| 01 | Cover, center speaker | SCHWARZ | 1 | 07/2015 | 51459239291 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system |
S676A=No S688A=Yes |
|||||||||
| 01 | Cover, center speaker | SCHWARZ | 1 | 07/2015 | 51459239293 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and oyster/oyster or oyster/Akzent oyster dark |
S676A=No S688A=Yes DH=Yes L9=Yes |
|||||||||
| 01 | Cover, center speaker | OYSTER DUNKEL | 1 | 07/2015 | 51459239294 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and oyster/oyster or oyster/Akzent oyster dark |
S676A=Yes S688A=No DH=Yes L9=Yes |
|||||||||
| 01 | Cover, center speaker | OYSTER DUNKEL | 1 | 07/2015 | 51459239292 | +core | Shop at ECS Tuning | |||
| For vehicles with Head-up display |
S610A=Yes |
|||||||||
| 02 | Trim piece for head-up display | SCHWARZ | 1 | 51459239336 | +core | Shop at ECS Tuning | ||||
| For vehicles with Head-up display and oyster/oyster or oyster/Akzent oyster dark |
S610A=Yes DH=Yes L9=Yes |
|||||||||
| 02 | Trim piece for head-up display | OYSTER DUNKEL | 1 | 51459239337 | +core | Shop at ECS Tuning | ||||
| 03 | Cover, side window defroster, left | SCHWARZ | 1 | 51459241139 | Shop at ECS Tuning | |||||
| 03 | Cover, side window defroster, right | SCHWARZ | 1 | 51459241143 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster or oyster/Akzent oyster dark |
DH=Yes L9=Yes |
|||||||||
| 03 | Cover, side window defroster, left | OYSTER DUNKEL | 1 | 51459241140 | NoS | Shop at ECS Tuning | ||||
| 03 | Cover, side window defroster, right | OYSTER DUNKEL | 1 | 51459241144 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Black, highgloss Perlglanz chrome accent |
S4LUA=Yes |
|||||||||
| 04 | Trim instr.panel glossy black driver | PERLGLANZ CHROM | 1 | 51459318069 | Shop at ECS Tuning | |||||
| For vehicles with Alu, brushed, Perlglanz chrome accent |
S4LSA=Yes |
|||||||||
| 04 | Trim I-panel alu.brush lengthwise driver | PERLGLANZ CHROM | 1 | 51459231223 | Shop at ECS Tuning | |||||
| 04 | Trim I-panel alu.brush lengthwise driver | PERLGLANZ CHROM | 1 | 51459384024 | Shop at ECS Tuning | |||||
| For vehicles with Black high-gloss, korall-rot accent |
S4LVA=Yes |
|||||||||
| 04 | Trim instr.panel glossy black driver | KORALLROT MATT | 1 | 51459357917 | Shop at ECS Tuning | |||||
| For vehicles with Ashgrain Perlglanz chrome accent |
S4GAA=Yes |
|||||||||
| 04 | Trim I-panel ash burl driver | PERLGLANZ CHROM | 1 | 51459357929 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood 'Fineline' light w/accent str |
S4FVA=Yes |
|||||||||
| 04 | Co.pan.dashb.wood Fineline light driver | PERLGLANZ CHROM | 1 | 51456818791 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alu, brushed, high-gloss black accent |
S4FTA=Yes |
|||||||||
| 04 | Trim I-panel alu.brush lengthwise driver | SCHWARZ GLANZ | 1 | 51459354341 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood 'Fineline' walnut/acc. strip |
S4FWA=Yes |
|||||||||
| 04 | Cover pan.inst.pan.burr walnut driver | PERLGLANZ CHROM | 1 | 51459354345 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 04 | I-panel trim, satin silver matte, driver | 1 | 51459231204 | Shop at ECS Tuning | ||||||
| For vehicles with Accent strips, pearl-gloss, chrome and Interieurleisten Pearl dunkel |
S4DMA=Yes S4DZA=Yes |
|||||||||
| 04 | Cover panel for dashboard pearl driver | PERLGLANZ CHROM | 1 | 07/2012 | 51459287772 | Shop at ECS Tuning | ||||
| For vehicles with Fine woodgrain version Fineline Pure and Accent strips, pearl-gloss, chrome |
S4DDA=Yes S4DMA=Yes |
|||||||||
| 04 | Trim instr.panel Fineline Pur driver | PERLGLANZ CHROM | 1 | 51459231231 | Shop at ECS Tuning | |||||
| For vehicles with Accent strips, pearl-gloss, chrome and Interior strips, Pearl |
S4DMA=Yes S4DTA=Yes |
|||||||||
| 04 | Cover panel for dashboard pearl driver | PERLGLANZ CHROM | 1 | 51459231211 | Shop at ECS Tuning | |||||
| For vehicles with Accent moldings, blue metallic matt and Interior strips, aluminum hexagon |
S4DXA=Yes S4MRA=Yes |
|||||||||
| 04 | Trim I-panel alu.hexagonal driver | BLAU MATT | 1 | 01/2014 | 07/2015 | 51458064258 | Shop at ECS Tuning | |||
| For vehicles with Interior trim finishers black high-gloss and Accent strips, korall-rot, matt and Black high-gloss, korall-rot accent |
S4ATA=Yes S4DNA=Yes S4LVA=Yes |
|||||||||
| 04 | Trim instr.panel glossy black driver | KORALLROT MATT | 1 | 51459231456 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim burr walnut and Accent strips, pearl-gloss, chrome and Fine wood 'Fineline' walnut/acc. strip |
S4ABA=Yes S4DMA=Yes S4FWA=Yes |
|||||||||
| 04 | Cover pan.inst.pan.burr walnut driver | PERLGLANZ CHROM | 1 | 51459231227 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain, nutwood/inlays and Accent strips, pearl-gloss, chrome and Walnut root Perlglanz chrome accent |
S4B8A=Yes S4DMA=Yes S4GBA=Yes |
|||||||||
| 04 | Cover panel dashb.walnut/intarsia driver | PERLGLANZ CHROM | 1 | 51459249114 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim strips, alu, brushed, fine and Accent strips, black, high-gloss and Alu, brushed, high-gloss black accent |
S4ADA=Yes S4DLA=Yes S4FTA=Yes |
|||||||||
| 04 | Trim I-panel alu.brush lengthwise driver | SCHWARZ GLANZ | 1 | 51459231215 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim strips, alu, brushed, fine and Accent strips, korall-rot, matt and Alu, brushed, korallrot accent |
S4ADA=Yes S4DNA=Yes S4LTA=Yes |
|||||||||
| 04 | Trim I-panel alu.brush lengthwise driver | KORALLROT MATT | 1 | 51459231219 | Shop at ECS Tuning | |||||
| For vehicles with Accent strips, black, high-gloss and Interior strips, aluminum hexagon and Alu, hexagon, high-gloss black accent |
S4DLA=Yes S4MRA=Yes S4WGA=Yes |
|||||||||
| 04 | Trim I-panel alu.hexagonal driver | SCHWARZ GLANZ | 1 | 01/2014 | 07/2015 | 51458064253 | Shop at ECS Tuning | |||
| For vehicles with Fine woodgrain vers., Fineline anthrac. and Accent strips, pearl-gloss, chrome and Fine wood 'Fineline' anthracite/accent |
S4CEA=Yes S4DMA=Yes S4FUA=Yes |
|||||||||
| 04 | Trim for dashb.Fineline anthrac.driver | PERLGLANZ CHROM | 1 | 51459231235 | Shop at ECS Tuning | |||||
| For vehicles with Black, highgloss Perlglanz chrome accent |
S4LUA=Yes |
|||||||||
| 05 | Trim instr.panel glossy black passenger | PERLGLANZ CHROM | 1 | 51459318071 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood 'Fineline' light w/accent str |
S4FVA=Yes |
|||||||||
| 05 | Blende I-Tafel Holz Fineline hell Beifa. | PERLGLANZ CHROM | 1 | 51456818792 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alu, brushed, high-gloss black accent |
S4FTA=Yes |
|||||||||
| 05 | Trim instr.pan.Al brush.lengthw.fr.pass. | SCHWARZ GLANZ | 1 | 51456827340 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood 'Fineline' walnut/acc. strip |
S4FWA=Yes |
|||||||||
| 05 | Trim instr.panel burr walnut front pass. | PERLGLANZ CHROM | 1 | 51459354347 | Shop at ECS Tuning | |||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 05 | Blende I-Tafel satinsilber matt Beifahr. | 1 | 51459231206 | Shop at ECS Tuning | ||||||
| For vehicles with Interior trim finishers black high-gloss and Accent strips, korall-rot, matt |
S4ATA=Yes S4DNA=Yes |
|||||||||
| 05 | Trim instr.panel glossy black passenger | KORALLROT MATT | 1 | 51459231458 | Shop at ECS Tuning | |||||
| For vehicles with Accent strips, pearl-gloss, chrome and Interieurleisten Pearl dunkel |
S4DMA=Yes S4DZA=Yes |
|||||||||
| 05 | Cov.pan.dashboard Pearl front passenger | PERLGLANZ CHROM | 1 | 07/2012 | 51459287774 | Shop at ECS Tuning | ||||
| For vehicles with Fine woodgrain version Fineline Pure and Accent strips, pearl-gloss, chrome |
S4DDA=Yes S4DMA=Yes |
|||||||||
| 05 | Trim instr.panel Fineline Pur fr.pass | PERLGLANZ CHROM | 1 | 51459231233 | Shop at ECS Tuning | |||||
| For vehicles with Accent strips, pearl-gloss, chrome and Interior strips, Pearl |
S4DMA=Yes S4DTA=Yes |
|||||||||
| 05 | Cov.pan.dashboard Pearl front passenger | PERLGLANZ CHROM | 1 | 51459231213 | Shop at ECS Tuning | |||||
| For vehicles with Accent moldings, blue metallic matt and Interior strips, aluminum hexagon |
S4DXA=Yes S4MRA=Yes |
|||||||||
| 05 | Trim instr.panel alu.hex.passenger | BLAU MATT | 1 | 01/2014 | 07/2015 | 51458064259 | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim burr walnut and Accent strips, pearl-gloss, chrome and Fine wood 'Fineline' walnut/acc. strip |
S4ABA=Yes S4DMA=Yes S4FWA=Yes |
|||||||||
| 05 | Trim instr.panel burr walnut front pass. | PERLGLANZ CHROM | 1 | 51459231229 | Shop at ECS Tuning | |||||
| For vehicles with Fine woodgrain, nutwood/inlays and Accent strips, pearl-gloss, chrome and Walnut root Perlglanz chrome accent |
S4B8A=Yes S4DMA=Yes S4GBA=Yes |
|||||||||
| 05 | Blende I-Tafel Nussbaum/Intarsie Beifah. | PERLGLANZ CHROM | 1 | 51459249116 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim strips, alu, brushed, fine and Accent strips, black, high-gloss and Alu, brushed, high-gloss black accent |
S4ADA=Yes S4DLA=Yes S4FTA=Yes |
|||||||||
| 05 | Trim instr.pan.Al brush.lengthw.fr.pass. | SCHWARZ GLANZ | 1 | 51459231217 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim strips, alu, brushed, fine and Accent strips, pearl-gloss, chrome and Alu, brushed, Perlglanz chrome accent |
S4ADA=Yes S4DMA=Yes S4LSA=Yes |
|||||||||
| 05 | Trim instr.pan.Al brush.lengthw.fr.pass. | PERLGLANZ CHROM | 1 | 51459231225 | Shop at ECS Tuning | |||||
| For vehicles with Interior trim strips, alu, brushed, fine and Accent strips, korall-rot, matt and Alu, brushed, korallrot accent |
S4ADA=Yes S4DNA=Yes S4LTA=Yes |
|||||||||
| 05 | Trim instr.pan.Al brush.lengthw.fr.pass. | KORALLROT MATT | 1 | 51459231221 | Shop at ECS Tuning | |||||
| For vehicles with Accent strips, black, high-gloss and Interior strips, aluminum hexagon and Alu, hexagon, high-gloss black accent |
S4DLA=Yes S4MRA=Yes S4WGA=Yes |
|||||||||
| 05 | Trim instr.panel alu.hex.passenger | SCHWARZ GLANZ | 1 | 03/2014 | 07/2015 | 51458064254 | Shop at ECS Tuning | |||
| For vehicles with Fine woodgrain vers., Fineline anthrac. and Accent strips, pearl-gloss, chrome and Fine wood 'Fineline' anthracite/accent |
S4CEA=Yes S4DMA=Yes S4FUA=Yes |
|||||||||
| 05 | Trim instr.panel Fineline anthr.fr.pass. | PERLGLANZ CHROM | 1 | 51459231237 | Shop at ECS Tuning | |||||
| 06 | Clamp | 7 | 07147321144 | Shop at ECS Tuning | ||||||
| For vehicles with Individual leather-covered dashboard |
S4M5A=No |
|||||||||
| 07 | Cover, light operating unit | SCHWARZ | 1 | 51459239295 | +core | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Saddlebrown or sattel-braun Exklusivnaht |
S4M5A=No DY=Yes LX=Yes |
|||||||||
| 07 | Cover, light operating unit | SATTELBRAUN | 1 | 51459239296 | +core | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and oyster/oyster or oyster/Akzent oyster dark or oyster/Akzent oyster dark or oyster/schwarz |
S4M5A=No DH=Yes L9=Yes OM=Yes OP=Yes |
|||||||||
| 07 | Cover, light operating unit | OYSTER | 1 | 51459239298 | +core | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Veneto-beige or veneto-beige/Akzent oyster dunkel or veneto-beige/Akzent oyster dunkel or Veneto beige exclusive seam or Veneto-beige or Veneto beige exclusive seam |
S4M5A=No DF=Yes FJ=Yes FL=Yes LY=Yes V1=Yes V2=Yes |
|||||||||
| 07 | Cover, light operating unit | VENETOBEIGE | 1 | 51459239297 | +core | Shop at ECS Tuning | ||||
| 08 | Trim panel, I-panel, outer left | SCHWARZ | 1 | 51459248138 | Shop at ECS Tuning | |||||
| 08 | Trim panel, I-panel, outer right | SCHWARZ | 1 | 51459248141 | Shop at ECS Tuning | |||||
| For vehicles with oyster/oyster or oyster/Akzent oyster dark |
DH=Yes L9=Yes |
|||||||||
| 08 | Trim panel, I-panel, outer left | OYSTER DUNKEL | 1 | 51459248139 | NoS | Shop at ECS Tuning | ||||
| 08 | Trim panel, I-panel, outer right | OYSTER DUNKEL | 1 | 51459248142 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging |
S4M5A=Yes S6NWA=No |
|||||||||
| 09 | Trim leather Center Stack bottom | SCHWARZ | 1 | 51458062561 | Shop at ECS Tuning | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging |
S4M5A=No S6NWA=No |
|||||||||
| 09 | Cover panel, Centerstack, lower | SCHWARZ | 1 | 51459241178 | Shop at ECS Tuning | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and Saddlebrown or sattel-braun Exklusivnaht |
S4M5A=No S6NWA=No DY=Yes LX=Yes |
|||||||||
| 09 | Cover panel, Centerstack, lower | SATTELBRAUN | 1 | 51459241180 | Shop at ECS Tuning | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and oyster/oyster or oyster/Akzent oyster dark or oyster/Akzent oyster dark or oyster/schwarz |
S4M5A=No S6NWA=No DH=Yes L9=Yes OM=Yes OP=Yes |
|||||||||
| 09 | Cover panel, Centerstack, lower | OYSTER | 1 | 51459241181 | Shop at ECS Tuning | |||||
| For vehicles with Individual leather-covered dashboard and Phoning with wireless charging and Veneto-beige or veneto-beige/Akzent oyster dunkel or veneto-beige/Akzent oyster dunkel or Veneto beige exclusive seam or Veneto-beige or Veneto beige exclusive seam |
S4M5A=No S6NWA=No DF=Yes FJ=Yes FL=Yes LY=Yes V1=Yes V2=Yes |
|||||||||
| 09 | Cover panel, Centerstack, lower | VENETOBEIGE | 1 | 51459241179 | Shop at ECS Tuning | |||||
| 10 | Fixing clamp, cover | 1 | 07149352988 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
