Locking system, door, front for BMW 2 Series F23 228iX (2016)

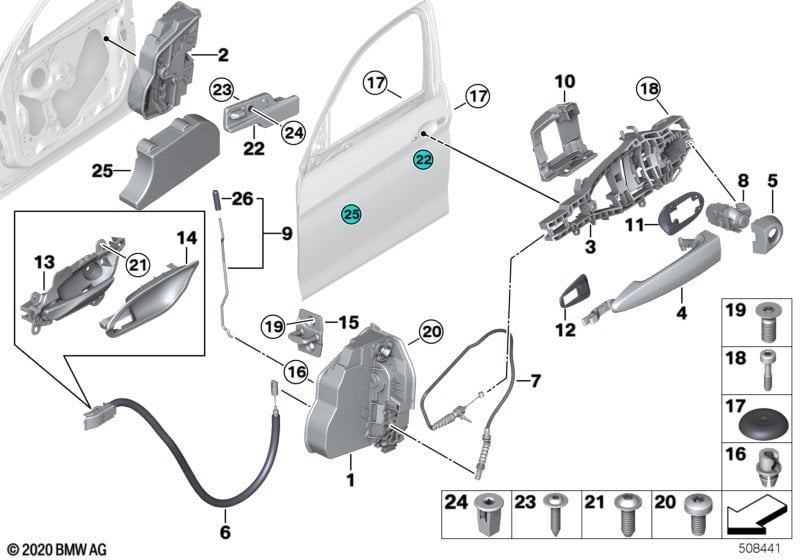

This Locking system, door, front technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 228iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Comfort access or Thiefproofing device |
S322A=Yes S8TGA=Yes |
|||||||||
| 01 | System latch, left | 1 | 51217202143 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Thiefproofing device |
S322A=No S8TGA=No |
|||||||||
| 01 | System latch, left | 1 | 51217229461 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access or Thiefproofing device |
S322A=Yes S8TGA=Yes |
|||||||||
| 02 | System latch, right | 1 | 51217202146 | $171.13 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and Thiefproofing device |
S322A=No S8TGA=No |
|||||||||
| 02 | System latch, right | 1 | 51217229458 | $176.25 | Shop at ECS Tuning | |||||
| 03 | Carrier, outside door handle,front right | 1 | 51217242568 | +core | Shop at ECS Tuning | |||||
| 03 | Carrier, outside door handle, front left | 1 | 51217285971 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=Yes |
|||||||||
| 04 | Handle bracket, left prime-coated | 1 | 51217332565 | Shop at ECS Tuning | ||||||
| 04 | Handle bracket, right prime-coated | 1 | 51217332566 | Shop at ECS Tuning | ||||||
| For vehicles with Comfort access |
S322A=No |
|||||||||
| 04 | grab handle, paint finish, right | CODE - UNI/MET. | 1 | 51210445184 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 51210445185 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Handle bracket, left prime-coated | 1 | 51217207561 | $22.10 | Shop at ECS Tuning | |||||
| 04 | Handle bracket, right prime-coated | 1 | 51217207562 | $22.10 | Shop at ECS Tuning | |||||
| For vehicles with Comfort access and kastanien-bronze metallic |
S322A=Yes WC29=Yes |
|||||||||
| 04 | grab handle, paint finish, left | CODE - UNI/MET. | 1 | 51217326917 | NoS | Shop at ECS Tuning | ||||
| 05 | Covering door, primed right | 1 | 51217162432 | $22.50 | Shop at ECS Tuning | |||||
| 05 | cover, lock cylinder primed, left | 1 | 51217162437 | $27.07 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 05 | Covering door, primed right | 1 | 51217162434 | $22.50 | Shop at ECS Tuning | |||||
| 05 | cover, lock cylinder primed, left | 1 | 51217162439 | $27.41 | Shop at ECS Tuning | |||||
| 06 | Bowden cable, inside door opener front | 2 | 51217268696 | Shop at ECS Tuning | ||||||
| 07 | Bowd.cable,outside door handle front | 2 | 51217268446 | Shop at ECS Tuning | ||||||
| 08 | Lock cylinder according to code, left | 1 | 51217310727 | +core | Shop at ECS Tuning | |||||
| 08 | Lock cylinder with key, left | 1 | 51217310729 | +core | Shop at ECS Tuning | |||||
| 09 | Operating rod, door front left | 1 | 51217268701 | Shop at ECS Tuning | ||||||
| 09 | Operating rod, door front right | 1 | 51217268702 | Shop at ECS Tuning | ||||||
| 11 | Lock cylinder base left | 1 | 51217060667 | $1.60 | Shop at ECS Tuning | |||||
| 11 | Lock cylinder base right | 1 | 51217060668 | $1.60 | Shop at ECS Tuning | |||||
| 12 | Handle bracket base, left | 1 | 51217060293 | $1.35 | Shop at ECS Tuning | |||||
| 12 | Handle bracket base, right | 1 | 51217060294 | $1.35 | Shop at ECS Tuning | |||||
| 13 | Door handle, inside left | 1 | 51417240411 | Shop at ECS Tuning | ||||||
| 13 | Door handle inner right | 1 | 51417240412 | Shop at ECS Tuning | ||||||
| 14 | Cover, door opener, inside left | SCHWARZ | 1 | 51417274487 | Shop at ECS Tuning | |||||
| 14 | Cover, door opener, inside right | SCHWARZ | 1 | 51417274488 | Shop at ECS Tuning | |||||
| 14 | Cover, door opener, inside left | OYSTER | 1 | 51417278453 | Shop at ECS Tuning | |||||
| 14 | Cover, door opener, inside right | OYSTER | 1 | 51417278454 | Shop at ECS Tuning | |||||
| For vehicles with Light package |
S563A=Yes |
|||||||||
| 14 | Cover, door opener, inside left | SCHWARZ | 1 | 51417274489 | Shop at ECS Tuning | |||||
| 14 | Cover, door opener, inside right | SCHWARZ | 1 | 51417274490 | Shop at ECS Tuning | |||||
| 14 | Cover, door opener, inside left | OYSTER | 1 | 51417278455 | Shop at ECS Tuning | |||||
| 14 | Cover, door opener, inside right | OYSTER | 1 | 51417278456 | Shop at ECS Tuning | |||||
| 15 | Catch bracket | 2 | 51217312545 | Shop at ECS Tuning | ||||||
| 16 | Circlip | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 17 | Blind plug | D=20MM | 4 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 18 | Inner hex bolt | M5 | 2 | 51217133972 | $1.14 | Shop at ECS Tuning | ||||
| 19 | Torx-countersunk head screw | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 20 | Torx bolt | M6X13 ZNNID SW | 6 | 07147186859 | $0.53 | Shop at ECS Tuning | ||||
| 21 | Torx-bolt for plastic material | ISA 4X12MM | 8 | 51419124466 | $1.02 | Shop at ECS Tuning | ||||
| 22 | Crash pad, left | 1 | 51337349067 | Shop at ECS Tuning | ||||||
| 22 | Crash pad, right | 1 | 51337349068 | Shop at ECS Tuning | ||||||
| 23 | Torx-bolt for plastic material | ISA L=22MM | 4 | 84137007031 | $0.62 | Shop at ECS Tuning | ||||
| 24 | Expanding nut | L=15MM, DMAX=12 | 4 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 25 | Crash pad for door, left | 1 | 51717278193 | Shop at ECS Tuning | ||||||
| 25 | Crash pad for door, right | 1 | 51717278194 | Shop at ECS Tuning | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
