Door window lifting mechanism front for BMW 1 Series F20 LCI 116i (2019)

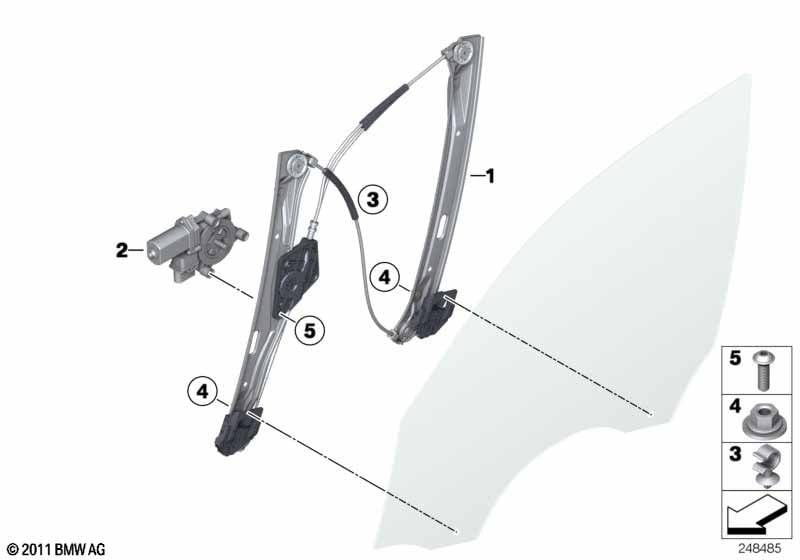

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter without motor,front left | 1 | 51337281881 | Shop at ECS Tuning | ||||||
| 01 | Window lifter without motor,front right | 1 | 51337281882 | Shop at ECS Tuning | ||||||
| 02 | Drive for window lifter, front left | 1 | 67627406623 | Shop at ECS Tuning | ||||||
| 02 | Drive for window lifter, front right | 1 | 67627406624 | Shop at ECS Tuning | ||||||
| 03 | Cable holder | 2 | 07147247495 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M6 | 10 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | 6 | 07146982677 | $0.47 | Shop at ECS Tuning |
