Lateral trim panel rear for BMW 6 Series F13 LCI 640d (2017)

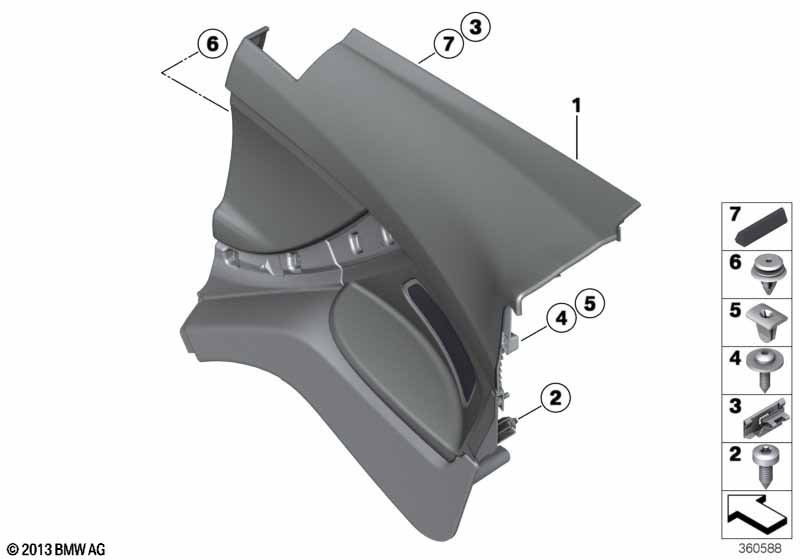

This Lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 LCI 640d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For replacement of the side trim panels, the speaker covers including their mounting hardware must also be ordered. The hole for the tweeter (Top HiFi) must be cut out as required. Markings have been provided on the rear side. |
|||||||||
| For vehicles with Leather "Dakota/zimt-braun" |
LCEZ=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ZIMTBRAUN | 1 | 51437291855 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ZIMTBRAUN | 1 | 51437291856 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather, expanded/vermilion-rot |
NABY=Yes |
|||||||||
| 01 | Side trim cover, leather, left | VERMILIONROT | 1 | 51437291863 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | VERMILIONROT | 1 | 51437291864 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather Nappa exp./elfenbein-white/blk. |
NAEP=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ELFENBEINWEISS | 1 | 51437429247 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ELFENBEINWEISS | 1 | 51437429248 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota/elfenbein-weiss" |
LCEX=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ELFENBEINWEISS | 1 | 51437291853 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ELFENBEINWEISS | 1 | 51437291854 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Leather "Dakota"/schwarz |
LCSW=Yes |
|||||||||
| 01 | Side trim cover, leather, left | SCHWARZ | 1 | 51437291851 | Shop at ECS Tuning | |||||
| 01 | Side trim cover, leather, right | SCHWARZ | 1 | 51437291852 | Shop at ECS Tuning | |||||
| For vehicles with Leather, Nappa expanded/cognac/black |
NARQ=Yes |
|||||||||
| 01 | Side trim cover, leather, left | COGNAC | 1 | 51437406347 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | COGNAC | 1 | 51437406348 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel, leather-covered and Leather "Dakota/elfenbein-weiss" |
S4NDA=Yes LCEX=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ELFENBEINWEISS | 1 | 51437291867 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ELFENBEINWEISS | 1 | 51437291868 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel, leather-covered and Leather "Dakota/zimt-braun" |
S4NDA=Yes LCEZ=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ZIMTBRAUN | 1 | 51437291869 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ZIMTBRAUN | 1 | 51437291870 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Alcantara/Leather Nappa/anthracite or Leather "Nappa/black" |
GPAT=Yes NASW=Yes |
|||||||||
| 01 | Side trim cover, leather, left | SCHWARZ | 1 | 51437291857 | Shop at ECS Tuning | |||||
| 01 | Side trim cover, leather, right | SCHWARZ | 1 | 51437291858 | Shop at ECS Tuning | |||||
| For vehicles with Instrument panel, leather-covered and Leather Nappa exp./elfenbein-white/blk. |
S4NDA=Yes NAEP=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ELFENBEINWEISS | 1 | 51437429249 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ELFENBEINWEISS | 1 | 51437429250 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel, leather-covered and Leather, expanded/vermilion-rot |
S4NDA=Yes NABY=Yes |
|||||||||
| 01 | Side trim cover, leather, left | VERMILIONROT | 1 | 51437291877 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | VERMILIONROT | 1 | 51437291878 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel, leather-covered and Leather, Nappa expanded/cognac/black |
S4NDA=Yes NARQ=Yes |
|||||||||
| 01 | Side trim cover, leather, left | COGNAC | 1 | 51437406349 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | COGNAC | 1 | 51437406350 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel, leather-covered and Leather "Dakota"/schwarz |
S4NDA=Yes LCSW=Yes |
|||||||||
| 01 | Side trim cover, leather, left | SCHWARZ | 1 | 51437291865 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | SCHWARZ | 1 | 51437291866 | Shop at ECS Tuning | |||||
| For vehicles with Contrast stitching and Instrument panel, leather-covered and Leather Nappa exp./elfenbein-white/blk. |
S4KSA=Yes S4NDA=Yes NAEP=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ELFENBEINWEISS | 1 | 51437429251 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ELFENBEINWEISS | 1 | 51437429252 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Instrument panel, leather-covered and Alcantara/Leather Nappa/anthracite or Leather "Nappa/black" |
S4NDA=Yes GPAT=Yes NASW=Yes |
|||||||||
| 01 | Side trim cover, leather, left | SCHWARZ | 1 | 51437291871 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | SCHWARZ | 1 | 51437291872 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Contrast stitching and Instrument panel, leather-covered and Leather "Dakota"/schwarz |
S4KSA=Yes S4NDA=Yes LCSW=Yes |
|||||||||
| 01 | Side trim cover, leather, left | SCHWARZ | 1 | 51437291879 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | SCHWARZ | 1 | 51437291880 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Contrast stitching and Instrument panel, leather-covered and Leather "Dakota/elfenbein-weiss" |
S4KSA=Yes S4NDA=Yes LCEX=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ELFENBEINWEISS | 1 | 51437291881 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ELFENBEINWEISS | 1 | 51437291882 | Shop at ECS Tuning | |||||
| For vehicles with Contrast stitching and Instrument panel, leather-covered and Leather, Nappa expanded/cognac/black |
S4KSA=Yes S4NDA=Yes NARQ=Yes |
|||||||||
| 01 | Side trim cover, leather, left | COGNAC | 1 | 51437406351 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | COGNAC | 1 | 51437406352 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Contrast stitching and Instrument panel, leather-covered and Leather "Dakota/zimt-braun" |
S4KSA=Yes S4NDA=Yes LCEZ=Yes |
|||||||||
| 01 | Side trim cover, leather, left | ZIMTBRAUN | 1 | 51437291883 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | ZIMTBRAUN | 1 | 51437291884 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Contrast stitching and Instrument panel, leather-covered and Leather, expanded/vermilion-rot |
S4KSA=Yes S4NDA=Yes NABY=Yes |
|||||||||
| 01 | Side trim cover, leather, left | VERMILIONROT | 1 | 51437291891 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | VERMILIONROT | 1 | 51437291892 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Contrast stitching and Instrument panel, leather-covered and Alcantara/Leather Nappa/anthracite or Leather "Nappa/black" |
S4KSA=Yes S4NDA=Yes GPAT=Yes NASW=Yes |
|||||||||
| 01 | Side trim cover, leather, left | SCHWARZ | 1 | 51437291885 | NoS | Shop at ECS Tuning | ||||
| 01 | Side trim cover, leather, right | SCHWARZ | 1 | 51437291886 | NoS | Shop at ECS Tuning | ||||
| 02 | Sheet metal screw | ST4,8X13 SW | 2 | 07119905832 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Clamp | 0,8MM | 6 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 04 | Fillister head screw | ISA | 2 | 07149116377 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Expanding nut | 2 | 51337008408 | $0.47 | Shop at ECS Tuning | |||||
| 06 | Clip blue | 1 | 07147129317 | $0.66 | Shop at ECS Tuning | |||||
| 06 | Clip, yellow | 1 | 51417007479 | $0.61 | Shop at ECS Tuning | |||||
| 06 | Clip Natur | 4 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 07 | Bump stop | 2 | 51317288462 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
