Headlining for BMW 6 Series F13 640dX (2015)

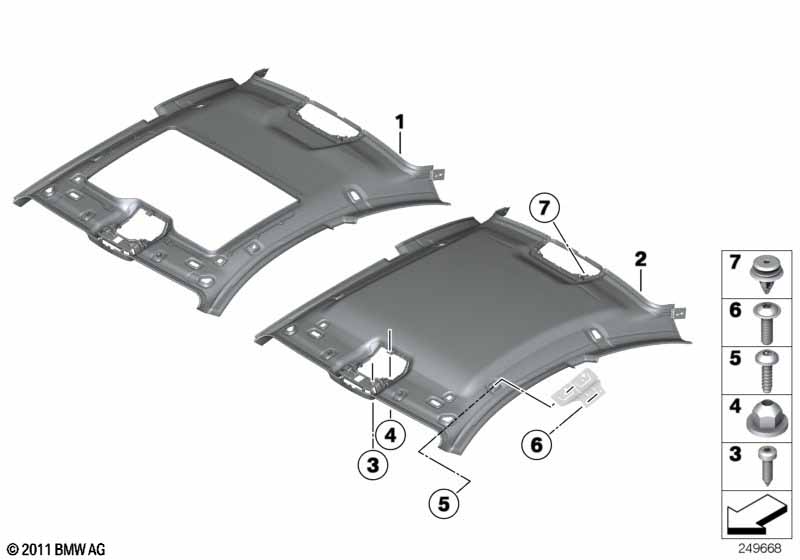

This Headlining technical drawing provides a detailed breakdown of the assembly for the 6 Series F13 640dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=Yes S775A=Yes |
|||||||||
| 01 | Molded headlining f sliding lifting roof | ANTHRAZIT | 1 | 51448051022 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headliner in Alcantara anthracite |
S403A=Yes S776A=Yes |
|||||||||
| 01 | Molded headliner,tilt sunroof, Alcantara | ANTHRAZIT | 1 | 51448050857 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and elfenbein-weiss/schwarz or elfenbein-weiss |
S403A=Yes S775A=No S776A=No EP=Yes EX=Yes |
|||||||||
| 01 | Molded headlining f sliding lifting roof | OYSTER | 1 | 51447271167 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and vermilion-rot or zimt-braun or cognac/schwarz or Black |
S403A=Yes S775A=No S776A=No BY=Yes EZ=Yes RQ=Yes SW=Yes |
|||||||||
| 01 | Molded headlining f sliding lifting roof | EVERESTGRAU | 1 | 51447271168 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite |
S403A=No S775A=Yes |
|||||||||
| 02 | Molded roof lining | ANTHRAZIT | 1 | 51448051020 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headliner in Alcantara anthracite |
S403A=No S776A=Yes |
|||||||||
| 02 | Molded headliner, Alcantara | ANTHRAZIT | 1 | 51448050851 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and elfenbein-weiss/schwarz or elfenbein-weiss |
S403A=No S775A=No S776A=No EP=Yes EX=Yes |
|||||||||
| 02 | Molded roof lining | OYSTER | 1 | 51447271676 | Shop at ECS Tuning | |||||
| For vehicles with Glass roof, electrical and Headlining anthracite and Headliner in Alcantara anthracite and vermilion-rot or zimt-braun or cognac/schwarz or Black |
S403A=No S775A=No S776A=No BY=Yes EZ=Yes RQ=Yes SW=Yes |
|||||||||
| 02 | Molded roof lining | EVERESTGRAU | 1 | 51447271679 | Shop at ECS Tuning | |||||
| 03 | Sheet-metal screw, silver | ST4,8X19 | 2 | 07119905134 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Plastic nut, black | M5 | 2 | 07147221224 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Sheet metal screw | ST4,8X9,5-F-ZNF | 2 | 07119905111 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Torx-bolt with washer | M5X16 | 4 | 51179158844 | Shop at ECS Tuning | |||||
| 07 | Clip Natur | 2 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
