Underhood shield for BMW 8 Series G16 Gran Coupé 840dX (2024)

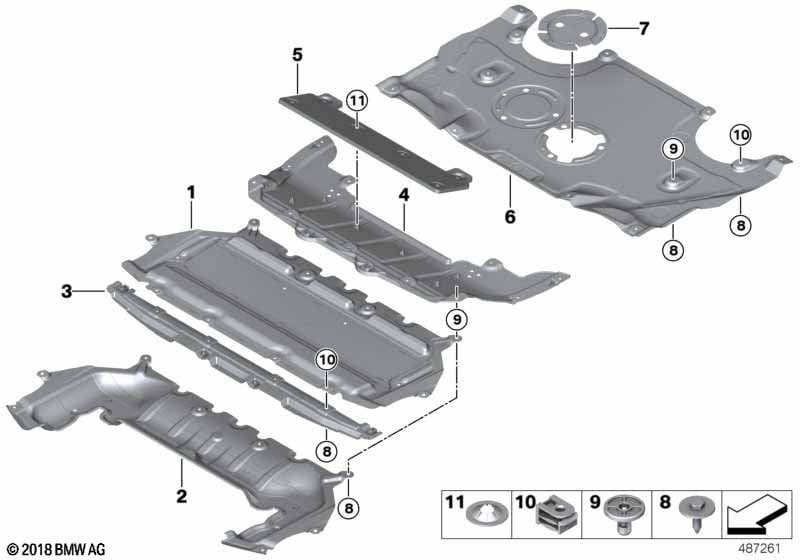

This Underhood shield technical drawing provides a detailed breakdown of the assembly for the 8 Series G16 Gran Coupé 840dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2024.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with M Aerodynamics package |
S715A=No |
|||||||||
| 01 | Engine encapsulation, front | 1 | 51757340168 | Shop at ECS Tuning | ||||||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Engine encapsulation, front | 1 | 51757340168 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Adapter underhood shield | -M- | 1 | 51758075271 | Shop at ECS Tuning | |||||
| For vehicles with Motorsport engineering package or M Aerodynamics package |
S33TA=Yes S715A=Yes |
|||||||||
| 03 | Adapter underhood shield | -M- | 1 | 51758075271 | NoS | Shop at ECS Tuning | ||||
| 04 | Cover for steering gear | AWD | 1 | 51757363731 | Shop at ECS Tuning | |||||
| 05 | Absorber for steering gear cover | 1 | 51757372272 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | TS5X20 SW8 D=22 | 12 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | TS5X20SW10 D=22 | 12 | 01/2021 | 07149481168 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | TS5X20SW10 D=22 | 12 | 01/2021 | 07142644722 | ENDED | Shop at ECS Tuning | |||
| 09 | Expanding nut | L= 19.9MM | 12 | 07147306224 | Shop at ECS Tuning | |||||
| 10 | C-clip for plastic nut | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 11 | Spring nut | 6 | 22326790073 | Shop at ECS Tuning | ||||||
Notes
- NoS = No Stock (Part centrally not stocked)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series G16 Gran Coupé 840dX Underhood shield?
- This technical diagram illustrates the Underhood shield within the Vehicle trim group for the 8 Series G16 Gran Coupé 840dX produced during 2024. It provides a detailed exploded view of the components, identifying key parts such as the Engine encapsulation, front (Part #51757340168).
- Which models use the hardware listed in this Underhood shield?
- The hardware and components featured in the Underhood shield are specific to the 8 Series G16 Gran Coupé 840dX produced during 2024. These technical specifications ensure that parts like the Engine encapsulation, front (51757340168) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Underhood shield assembly?
- Each item in the Underhood shield corresponds to the numbered list below the illustration. For the 8 Series G16 Gran Coupé 840dX, you can identify the Engine encapsulation, front by locating its position on the schematic, which then links to the official BMW part number 51757340168 for the Vehicle trim section.
