Cover door sill / wheel arch for BMW 3 Series F30 320d (2015)

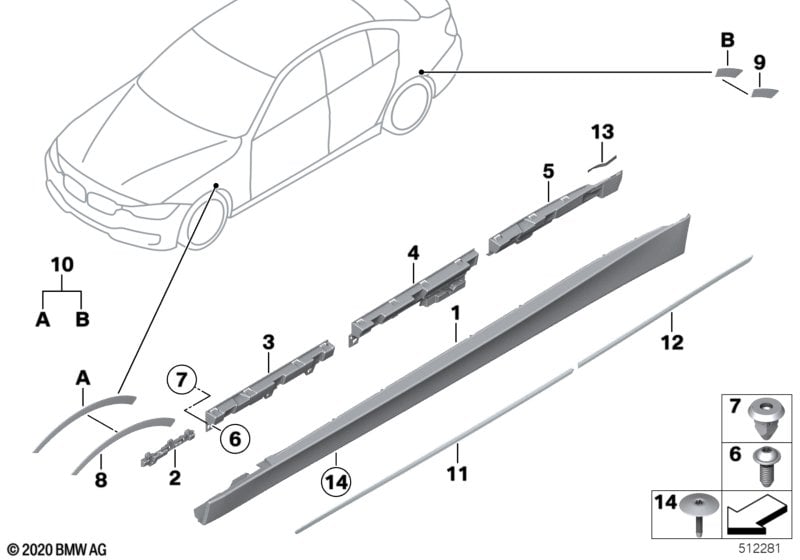

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| 01 | Rocker panel trim, primed, left | 1 | 51777312751 | Shop at ECS Tuning | ||||||
| 01 | Rocker panel trim, primed, right | 1 | 51777312752 | Shop at ECS Tuning | ||||||
| 02 | Supporting ledge left | 1 | 51777240873 | Shop at ECS Tuning | ||||||
| 02 | Supporting ledge right | 1 | 51777240874 | Shop at ECS Tuning | ||||||
| 03 | Supporting ledge left | 1 | 51777256915 | Shop at ECS Tuning | ||||||
| 03 | Supporting ledge right | 1 | 51777256916 | Shop at ECS Tuning | ||||||
| 04 | Supporting ledge left | 1 | 51777256917 | Shop at ECS Tuning | ||||||
| 04 | Supporting ledge right | 1 | 51777256918 | Shop at ECS Tuning | ||||||
| 05 | Supporting ledge left | 1 | 51777256919 | Shop at ECS Tuning | ||||||
| 05 | Supporting ledge right | 1 | 51777256920 | Shop at ECS Tuning | ||||||
| 06 | Fillister head screw | 2 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| 07 | Expanding nut | 8X8 MM | 2 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Abrasion-resistant film | 2 | 51777416285 | Shop at ECS Tuning | ||||||
| 14 | Securing pin | 22 | 07147296886 | Shop at ECS Tuning | ||||||
