Sound insulating rear for BMW 3 Series G20 Sedan 330e (2022)

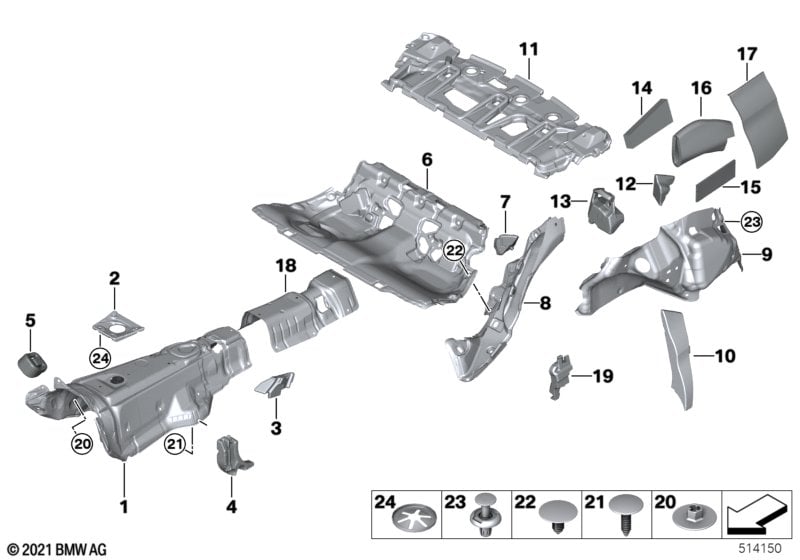

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating tunnel front | 1 | 51487446500 | NoS | Shop at ECS Tuning | |||||
| 02 | Sound insulation, condensation drain | 1 | 51487445272 | NoS | Shop at ECS Tuning | |||||
| 03 | Noise insulation, A-pillar, upper left | 1 | 51487469817 | NoS | Shop at ECS Tuning | |||||
| 03 | Noise insulation, A-pillar, upper right | 1 | 51487469818 | NoS | Shop at ECS Tuning | |||||
| 04 | Sound insulation, A-pillar, lower | RHD | 1 | 51487445265 | NoS | Shop at ECS Tuning | ||||
| 05 | Sound insulat., accelerator pedal mod. | RHD | 1 | 51487473967 | NoS | Shop at ECS Tuning | ||||
| 06 | Sound insulation floor rear | 1 | 51477445250 | NoS | Shop at ECS Tuning | |||||
| 08 | Sound insulating wheel housing rear left | 1 | 05/2023 | 51487445269 | NoS | Shop at ECS Tuning | ||||
| 08 | Sound insulating wheel housing rear rig. | PHEV | 1 | 51487465556 | NoS | Shop at ECS Tuning | ||||
| 09 | Sound insulation trunk right | 1 | 51477450054 | NoS | Shop at ECS Tuning | |||||
| 09 | Sound insulation trunk left | 1 | 51477451110 | NoS | Shop at ECS Tuning | |||||
| 10 | Sound insulation, left C-pillar | 1 | 51487438307 | NoS | Shop at ECS Tuning | |||||
| 10 | Sound insulation, right C-pillar | 1 | 51487438308 | NoS | Shop at ECS Tuning | |||||
| 11 | Sound insulation for upper partit.trunk | 1 | 51487445271 | NoS | Shop at ECS Tuning | |||||
| 11 | Sound insulation for upper partit.trunk | 1 | 51487942124 | NoS | Shop at ECS Tuning | |||||
| 12 | Noise insulation, firewall, upper left | 1 | 51487438309 | NoS | Shop at ECS Tuning | |||||
| 12 | Noise insulation, firewall, upper right | 1 | 51487438310 | NoS | Shop at ECS Tuning | |||||
| 19 | Crashpad door top left | 1 | 51719448117 | NoS | Shop at ECS Tuning | |||||
| 19 | Crashpad door top right | 1 | 51719448118 | NoS | Shop at ECS Tuning | |||||
| 20 | Clip nut | 5X9 D=30 SW10 | 11 | 07147261260 | Shop at ECS Tuning | |||||
| 21 | Plug-in retainer | 1 | 07147283890 | Shop at ECS Tuning | ||||||
| 22 | Clip | D=30MM | 5 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 23 | Expanding rivet | 2 | 07147401727 | Shop at ECS Tuning | ||||||
| 24 | Axial securing clip | 5,8MM | 4 | 07147295776 | Shop at ECS Tuning |
